products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
3D Aluminum Architectural Cladding
Created with Pixso.

Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls

Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls

Brand Name: M-CITY
Model Number: MCT- 3D aluminum facades
MOQ: 80square meters
Price: USD25-USD55/square meter
Supply Ability: 60000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Standard Size:
1200x1200mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
3d Metal Cladding
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
60000sq.m
Highlight:

architectural metal cladding panels 3d

,

3d shape metal cladding aluminum

,

2mm 3d metal cladding aluminum

Product Description

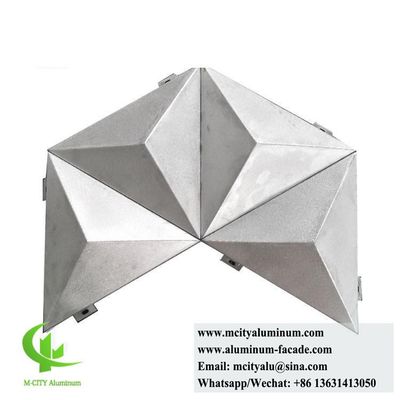

Architectural Metal Cladding Panels with 3D Shapes
Premium architectural metal cladding panels featuring innovative 3D shapes designed specifically for exterior wall applications. These panels combine aesthetic appeal with structural integrity for modern building facades.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 0 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 1 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 2 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 3 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 4 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 5 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 6 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 7 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 8 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 9 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 10 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 11 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 12

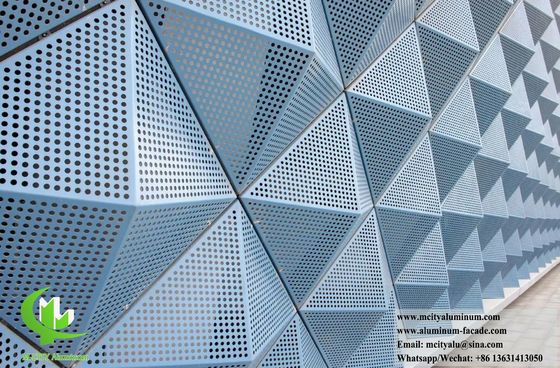

3D Facade Design Metal Cladding
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 13 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 14
Perforated Aluminum Solid Panels
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 15 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 16
Aluminum Cladding Installation Guide
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 17 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 18
Corrugated Perforated Screen Aluminum Sheet
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 19
CNC Engraved Metal Facade Assembly
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 20
Exterior Aluminum Decorative Panels
Round hole perforation designs for enhanced aesthetic appeal and functionality.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 21

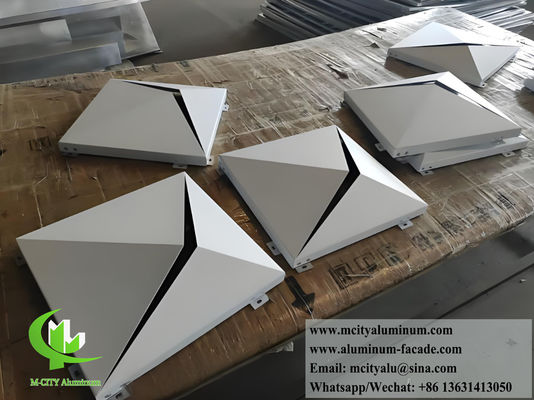

3D Metal Facade Cladding Details
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 22
Custom Manufacturing Capabilities
As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers supported by advanced CNC facilities. We produce aluminum panels according to customer specifications for dimensions, shapes, structures, colors, and competitive budgets. Our engineers can visit project sites to measure installation specifications and create detailed shop drawings to ensure smooth installation processes.
All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only frame construction, basic bolts, and sealants to finish panel gaps - making building envelope and decoration straightforward and efficient.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 23
Product Specifications
Our metal cladding panels are manufactured from high-quality, high-strength aluminum alloy sheets. Standard thickness options include 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm with maximum length up to 6000mm, using 3003-H14 or 1100-H14 aluminum alloy series.
The panel system consists of panel, reinforce bar, and bracket components. Corner brackets can be directly stamped from the panel or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, and ensures long-term flatness with excellent wind pressure and earthquake resistance. High-efficiency sound insulation materials can be installed inside panels when required.
Manufacturing Facility
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 24
Global Shipping
Aluminum cladding containers are shipped by sea to destinations worldwide.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 25
M-City Aluminum factory produces various metal facade panels with perforation designs or laser cut patterns. We welcome project requirements for custom facade designs.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 26
3D Metal Facade Wall Cladding Details
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 27
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.
Can you accept custom designs?
Yes. Size, color, patterns, and designs can be fully customized according to your project requirements.
What is your minimum order quantity?
We accept small orders with a minimum order quantity of 80 square meters.
What is your delivery time?
Production is typically completed within 30 days after receiving deposit payment.
Contact Information
WhatsApp: +86 13631413050
Email: mcityalu@sina.com
Any patterns or designs can be manufactured. Please provide drawings or pictures for custom projects.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 28
M-CITY Metal Aluminum Facade Cladding Specifications
Aluminum panels are manufactured from Aluminum alloy 3003 series sheets. As curtain wall systems, they provide wall protection and non-lighting wall solutions, replacing traditional mosaic and sandblasting facades. The light yet strong characteristics make these panels ideal for high-rise buildings where various loads, particularly wind pressure, are constant concerns. Unlike mosaic materials that may fall off under high wind pressure and deformation, aluminum panels maintain structural integrity and are widely used in tall building applications.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 29
Powder Coated Aluminum Facades
Aluminum hollow panels are suitable for facades, fences, canopies, ceilings, screens, windows, and various architectural applications. Choose patterns from our catalog or provide custom drawings and pictures - our team will create detailed designs for your approval.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 30
Advanced CNC Cutting Technology
With imported CNC cutting machines, punching machines, professional software, experienced designers, and extensive global project experience, you can trust M-City Aluminum with your architectural projects.
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 31 Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 32
To meet individual customer requirements, you can select patterns directly from our renderings or provide custom pattern designs. Our goal is to create the best customized products for each client. Aluminum hollow panel sizes can be adjusted - not simply scaled, but with design elements reconfigured according to customer dimensions. Our standard size is 1200x2400mm, with larger sizes achieved through combination.
Perforated Aluminum Metal Cladding Project Reference
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 33
Fence Decoration Applications
Powder Coated 3D Aluminum Cladding Panels with Customizable Designs and Perforated Patterns for Exterior Walls 34
