| Brand Name: | M-CITY |
| Model Number: | MCT-3d panel |
| MOQ: | 80square meters |
| Price: | USD30-USD100/Sq.m |
| Supply Ability: | 30000sq.m |

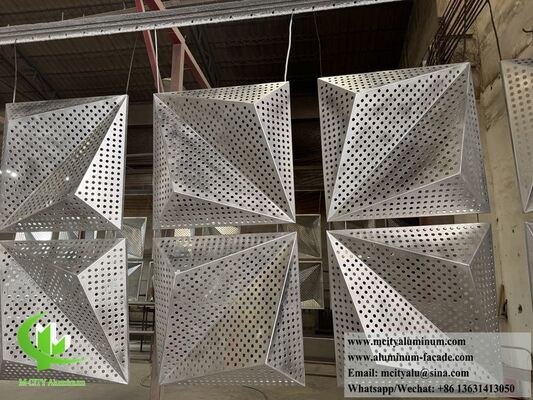

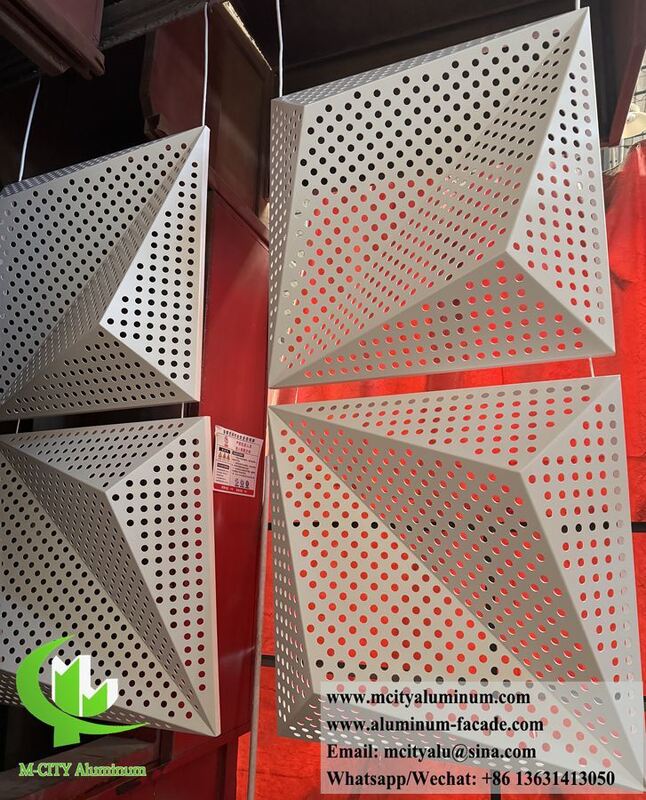

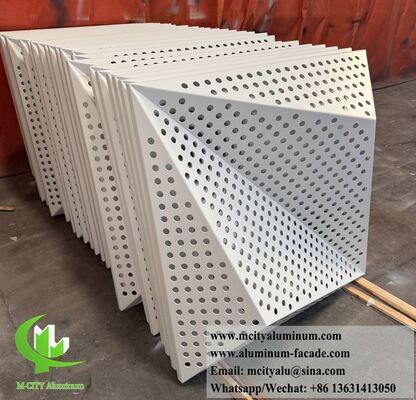

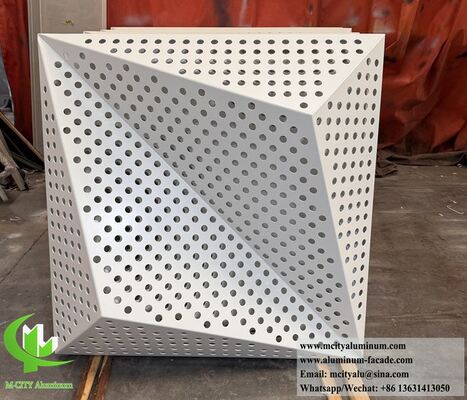

Elevate your building design with our Custom 3D Perforated Aluminum Facade Panels. Engineered for modern architectural cladding, these dynamic volumetric panels combine innovative geometric depth, intricate perforation patterns, and superior structural endurance.
Whether designing a high-profile commercial exterior, an expressive ventilated rainscreen facade, or an integrated solar shading system, our 3D geometric metal cladding transforms conventional building envelopes into bold architectural statements.
Geometric & Volumetric Depth: Precision CNC punching and hydraulic folding create striking 3D spatial patterns, geometric, and multifaceted light-and-shadow effects.
Custom Perforations & Patterns: Fully customizable perforation ratios, hole diameters, and decorative patterns to meet precise airflow, acoustics, and privacy needs.
Engineered Durability & Weather Resistance: Coated with high-performance PVDF (Kynar 500) or powder coatings, providing exceptional corrosion resistance, color retention, and defense against UV/harsh environments.
Lightweight & High Structural Strength: Manufactured from high-tensile 3003-H24 or 5052-H32 aluminum alloys, delivering high wind-load resistance while minimizing structural load.
Functional Sun-Shading & Ventilation: Enhances energy efficiency by offering optimal solar shading, natural daylight control, and ventilation for modern green building projects.
| Specification | Standard Options & Custom Capabilities |
| Material Grade | Aluminum Alloy 3003-H24 / 5052-H32 / 1100 |
| Panel Thickness | 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm (Customizable) |
| Panel Dimensions | Max Width: 1,800 mm | Max Length: 6,000 mm (Custom sizes available) |
| Surface Finish | PVDF Coating (AkzoNobel / PPG), Powder Coating, Anodized, Wood Grain |
| Color Options | Full RAL Color Range, Metallic Colors, Custom Color Matching |
| Perforation Ratio | 10% – 60% Open Area (Custom CNC designs supported) |
| Shape/Geometry | Diamond, Wave, Triangular, 3D Parametric Folding |
| Installation System | Integrated Aluminum Carrier Frames, Subframe Brackets & Screws |
Exterior Building Facades & Rainscreen Cladding (Commercial Complexes, Shopping Malls, Hotels)
Architectural Sun-Shading Screens & AC Louver Enclosures
Interior Feature Walls, Ceiling Systems & Decorative Partition Panels
Auto 4S Shops, Showrooms, Transportation Hubs & Institutional Buildings
We provide end-to-end B2B solutions tailored for international facade contractors and architectural firms:
CAD/BIM Shop Drawing Support: Full technical assistance in structural detailing and bracket integration.
Custom Prototyping: Pre-production physical sampling for design verification and client presentation.
Export-Grade Heavy Packaging: Customized wooden crate packaging and protective PE film to ensure safe container delivery worldwide.
Looking for tailored technical solutions or project-specific pricing?
📩 Email: mcityalu@sina.com
📞 Phone / WhatsApp: 0086 13631413050
🌐 Website: www.mcityaluminum.com
