3D Aluminum Architectural Cladding
Created with Pixso.

3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors

3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors

Brand Name: M-CITY
Model Number: MCT- architectural 3D facades
MOQ: 80square meters
Price: USD25-USD55/square meter
Supply Ability: 60000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Max. Size:
1600x4000mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
Privacy Screen Metal
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
60000sq.m
Highlight:

3D aluminum metal cladding facade

,

laser cut aluminum wall decoration

,

architectural exterior metal cladding screen

Product Description

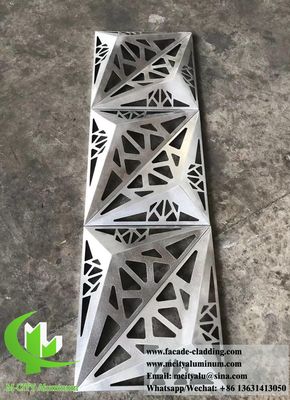

3D Aluminum Laser Cut Facade Panels
Custom architectural metal facades featuring precision laser-cut aluminum screens in 3D shapes for exterior wall cladding and building decoration.
Product Gallery
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 0 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 1 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 2 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 3 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 4 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 5 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 6 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 7 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 8 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 9 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 10 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 11 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 12 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 13 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 14

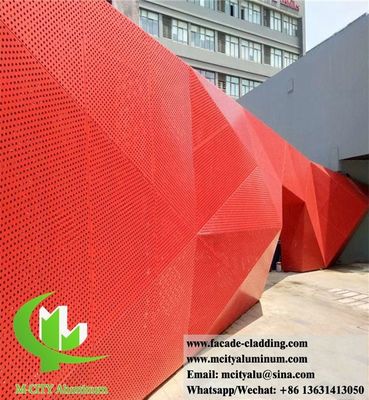

3D Facade Design Metal Cladding
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 15 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 16

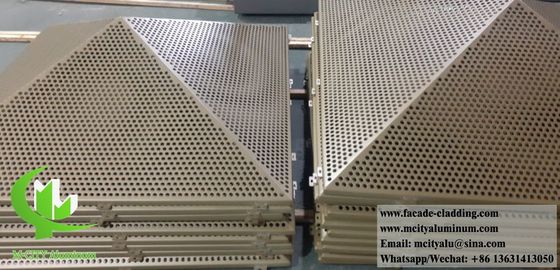

Perforated Aluminum Solid Panels
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 17 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 18
Installation Guide
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 19 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 20
Corrugated Perforated Screen Aluminum Sheet
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 21
CNC Engraved Metal Facade Assembly
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 22
Exterior Aluminum Decorative Panel with Round Holes
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 23

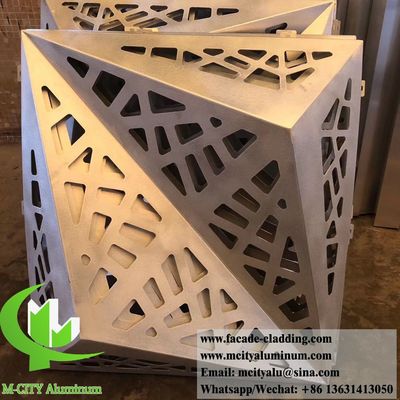

3D Facade Design Details
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 24
Custom Manufacturing Capabilities
As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers with advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets.
We provide comprehensive support including site measurement by our engineers, shop drawing preparation, and technical assistance for smooth installation.
Easy Installation Process
All aluminum panels are prefabricated according to your designs and drawings. Installation requires only building a frame, preparing bolts, and using sealants to finish gaps between panels. This makes building envelope and decoration an efficient process.
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 25
Technical Specifications
Our metal cladding panels are manufactured from high-quality, high-strength aluminum alloy sheet with standard thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm with maximum length of 6000mm, using aluminum alloy series 3003-H14 or 1100-H14.
Each panel consists of a main panel, reinforce bar, and bracket. The corner bracket can be directly stamped from the panel, bent and formed, or riveted on small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquakes.
For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.
Manufacturing Facility
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 26
Global Shipping
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 27
M-City Aluminum factory produces all types of metal facade panels with perforation designs or laser cut designs. We welcome your facade design requirements.
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 28
3D Metal Facade Wall Cladding Details
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 29
Frequently Asked Questions
  • Are you a trading company or factory?
    We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.
  • Can you accept our own designs?
    Yes. Size, color, patterns, and designs can be customized according to your project requirements.
  • What is your minimum order quantity?
    We accept small orders with a minimum of 80 square meters.
  • What is the delivery time?
    Production is completed within 30 days after receiving deposit.
Contact Information
WhatsApp: +86 13631413050
Email: mcityalu@sina.com
Any patterns or designs can be manufactured. You can provide drawings or pictures for customization.
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 30
M-CITY Aluminum Facade Cladding Specifications
Aluminum panels are made from Aluminum alloy 3003 series. As a curtain wall system, they are used for wall protection and non-lighting walls, replacing mosaic and general sandblasting facades. Their light texture and excellent strength characteristics provide advantages for high-rise buildings, where various loads, particularly wind pressure, are constant concerns.
Traditional mosaic materials can easily fall off due to high wind pressure and deformation, while aluminum panels maintain structural integrity under these conditions, making them ideal for high-rise building applications.
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 31
Application Areas
Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and various architectural applications. You can select patterns from our catalog or send drawings/pictures for custom design.
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 32
Advanced Manufacturing Equipment
We utilize imported CNC cutting machines, punching machines, professional software, and experienced designers. With numerous completed projects worldwide, you can trust us with your architectural requirements.
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 33 3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 34
Customization Options
To meet individual customer requirements, you can select patterns from our renderings or provide your favorite patterns for customization. Our goal is to create the best products for each client. Aluminum hollow panel sizes can be adjusted - not simply zoomed, but with design elements reconfigured according to customer dimensions.
Our standard size is 1200x2400mm. Larger sizes require panel combination.
Project References
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 35
Fence Decoration Applications
3D Metal Cladding Aluminum Facade Panel with Laser Cut Design and Powder Coated Customizable RAL Colors 36
