Perforated Aluminum Facade Panel with PVDF Coating and 3003 Aluminum Alloy for Customized Exterior Wall Cladding

Name: Perforated Aluminum Facade Panel with PVDF Coating and 3003 Aluminum Alloy for Customized Exterior Wall Cladding
Brand: Foshan M-CITY Aluminum Co., Ltd.
SKU: Aluminum wall panel
Price: 55.00 USD
Availability: InStock

Brand Name:	M-City
Model Number:	Aluminum wall panel
MOQ:	100sq.m
Price:	USD30-80 per sqaure meter
Payment Terms:	T/T
Supply Ability:	50000square meter per month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Size:

Customized

Surface Finish:

Powder Coated, PVDF

Material:

3003 Aluminum Alloy

Packaging Details:

Protect film + bubble film

Supply Ability:

50000square meter per month

Highlight:

Cladding Decoration perforated Aluminum Panel

PVDF Coating perforated Aluminum Panel

Exterior perforated Aluminum Wall Panel

Product Description

Custom Perforated Aluminum Wall Panels with PVDF Coating

As a factory-direct manufacturer, M-City Aluminum provides high-performance aluminum wall panels engineered for architectural excellence and custom design integration.

Material Specifications

Fabricated from 3003-H14 aluminum alloy compliant with ASTM B209 standards, offering:

Exceptional structural integrity (tensile strength: 276-310 MPa)
Superior corrosion resistance for indoor/outdoor environments
Lightweight profile (density: 2.7 g/cm³) reducing structural load

Application Scope

Our panels are specified for diverse architectural applications:

Exterior facades: Curtain walls, rainscreens, and cladding systems
Interior finishes: Feature walls, retail accents, and partition systems
Specialized environments: Healthcare facilities and acoustic solutions

Customization Capabilities

End-to-end factory integration for project-specific requirements:

Dimensions: Custom sheet sizes up to 6000mm × 1500mm
Thickness: 2.0-5.0mm based on structural requirements
Finishes: Powder coating, anodizing, wood-grain sublimation
Profiles: Flat, curved, perforated, and 3D formed options

Surface Treatments: Durability Meets Customization

Advanced surface treatments optimized for outdoor exposure and aesthetic appeal:

PVDF Coating

High-performance Kynar 500® resins provide UV resistance (3,000+ hours accelerated weathering) and superior color retention. Available in 200+ RAL/Pantone shades.

Powder Coating

Eco-friendly, zero-VOC finish with scratch resistance (2H pencil hardness). Ideal for LEED-certified sustainable building projects.

Anodizing

Natural oxide layer (10-25μm) enhances corrosion resistance with sleek industrial finishes. Perfect for coastal applications and modern architectural designs.

Core Functional Advantages

Light & Shadow Control: Perforations reduce glare and cut indoor cooling loads by 25%-35% while creating dynamic lighting effects
Ventilation & Acoustics: Open structure promotes airflow and reduces external noise by 15-20 dB
Weather Resistance: Withstands extreme temperatures (-40°C to 80°C) and salt spray (ASTM B117 tested 1,000+ hours)
Fire Safety: Class A fire resistance (ASTM E84/GB 8624-2012) with flame spread index <10

Sustainability & Environmental Benefits

Aluminum's 100% recyclability (95% less energy than primary production) makes our panels a sustainable choice. Manufacturing follows ISO 14001 standards with closed-loop recycling and solar-powered production. Contributes to LEED and BREEAM certification credits.

Real-World Applications

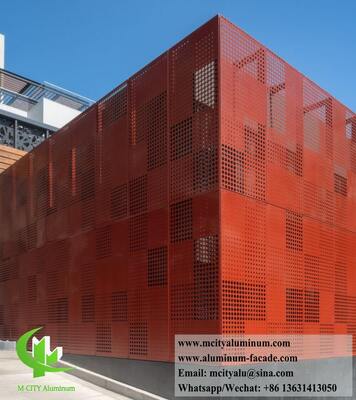

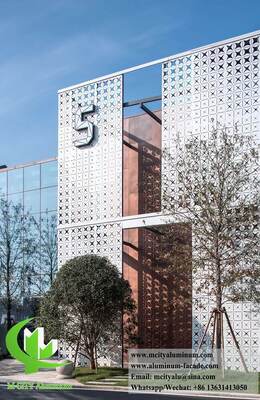

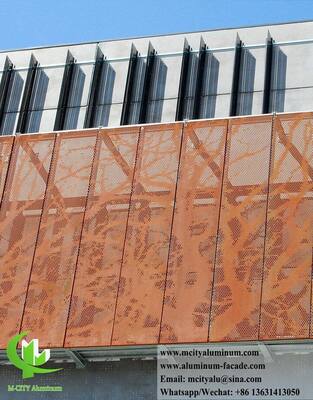

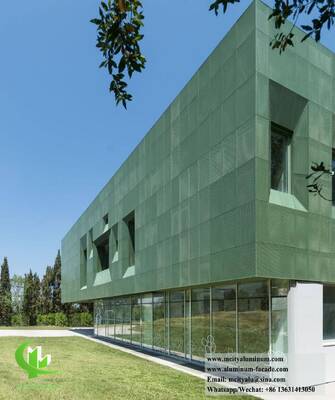

Our perforated aluminum panels have enhanced projects worldwide:

Singapore cultural center with geometric patterns mimicking local flora
New York retail flagship with branded perforations for enhanced visibility
Australian coastal residential tower balancing views, privacy, and corrosion resistance

Project Support: BIM 3D modeling, installation guides, contractor training, and comprehensive warranties (10-year for PVDF-coated panels, 5-year for powder-coated/anodized panels).

Transform your building's identity with precision-engineered perforated aluminum facade panels that combine functionality with architectural innovation.
