PVDF Coated Perforated Aluminum Facade Panel in 1200x2400mm Size with Customizable RAL Colors

PVDF Coated Perforated Aluminum Facade Panel in 1200x2400mm Size with Customizable RAL Colors

Brand Name:	M-CITY
Model Number:	MCT-metal screen
MOQ:	80square meters
Price:	USD25-USD55/square meter
Supply Ability:	60000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1200x2400mm

Aluminum Thickness:

3mm,2mm, 2.5mm, 4mm To 10mm

Surface Treatment:

Powder Coated, Pvdf Paint, Wood Grain

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1600x4000mm

Contact Email:

Mcityalu@163.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Perforated Metal Facades

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

60000sq.m

Highlight:

perforated aluminum cladding panels

PVDF coated exterior wall panels

aluminum facade sheets with warranty

Product Description

Exterior Wall Cladding Panel Aluminum Sheet Perforated Panels With PVDF Coating

3D Facade Design Metal Cladding

Perforation Aluminum Solid Panels

Installation Guide for Aluminum Cladding

Corrugated Perforated Screen Aluminum Sheet

CNC Engraved Metal Facade Aluminum Sheet Assembly

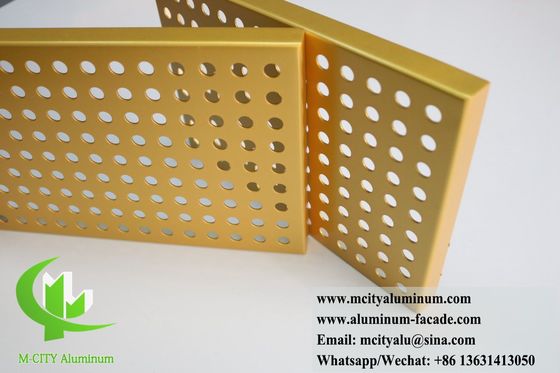

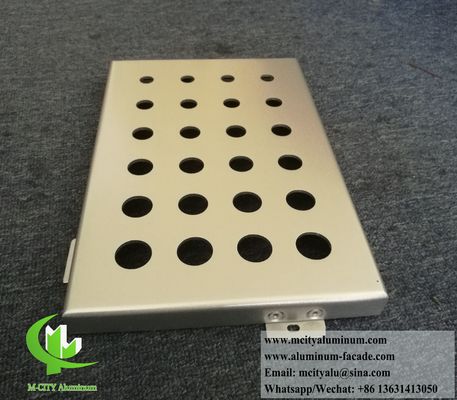

Exterior Aluminum Decorative Panel with Round Holes Perforation

3D Facade Design Metal Clad Aluminum Facades Details

M-City Aluminum is a professional manufacturer with an excellent design team, skilled fabrication workers, and advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets. Our engineers can visit sites to measure installation specifications and create shop drawings to ensure smooth installation.

All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only building a frame, preparing bolts, and using sealants to finish gaps between panels. This makes building envelope and decoration straightforward and efficient.

Our metal cladding panels are made from high-quality, high-strength aluminum alloy sheets. Common thicknesses include 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm, maximum length is 6000mm, using aluminum alloy series 3003-H14 or 1100-H14. The system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, flatness, wind pressure resistance, and earthquake resistance. For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.

M-City Aluminum Factory

Global Shipping

M-City Aluminum factory produces various metal facade panels with perforation or laser cut designs. We welcome your facade design requirements and can create custom solutions for your projects.

3D Metal Facade Wall Cladding Details

Frequently Asked Questions

Are you a trading company or factory?
We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.

Can you accept our own designs?
Yes. Size, color, patterns, and designs can be customized according to your project requirements.

What is your minimum order quantity?
We accept small orders with a minimum of 80 square meters.

What is the delivery time?
Production is completed within 30 days after receiving the deposit.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns or designs can be manufactured. You can provide us with drawings or pictures for custom production.

M-CITY Metal Aluminum Facade Cladding Specifications

Aluminum panels are made from Aluminum alloy 3003 series. As a curtain wall system, they are used for wall protection and non-lighting walls, replacing mosaic and general sandblasting facades. Their light weight and excellent strength characteristics make them ideal for high-rise buildings, where they withstand various loads, particularly wind pressure. Unlike mosaic materials that can easily fall off due to wind pressure and deformation, aluminum panels offer unique advantages for high-rise building applications.

Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and more. You can choose patterns from our catalog or send us drawings or pictures for custom design.

Advanced CNC Cutting Technology

With imported CNC cutting machines, punching machines, professional software, experienced designers, and global project experience, you can trust us with your facade projects. Our expertise ensures quality results for your architectural needs.

To meet individual customer requirements, you can select patterns from our renderings or provide your favorite patterns for customization. Our goal is to create the best products for each customer. Aluminum hollow panel sizes can be adjusted—not simply zoomed, but redesigned according to customer dimensions while maintaining design elements. Our standard size is 1200x2400mm; larger sizes require panel combination.

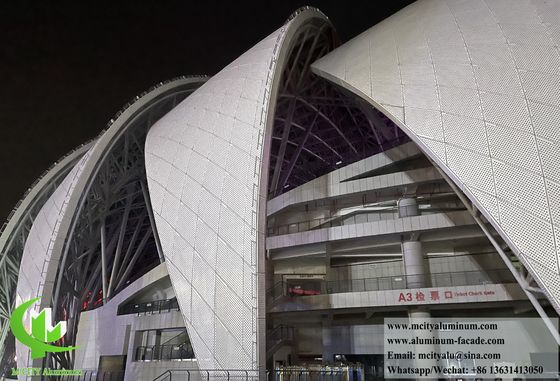

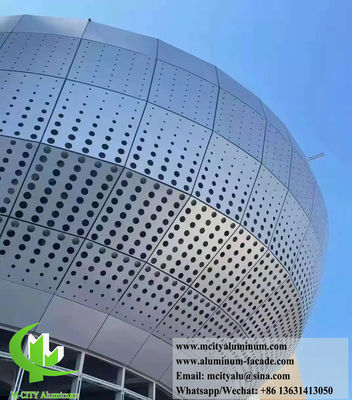

Perforated Aluminum Metal Cladding Project Reference

Fence Decoration Applications
