PVDF Coated Perforated Aluminum Facade Panel with Customizable Patterns in 1000x2000mm Size

Brand Name:	M-CITY
Model Number:	MCT-P02
MOQ:	80square meters
Price:	USD30-USD100/Sq.m
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

1.5-10mm

Surface Treatment:

Powder Coated, Pvdf Paint

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen

Max. Size:

1500x5000mm

Contact Email:

Mcityalu@sina.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Aluminum Perforated Panel,aluminum Cladding, Facade, Perforated Sheet

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

architectural perforated aluminium panels facade

pvdf perforated aluminium panels facade

perforated aluminium panels facade

Product Description

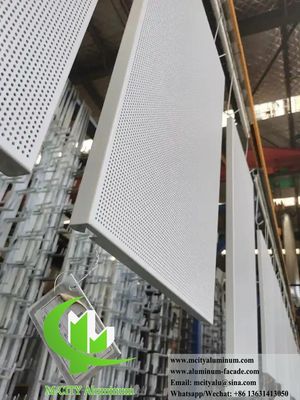

Architectural Metal Screen With Perforation Pattern PVDF Coating

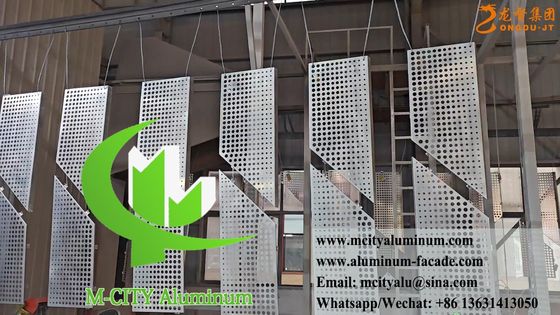

Perforated Metal Aluminum Facade Cladding

Solid Aluminum Panel Projects

About M-City Aluminum Factory

Foshan M-CITY Aluminum Co., Ltd is the leading professional manufacturer and exporter for architectural aluminum facade cladding in China. Established in 2008, we specialize in the manufacturing, design and sales of aluminum cladding, aluminum louver and decorative aluminum panels for building facades.

We have a senior design team with more than 25 years of site experience. We provide skilled technology support and samples for your project in time.

Main Products

Aluminum facade, aluminum cladding panel, perforated facade, laser cutting aluminum sheet, aluminum solid panel, aluminum curtain wall, etc.

3D Design Laser Cut Aluminum Facade Projects

Frequently Asked Questions

Are you a trading company or factory?

We are 100% professional manufacturer with more than 50 producing machines and over 100 staff members.

Can you accept our own designs?

Yes. Size, color, patterns/designs can be customized as per your project requirements.

What is your MOQ order?

We accept small orders with a minimum order quantity of 80 square meters.

What is the delivery time?

Orders are completed within 30 days after receiving the deposit.

Solid Aluminum Panels & Laser Cut Panels Description

The surface of solid aluminum panels are generally treated with fluorocarbon coating. Adopting fluorocarbon spraying treatment, the coating is divided into two coats, three coats or four coats. Fluorocarbon coating has excellent corrosion resistance and weather resistance properties against acid rain, salt spray and various air pollutants.

Fluorocarbon coating and powder coating has excellent cold and heat resistance properties that can resist strong ultraviolet radiation, maintaining color vibrancy without fading for extended periods.

Long Service Life Features

Aluminum cladding has good rigidity, light weight, high strength, and excellent corrosion resistance
Fluorocarbon paint maintains color for up to 25 years without fading
Aluminum solid panels are not easily stained and easy to maintain
Installation and construction of aluminum solid panels is convenient and fast
Solid aluminum panels can be recycled and reused, making them environmentally friendly

The material offers unique texture, rich and durable colors, and diverse shape appearances. It can be perfectly combined with glass curtain wall materials and stone. Its excellent appearance and qualities make it favored by building owners worldwide.

The light weight is only one-fifth that of marble and one-third compared to glass curtain walls, significantly reducing structural and foundation loading of buildings. This results in low maintenance costs and high performance ratio.

Laser Cut Patterns Choice

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns/design can be made - you can provide us with drawings or pictures.

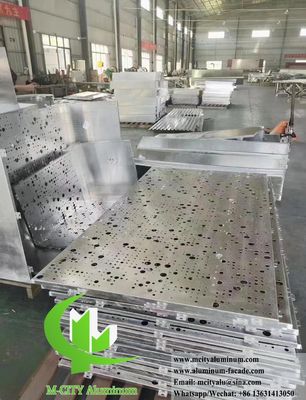

M-CITY Perforated Laser Cut Aluminum Sheet Description

Aluminum panels are made of Aluminum alloy 1100 series (aluminum sheet). As a kind of curtain wall, they are used for wall protection and non-lighting walls, replacing mosaic and general sandblasting facades. With light texture and good strength characteristics, they offer advantages for high-rise buildings where various loads, especially wind pressure, are constant concerns.

Materials	Aluminum alloy 1100 / 3003 series
Standard Size	1000mm x 2000mm
Other Size	Max. Width: 1200mm, Max. Length: 5000mm
Thickness	1mm - 10mm
Surface Treatment	Powder coated, PVDF paint
Color	Any RAL colors, wooden grain color, stone color, etc.
Coating	Akzo Nobel, PPG, etc.
Application	Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers, etc.
Patterns	Any patterns can be made - just supply us with the drawing or picture

Painting Laser Cut Aluminum Panel

Aluminum hollow panels are used for facade, fence, canopy, ceiling, screen, window applications. You can choose patterns from our catalogue or send us drawings or pictures - we can create designs for you.

CNC Cutting Machine Capabilities

With imported CNC cutting machines, punching machines, professional software and designers, and extensive project experience worldwide, you can feel confident when sending projects to us.

To meet individual customer requirements, you can select patterns from our renderings directly or choose your favorite patterns for customization. Our target is to customize the best products for each customer. Aluminum hollow panels can be adjusted in size - not just simple zooming, but adjusting design elements according to customer specifications. Our standard size is 1200x2400mm; larger sizes require combination.

Aluminum Decorative Panel Project Reference

For Fence Decoration

Download our catalogue to choose more designs/patterns.

We also manufacture aluminum louvers. Please contact us if you need them - we will try our best to support your project.
