Round Holes Perforation Design Powder Coated Aluminum Wall Cladding with Customizable RAL Colors

Round Holes Perforation Design Powder Coated Aluminum Wall Cladding with Customizable RAL Colors

Brand Name:	M-CITY
Model Number:	MCT-Perforated metal facade
MOQ:	80square meters
Price:	USD25-USD55/square meter
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

3mm,2mm, 2.5mm, 4mm

Surface Treatment:

Powder Coated, Pvdf Paint, Wood Grain

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1800x4000mm

Contact Email:

Mcityalu@163.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Perforation Metal Cladding

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

perforated aluminum facade cladding

round hole metal wall cladding

aluminum facade wall system

Product Description

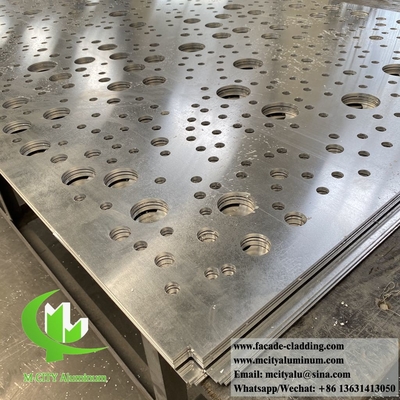

Round Holes Perforation Design Aluminum Facade Metal Wall Cladding System

Our round holes perforation design aluminum facade metal wall cladding system offers superior architectural solutions for modern building exteriors. This innovative system combines aesthetic appeal with functional performance.

3D Facade Design Metal Cladding

Perforation Aluminum Solid Panels

Aluminum Cladding Installation Guide

Corrugated Perforated Screen Aluminum Sheet

CNC Engraved Metal Facade Aluminum Sheet Assembly

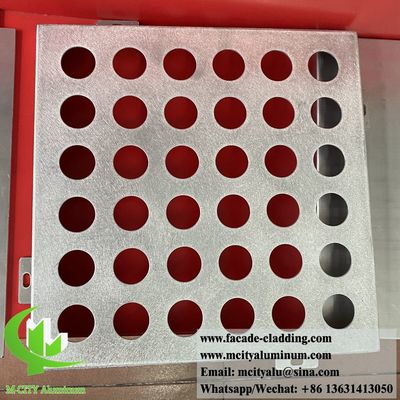

Exterior Aluminum Decorative Panel with Round Holes Perforation

3D Facade Design Metal Clad Aluminum Facades Details

As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers along with advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets. Our engineers can visit project sites to measure installation specifications and create shop drawings to ensure smooth installation.

All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only a frame, bolts, and sealants to finish gaps between panels, making it an efficient solution for building envelope and decoration.

Product Specifications

Our metal cladding panels are manufactured from high-quality, high-strength aluminum alloy sheets with common thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm with maximum length of 6000mm, using aluminum alloy series 3003-H14 or 1100-H14.

The system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel, bent and formed, or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, flatness, wind pressure resistance, and earthquake resistance. High-efficiency sound insulation materials can be installed inside panels when required.

Manufacturing Facility

Global Shipping

M-City Aluminum factory produces various metal facade panels with perforation or laser cut designs. We welcome your facade design requirements and specifications.

3D Metal Facade Wall Cladding Details

Frequently Asked Questions

Are you a trading company or factory?

We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.

Can you accept our own designs?

Yes. Size, color, patterns, and designs can be customized according to your project requirements.

What is your minimum order quantity?

We accept small orders with a minimum order quantity of 80 square meters.

What is the delivery time?

Production is completed within 30 days after receiving deposit payment.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns or designs can be manufactured. You can provide drawings or pictures for customization.

M-CITY Metal Facade Specification

Aluminum panels are made from Aluminum alloy 3003 series and serve as curtain walls for wall protection and non-lighting walls, replacing mosaic and general sandblasting facades. Their light texture and strength characteristics provide advantages for high-rise buildings, where various loads, particularly wind pressure, are constant concerns. Unlike mosaic that can easily fall off due to wind pressure and deformation, aluminum panels offer unique advantages suitable for widespread use in high-rise construction.

Application Areas

Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and more. You can select patterns from our catalog or send drawings/pictures for custom design.

Advanced Manufacturing Equipment

We utilize imported CNC cutting machines, punching machines, professional software, and experienced designers with global project experience. You can trust us with your project requirements.

To meet individual customer requirements, you can select patterns from our renderings or customize your favorite designs. Our goal is to create the best customized products for each client. Aluminum hollow panel sizes can be adjusted with design elements reconfigured accordingly, not simply zoomed. Our standard size is 1200x2400mm, with larger sizes requiring combination.

Perforated Aluminum Metal Cladding Project Reference

Fence Decoration Applications
