Powder Coated Perforated Aluminum Panel with Custom CNC Cutting and RAL Color Options for Facade Cladding

Powder Coated Perforated Aluminum Panel with Custom CNC Cutting and RAL Color Options for Facade Cladding

Brand Name:	M-CITY
Model Number:	MCT-perforated metal cladding 01
MOQ:	100square meters
Price:	USD20-USD100/Sq.m
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

4mm

Surface Treatment:

Powder Coated

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1500x5000mm

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Perforated Metal Cladding

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

Decorative perforated metal screen aluminium panels

Decorative perforated aluminium panels facade

wall cladding perforated aluminium panels facade

Product Description

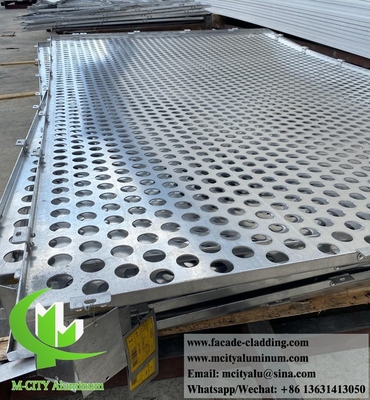

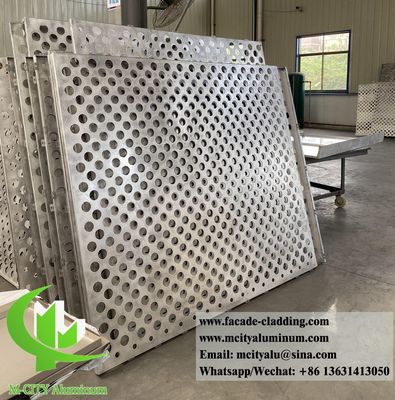

Decorative Perforated Aluminum Panels for Wall Cladding

Custom decorative perforated metal screen aluminum panels designed for architectural wall cladding applications. Our CNC cutting technology enables creation of any design pattern for unique facade solutions.

Advanced CNC cutting design aluminum sheets capable of producing any custom pattern or design requirement.

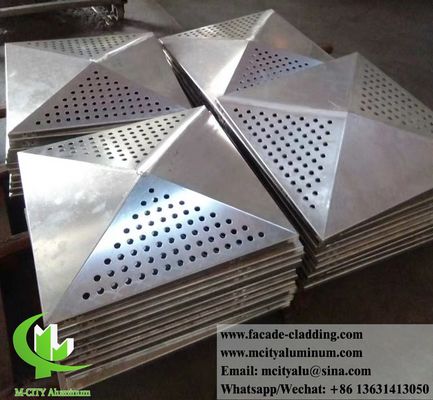

3D perforation metal cladding aluminum facades for modern architectural applications.

Custom Manufacturing Capabilities

As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers supported by advanced CNC facilities. We produce aluminum panels according to customer specifications for dimensions, shapes, structures, colors, and competitive budgets.

Our services include on-site engineering measurements and shop drawing preparation to ensure smooth installation. All aluminum cladding is prefabricated according to customer designs - you only need to prepare a frame, bolts, and sealants for gap finishing.

Product Specifications

Our metal facade panels are manufactured from high-quality, high-strength aluminum alloy sheets with standard thickness options of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm with maximum length of 6000mm, using aluminum alloy series 3003-H14 or 1100-H14.

The panel system consists of panel, reinforce bar, and bracket components. Corner brackets can be directly stamped from the panel or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid structure that enhances strength, rigidity, flatness, and resistance to wind pressure and seismic activity.

High-efficiency sound insulation materials can be installed inside aluminum panels when acoustic performance is required.

Metal cladding solid aluminum panels are packed in containers and shipped worldwide by sea.

M-City Aluminum factory produces various metal cladding panels with perforation designs or laser cut patterns. We welcome facade design requirements for custom projects.

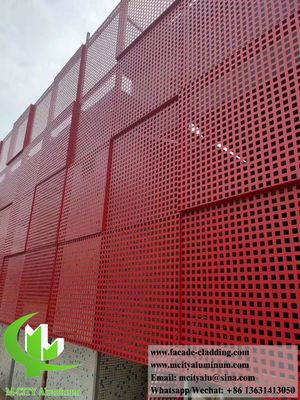

Architectural metal cladding perforated aluminum facades project in Guangdong.

3D metal facade for wall cladding details.

Frequently Asked Questions

Are you a trading company or factory?
We are a 100% professional manufacturer with more than 60 production machines and over 150 staff members.
Can you accept our own designs?
Yes. Size, color, patterns, and designs can be customized according to your project requirements.
What is your MOQ order?
We accept small orders with a minimum order quantity of 100 square meters.
What is the delivery time?
Production is completed within 30 days after receiving deposit.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns or designs can be manufactured - simply provide us with your drawing or reference picture.

M-CITY Metal Facade Specifications

Aluminum panels are manufactured from Aluminum alloy 3003 series sheets, serving as curtain wall systems for wall protection and non-lighting walls. These panels replace traditional mosaic and sandblasting facades with superior lightweight characteristics and strength properties ideal for high-rise buildings.

The material's advantages include excellent performance under various loads, particularly wind pressure resistance. Unlike mosaic materials that may fall off under high wind pressure and deformation, aluminum panels maintain structural integrity in demanding architectural applications.

Materials:	Aluminum alloy 1100 / 3003 series
Standard size:	1000mm x 2000mm
Other size:	Max. Width: 1200mm, Max. Length: 5000mm
Thickness:	1mm - 10mm
Surface treatment:	Powder coated, PVDF paint
Color:	Any RAL colors, wooden grain color, stone color, etc.
Coating:	Akzo Nobel, PPG, etc.
Application:	Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers etc.
Patterns:	Any patterns can be manufactured - provide drawing or picture

Painting Decorative Aluminum Sheet

Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and other applications. Choose patterns from our catalog or send your drawings/pictures for custom design services.

Advanced Manufacturing Equipment

Our production facility features imported CNC cutting machines, punching machines, professional design software, and experienced designers. With numerous completed projects worldwide, you can trust us with your architectural requirements.

Powder coating production line.

We accommodate individual customer requirements by offering pattern selection from renderings or custom pattern development. Our standard aluminum hollow panel size is 1200x2400mm, with design elements adjustable to customer dimensions (not simple scaling). Larger sizes require panel combination.

Perforated Aluminum Metal Cladding Project Reference

For fence decoration applications.
