Powder Coated Perforated Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding

Powder Coated Perforated Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding

Brand Name:	M-CITY
Model Number:	MCT-perforation cladding 10
MOQ:	100square meters
Price:	USD30-USD100/Sq.m
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

3mm

Surface Treatment:

Powder Coated, Pvdf Paint

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1500x5000mm

Contact Email:

Mcityalu@sina.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Metal Cladding, Metal Facades

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

metal screen perforation aluminium panels

Interior perforation aluminium panels

wall cladding perforation aluminium panels

Product Description

Interior Metal Screen Perforation Aluminium Panels for Wall Cladding

Professional interior metal screen perforation aluminium panels designed specifically for modern wall cladding applications.

Advanced CNC cutting technology allows for custom designs and patterns to be precisely manufactured according to your specifications.

Custom Manufacturing Capabilities

As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers supported by advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets.

Our services include on-site engineering support to measure installation specifications and create detailed shop drawings for smooth installation processes.

Product Construction & Materials

Our metal facade panels are manufactured from high-quality, high-strength aluminum alloy sheets with standard thickness options of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet dimensions are 2000mm width and 6000mm length, utilizing 3003-H14 or 1100-H14 aluminum alloy series.

The panel system consists of three main components: panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid structure that enhances strength, rigidity, and ensures excellent flatness with superior resistance to wind pressure and earthquake forces.

For projects requiring sound insulation, high-efficiency sound absorption materials can be installed inside the aluminum panel structure.

All products are packed in containers and shipped worldwide via sea freight.

M-City Aluminum factory specializes in producing various metal cladding panels with perforation designs and laser cut patterns. We welcome your facade design requirements and specifications.

Frequently Asked Questions

Are you a trading company or factory?

We are a 100% professional manufacturer with more than 60 production machines and over 150 staff members.

Can you accept our own designs?

Yes. Size, color, patterns, and designs can be fully customized according to your project requirements.

What is your minimum order quantity?

We accept small orders with a minimum order quantity of 100 square meters.

What is the delivery time?

Production is typically completed within 30 days after receiving deposit payment.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Custom Pattern Capability: Any patterns or designs can be manufactured. Simply provide us with your drawings or reference pictures.

M-CITY Metal Facade Specifications

Aluminum panels are manufactured from Aluminum alloy 3003 series sheets, serving as curtain wall systems for wall protection and non-lighting walls. These panels replace traditional mosaic and sandblasting facades with superior performance characteristics.

The light yet strong material properties make aluminum panels ideal for high-rise buildings where various loads, particularly wind pressure, are constant concerns. Unlike mosaic materials that can easily fall off due to wind pressure and deformation, aluminum panels maintain structural integrity and performance in demanding environments.

Materials:	Aluminum alloy 1100 / 3003 series
Standard Size:	1000mm x 2000mm
Other Sizes:	Max. Width: 1200mm, Max. Length: 5000mm
Thickness:	1mm - 10mm
Surface Treatment:	Powder coated, PVDF paint
Color Options:	Any RAL colors, wooden grain color, stone color, etc.
Coating Brands:	Akzo Nobel, PPG, etc.
Applications:	Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers
Pattern Options:	Any patterns can be manufactured - provide drawings or pictures

Painting Decorative Aluminium Sheet

Aluminum hollow panels are ideal for facade, fence, canopy, ceiling, screen, and window applications. Choose patterns from our catalog or send us your drawings or pictures - we can create custom designs for your specific needs.

Advanced Manufacturing Equipment

Our production facility features imported CNC cutting machines, punching machines, professional design software, and experienced designers. With numerous completed projects worldwide, you can trust us with your architectural facade requirements.

Our comprehensive powder coating line ensures consistent, high-quality finishes for all aluminum panels.

To meet individual customer requirements, you can select patterns directly from our renderings or provide your favorite patterns for customization. Our goal is to create the best custom products for each client. Aluminum hollow panel sizes can be adjusted with design elements optimized for your specific dimensions, not simply scaled. Our standard size is 1200x2400mm, with larger sizes achieved through panel combination.

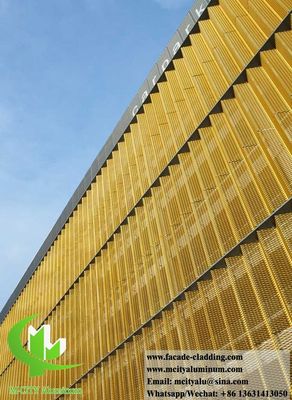

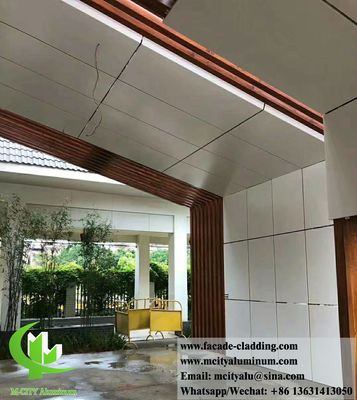

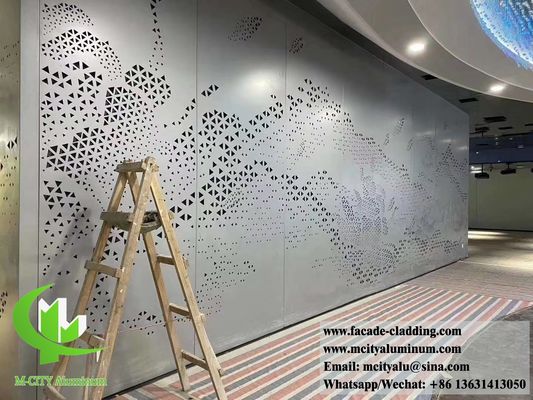

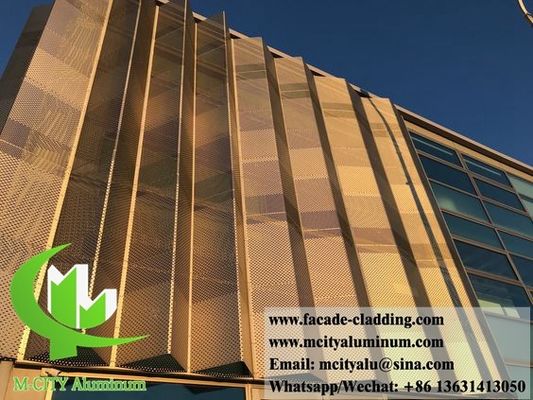

Perforated Aluminum Metal Cladding Project Reference

Fence Decoration Applications
