Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 1.5-10mm Thickness for Facade Cladding

Brand Name:	M-CITY
Model Number:	MCT-perforation cladding 09
MOQ:	100square meters
Price:	USD30-USD100/Sq.m
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong foshan, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

1.5-10mm

Surface Treatment:

Powder Coated, Pvdf Paint

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1500x5000mm

Contact Email:

Mcityalu@sina.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Metal Cladding, Metal Facades, Aluminium Cladding

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

laser cut aluminum cladding panels

metal facade wall panels

aluminum building facade system

Product Description

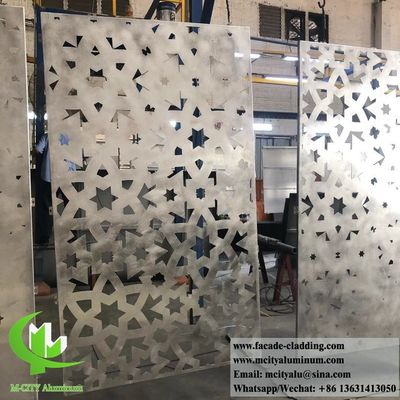

Laser Cut Aluminum Panels for Building Facade Systems

M-City Aluminum is a professional manufacturer with an excellent design team, skilled fabrication workers, and advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets. Our engineers can visit sites to measure installation specifications and create shop drawings for smooth installation.

All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only framing, bolts, and sealants for gaps between panels, making building envelope and decoration straightforward.

Product Construction & Specifications

Our metal facade panels are made from high-quality, high-strength aluminum alloy sheets with common thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet dimensions are 2000mm width and 6000mm length, using 3003-H14 or 1100-H14 aluminum alloy series.

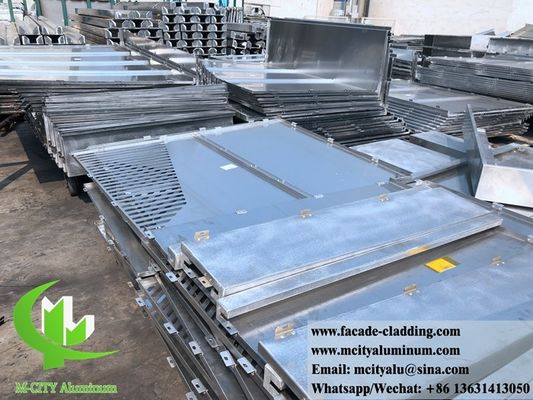

The system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel or riveted to small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquakes. For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.

We ship worldwide via sea transport in containers.

M-City Aluminum factory produces various metal cladding panels with perforation or laser cut designs. Contact us with your facade design requirements.

3D metal facade for wall cladding details.

Frequently Asked Questions

Are you a trading company or factory?
We are a 100% professional manufacturer with over 50 production machines and more than 100 staff.
Can you accept our own designs?
Yes. Size, color, patterns, and designs can be customized according to your project requirements.
What is your minimum order quantity?
We accept small orders with a MOQ of 80 square meters.
What is the delivery time?
Production is completed within 30 days after receiving deposit.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns or designs can be manufactured. Provide us with your drawing or picture.

M-City Metal Facade Specifications

Aluminum panels are made from 3003 series aluminum alloy sheets. As curtain wall systems, they serve for wall protection and non-lighting walls, replacing mosaic and sandblasting facades. Their light weight and strength characteristics provide advantages for high-rise buildings, particularly in resisting wind pressure and deformation.

Materials:	Aluminum alloy 1100 / 3003 series
Standard size:	1000mm x 2000mm
Other size:	Max. Width: 1200mm, Max. Length: 5000mm
Thickness:	1mm - 10mm
Surface treatment:	Powder coated, PVDF paint
Color:	Any RAL colors, wooden grain color, stone color, etc.
Coating:	Akzo Nobel, PPG, etc.
Application:	Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers
Patterns:	Any patterns can be manufactured from supplied drawings or pictures

Painting Aluminum Decorative Panel Applications

Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and more. Choose patterns from our catalog or send us drawings/pictures for custom designs.

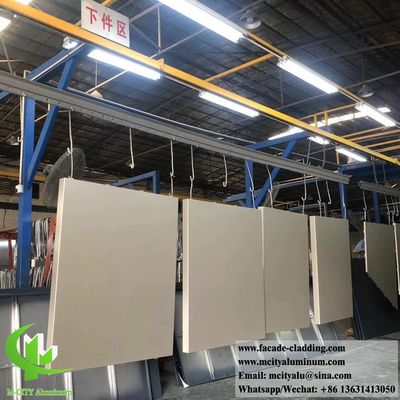

Manufacturing Capabilities

With imported CNC cutting machines, punching machines, professional software, designers, and global project experience, you can trust us with your projects.

To meet individual customer requirements, select patterns from renderings or customize favorite designs. Our goal is to create the best custom products. Aluminum hollow panel sizes can be adjusted with design element considerations, not simple scaling. Standard size is 1200x2400mm; larger sizes require combination.

Perforated Aluminum Metal Cladding Project Reference

Fence Decoration Applications
