Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 1.5-10mm Thickness

Brand Name:	M-CITY
Model Number:	MCT-laser cut metal panel 03
MOQ:	80square meters
Price:	USD30-USD100/Sq.m
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

1.5-10mm

Surface Treatment:

Powder Coated, Pvdf Paint

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1500x5000mm

Contact Email:

Mcityalu@sina.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Outdoor Decorative Screens

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

aluminum wall cladding panels

metal cladding for building facades

solid wall aluminum panels

Product Description

Solid Wall Panel Metal Cladding Aluminium Panels

High-quality aluminum cladding panels designed for building facades, offering exceptional durability and weather resistance.

Premium Surface Coating

Our aluminum cladding undergoes comprehensive surface preparation including cleaning and chromate treatment before advanced coating application. The fluorocarbon coating system includes primer, topcoat, and varnish layers using KYNAR500 as the main component.

Available in PVDF 2-coat or PVDF 3-coat systems
Superior corrosion and weather resistance
Excellent performance against acid rain, salt spray, and air pollutants
Outstanding thermal stability and UV resistance
Long-lasting color retention and minimal powdering
Extended service life with premium coatings from PPG, AKZO NOBEL, and NIPPON
Extensive color selection from manufacturer standards or custom samples

Outdoor Decorative Screens

Rust-resistant aluminum decorative screens designed for long-term outdoor performance.

Custom Manufacturing Capabilities

As a professional manufacturer, M-City Aluminum combines excellent design expertise with advanced CNC facilities to produce aluminum panels tailored to your specific requirements for dimensions, specifications, shapes, structures, colors, and budget constraints.

We provide comprehensive support including on-site measurement services and detailed shop drawings to ensure smooth installation. All aluminum panels are prefabricated according to your designs - simply prepare the frame, bolts, and sealants for efficient building envelope completion.

Panel Construction & Specifications

Our metal facade panels are manufactured from high-strength aluminum alloy sheets with standard thickness options of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet dimensions are 2000mm width and 6000mm length, using 3003-H14 or 1100-H14 aluminum alloy series.

The panel system consists of three main components: panel, reinforce bar, and bracket. The integrated design creates a solid structural unit that enhances strength and rigidity while ensuring excellent flatness, wind pressure resistance, and earthquake performance. Optional sound insulation materials can be installed within the aluminum panel for acoustic requirements.

Global Shipping

We ship worldwide via containerized sea freight to support international projects.

Custom Design Options

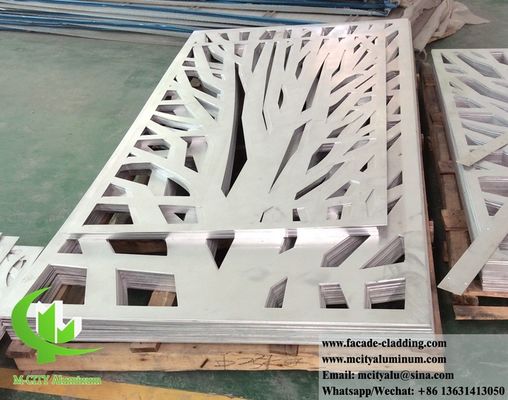

M-City Aluminum produces various metal cladding panels with perforation designs, laser cutting, and custom patterns. Submit your facade design requirements for expert fabrication.

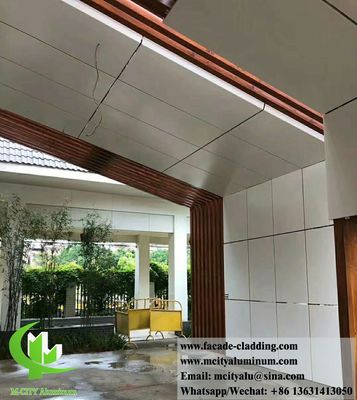

Project Reference - Beijing Architectural Facade

3D Wall Cladding Details

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a 100% professional manufacturer with over 50 production machines and more than 100 staff members.

Can you accept custom designs?

Yes. We customize size, color, patterns, and designs according to your project requirements.

What is your minimum order quantity?

We accept small orders with a minimum of 80 square meters.

What is your delivery time?

Production is typically completed within 30 days after deposit receipt.

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns or designs can be manufactured - simply provide drawings or reference images.

M-CITY Metal Cladding Aluminum Specifications

Aluminum panels utilize 3003 series aluminum alloy, serving as curtain wall systems for wall protection and non-lighting applications. These panels replace traditional mosaic and sandblasted facades with superior lightweight strength characteristics ideal for high-rise buildings where wind pressure and structural loads demand exceptional performance.

Materials	Aluminum alloy 1100 / 3003 series
Standard Size	1000mm x 2000mm
Other Sizes	Max. Width: 1200mm, Max. Length: 5000mm
Thickness	1mm - 10mm
Surface Treatment	Powder coated, PVDF paint
Color Options	Any RAL colors, wooden grain, stone colors, etc.
Coating Brands	Akzo Nobel, PPG, etc.
Applications	Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers
Pattern Options	Custom patterns from drawings or images

Painting Decorative Aluminum Panel

Aluminum hollow panels are ideal for facades, fences, canopies, ceilings, screens, and windows. Choose from our pattern catalog or provide custom drawings for personalized designs.

Advanced Manufacturing Equipment

Our facility features imported CNC cutting machines, punching equipment, professional design software, and experienced designers with global project experience for reliable fabrication services.

Powder Coating Line

We accommodate individual customer requirements by offering pattern selection from renderings or custom designs. Our standard panel size is 1200x2400mm, with design element adjustments for custom dimensions rather than simple scaling. Larger projects utilize panel combination techniques.

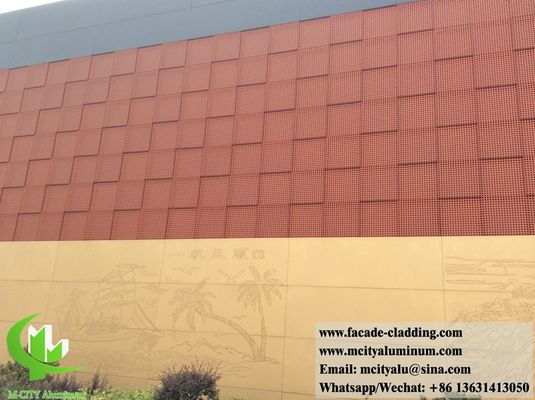

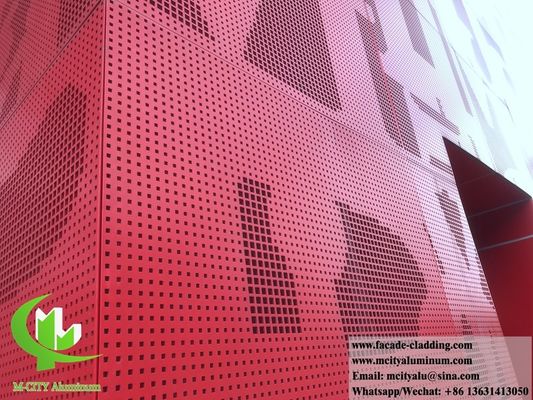

Perforated Aluminum Cladding Project Reference

Fence Decoration Applications
