Powder Coated Oval Shape Aluminum Sun Louver with 6063-T5/T6 Aluminum Alloy for Facade and Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

metal oval aluminum sun louver

aluminum aerofoil louver for window

facade sun louver aerofoil profile

Product Description

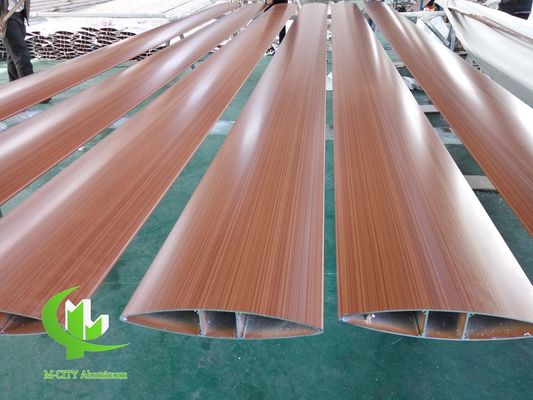

Aerofoil Profile Aluminum Sun Louvers

Powder coated architectural aerofoil profile aluminum louver with oval shape for facade curtain wall applications.

Product Overview

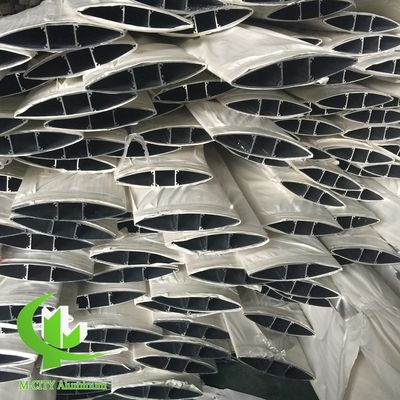

M-CITY aerofoil/airfoil louver blade series are based on aluminum extrusion profiles (6063-T5/T6), primarily featuring ellipse-shaped aluminum profiles. These louvers effectively deflect thermal gain from incident sun while integrating light control into the building envelope. Beyond outstanding functionality, they help architects create distinctive building surface aesthetics.

Well-designed louver configurations provide striking visual impact while effectively shading facades against low or high sun angles. Design considerations such as louver size and composition significantly affect performance, helping improve energy efficiency in your projects.

Project Application Example

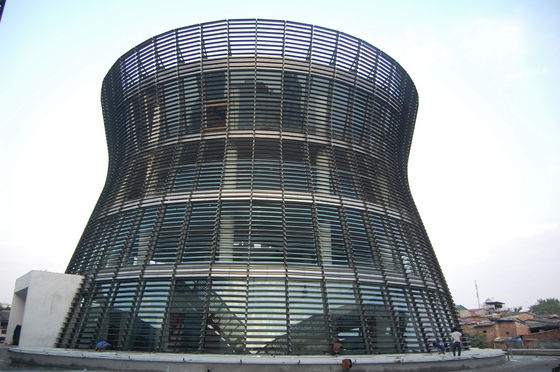

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes

Widths from 100mm to 600mm are available

M-CITY aerofoil louvers feature blade widths from 100mm to 600mm tip to tip. Extruded louvers offer enhanced durability and strength. Louver shapes, composition, and finishes can create specific daylighting effects while establishing unique aesthetics.

Fabricated louvers can be created at nearly any size
Aerofoil composition is typically metal (aluminum), with options including glass and wood
Metal louvers feature finishes including polyester powder coating, flurocarbon painting (PVDF paint), and anodizing
All finishes resist damage from sun exposure and weather conditions

Technical Specifications

Parameter	Specification
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface finish	Powder coated, flurocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Products

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

For Fence Decorative Applications

Custom Manufacturing Services

Welcome to send us drawings and inquiries. We will try our best to support your project with custom aluminum louver and panel solutions.
