Powder Coated Aluminum Sun Louver with Aerofoil Profile in 100mm to 600mm Sizes for Fixed System Facades

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

metal oval aluminum sun louver

aluminum aerofoil louver for window

sun louver facade aluminum profile

Product Description

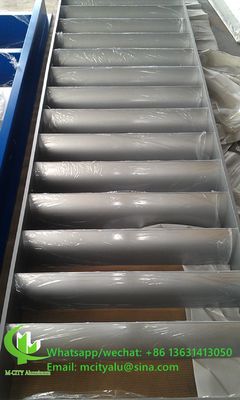

Aerofoil Profile Aluminum Sun Louver for Building Facade

M-CITY aluminum sun louvers feature powder-coated architectural aerofoil profiles with oval shapes designed specifically for facade curtain wall applications. These extruded aluminum louvers effectively deflect thermal gain from incident sunlight while integrating light control into the building envelope.

Well-designed louver configurations provide both outstanding functionality and distinctive architectural aesthetics. These systems effectively shade building facades against various sun angles while making a strong visual statement that enhances building appearance.

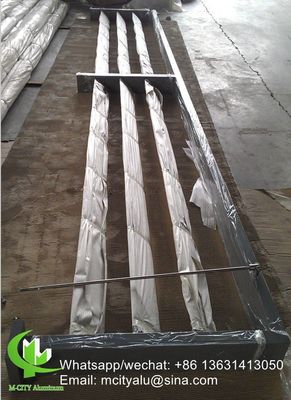

Project Example: Vertical Aerofoil Louver System

Installation Methods

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design specifications

Available Sizes and Specifications

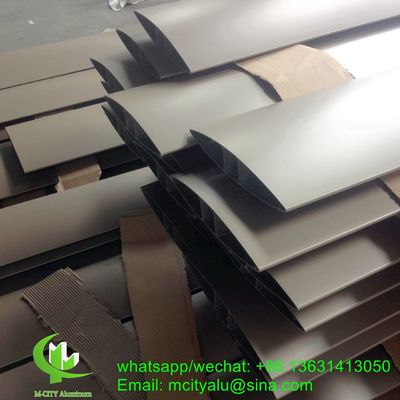

M-CITY aerofoil louvers are available in blade widths from 100mm to 600mm tip to tip. The extruded construction provides enhanced durability and structural strength.

Specification	Details
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Products

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

For Fence Decorative Applications

Welcome to send us your drawings and inquiries. We will try our best to support your project requirements with our technical expertise and manufacturing capabilities.
