Powder Coated Oval Shape Aluminum Sun Louver Aerofoil Louver for Facade Curtain Wall in 100mm-600mm Sizes

Brand Name:	M-CITY
Model Number:	MCT-AF200
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

oval aluminum sun louver

metal aerofoil louver facade

horizontal aluminum louver curtain wall

Product Description

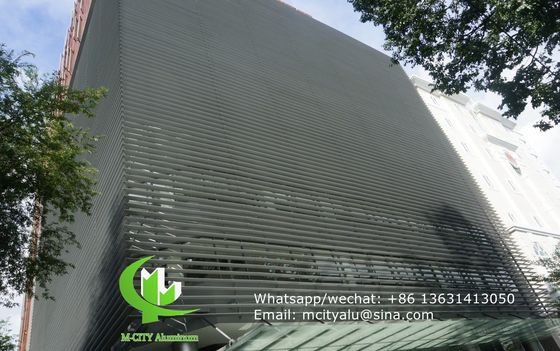

Horizontal Metal Aluminum Sun Louver - Aerofoil Profile with Oval Shape

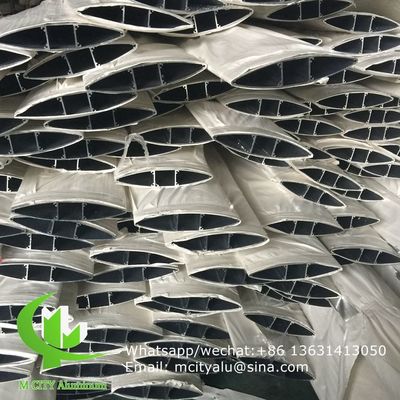

M-CITY Aerofoil/Airfoil Louver blade series are precision-engineered aluminum extrusion profiles (6063-T5/T6) featuring elliptical shapes designed to deflect thermal gain from incident sun while integrating light control into building envelopes.

These architectural louvers deliver outstanding functionality while enabling architects to create distinctive building aesthetics. Well-designed louver configurations effectively shade facades against various sun angles while making strong aesthetic statements.

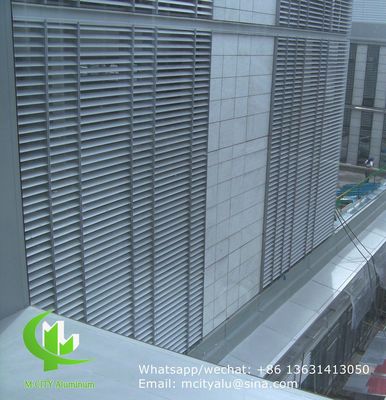

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers feature blade widths from 100mm to 600mm tip to tip. Extruded construction provides enhanced durability and strength. Louver shapes, composition, and finishes can create specific daylighting effects while establishing unique aesthetics.

Fabricated louvers available in nearly any size
Aerofoil composition primarily aluminum with other material options
Metal louvers feature finishes including polyester powder coating, fluorocarbon painting (PVDF), and anodizing
All finishes resist sun and weather damage

Product Specifications

Materials:	Aluminum extrusion (6063-T5/T6)
Size/Width:	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length:	From 1000mm-7000mm
Thickness:	From 1.0mm-3.0mm
Surface finish:	Powder coated, fluorocarbon paint, Anodized
Color:	Any RAL colors and wooden grain colors available
Coating:	Akzo Nobel, PPG, etc.
Applications:	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panels) for building facades, curtain walls, cladding, fences, windows, screens, balconies, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project.
