Powder Coated 6063-T5/T6 Aluminum Sun Louver with 100mm to 600mm Size Range for Facade and Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF200
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

oval aluminum sun louver

metal aerofoil louver profile

aluminum louver for facade wall

Product Description

Aerofoil Profile Aluminum Sun Louver for Facade Curtain Wall

Metal aluminum sun louver featuring powder coated architectural aerofoil profile with oval shape design for facade curtain wall applications.

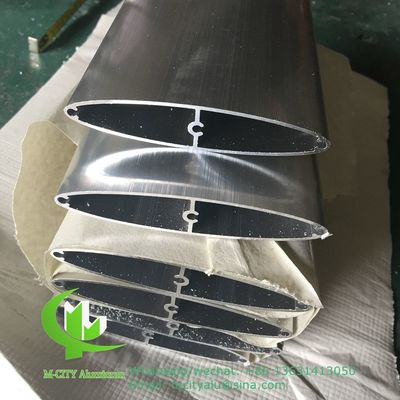

M-CITY Aerofoil/Airfoil Louver blade series are manufactured from aluminum extrusion profiles (6063-T5/T6) with elliptical shapes. These louvers effectively deflect thermal gain from incident sunlight while integrating light control into the building envelope. Beyond their functional performance, they enable architects to create distinctive aesthetic statements for building surfaces. Well-designed louver configurations provide effective shading against various sun angles while enhancing the building's visual appeal.

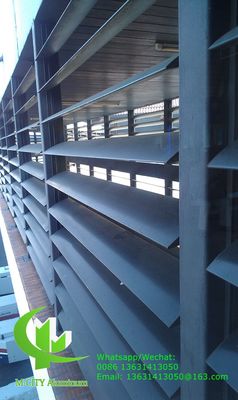

Vertical Louver Aerofoil System Project

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths from 100mm to 600mm tip to tip. The extruded construction provides enhanced durability and structural strength. Louver shapes, composition, and finishes can be customized to create specific daylighting effects and establish unique aesthetics. Fabricated louvers can be produced at nearly any size, with composition options including metal (aluminum), glass, and wood.

Product Specifications

Specification	Details
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface finish	Powder coated, flurocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Aluminum Products

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.

For Fence Decorative Applications
