Powder Coated 6063-T5/T6 Aluminum Alloy Fixed Horizontal Sun Louver with 100mm to 600mm Width for Facade and Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

fixed horizontal aluminum sun louver

architectural aerofoil aluminum louver

aluminum sun louver with warranty

Product Description

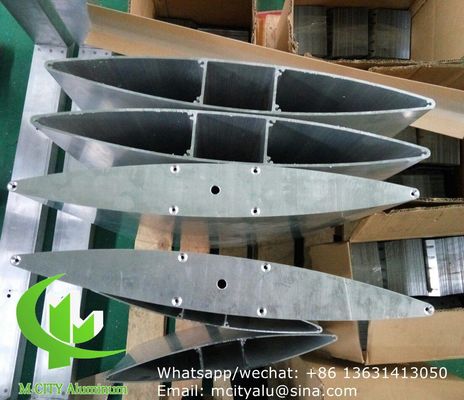

Fixed Horizontal Aluminum Sun Louver - Architectural Aerofoil Profile

Aluminum sun louver powder coated architectural aerofoil profile aluminum louver with oval shape for facade curtain wall applications.

M-CITY Aerofoil/Airfoil Louver blade series are based on aluminum extrusion profile (6063-T5/T6), primarily featuring ellipse-shaped aluminum profiles. These louvers effectively deflect thermal gain from incident sun exposure while integrating light control into the building envelope. Beyond outstanding functionality, they enable architects to create distinctive building surface aesthetics. Well-designed louver configurations provide striking visual appeal while effectively shading facades against low or high sun angles. Design considerations such as louver size and composition significantly impact performance, helping improve energy efficiency in your projects.

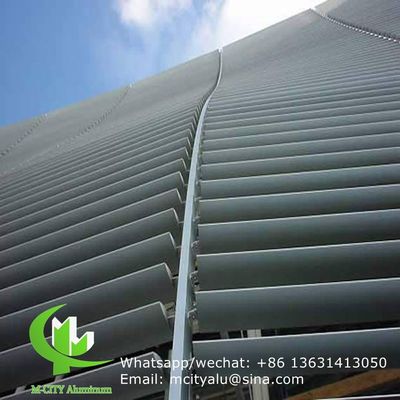

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes from 100mm to 600mm

M-CITY aerofoil louvers blade width ranges from 100mm to 600mm tip to tip. Extruded louvers offer enhanced durability and strength. Louver shapes, composition, and finishes can create specific daylighting effects while establishing unique aesthetics. Fabricated louvers can be created at nearly any size, with aerofoil composition typically being metal (aluminum), though other options including glass and wood are available. M-CITY metal louvers feature finishes including polyester powder coating, flurocarbon painting (PVDF paint), and anodizing - all resistant to sun and weather damage.

Product Specifications

Material	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, flurocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.
