Powder Coated Oval Shape 6063-T5/T6 Aluminum Alloy Aerofoil Louver for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

powder coated aluminum aerofoil louver

oval shape facade curtain wall louver

horizontal vertical sun louver profile

Product Description

Powder Coated Horizontal Vertical Aerofoil Louver Profile

Elliptical aluminum louver system designed for facade curtain wall applications, combining exceptional functionality with distinctive architectural aesthetics.

M-CITY Aerofoil/Airfoil Louver Blade Series

Our aerofoil louvers are manufactured from high-quality aluminum extrusion profiles (6063-T5/T6) in elliptical shapes. These advanced systems effectively deflect thermal gain from solar exposure while integrating sophisticated light control into the building envelope.

Beyond delivering outstanding performance, our louver configurations enable architects to create striking visual statements for building surfaces. Well-designed installations provide effective shading against varying sun angles while establishing a unique architectural identity.

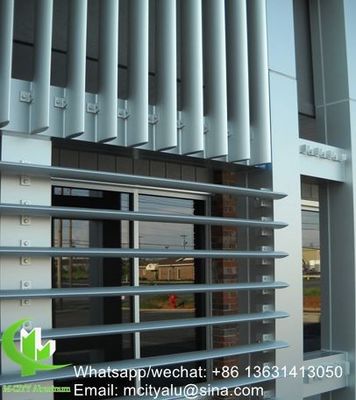

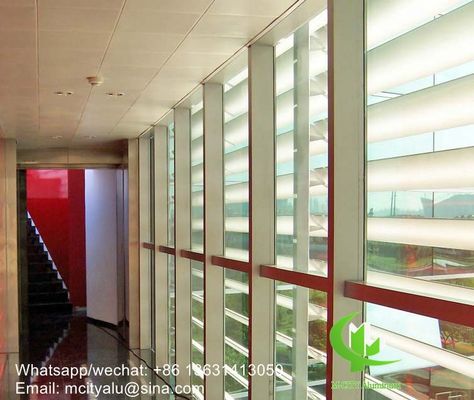

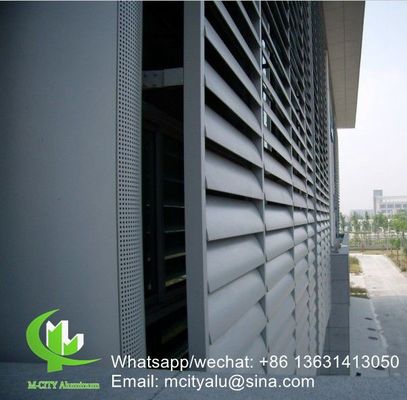

Vertical Louver Aerofoil System Project

Installation Methods Reference

Method	Description
A	Fix to support frame with screws
B	Using bracket and screws to support frame
C	Using endcaps for fixation on both ends
D	Custom installation per architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths ranging from 100mm to 600mm tip to tip. Our extruded aluminum construction ensures superior durability and structural strength compared to alternative manufacturing methods.

Louver shapes, compositions, and finishes can be customized to create specific daylighting effects while establishing distinctive architectural aesthetics. Fabricated louvers can be produced in nearly any size requirement.

Technical Specifications

Parameter	Specification
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Manufacturing Capabilities

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and various architectural applications.

Welcome to send us your drawings and inquiries - we are committed to providing comprehensive support for your project requirements.
