Horizontal Powder Coated Oval Shape Aluminum Louver 6063-T5/T6 Alloy for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

oval aluminum louver for facade

horizontal architectural aerofoil louver

aluminum sun louver curtain wall

Product Description

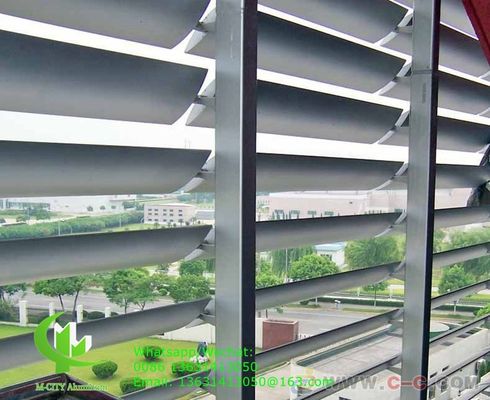

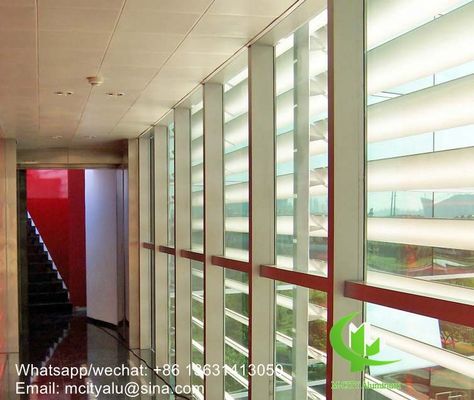

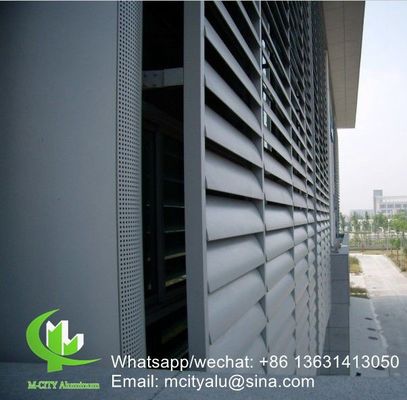

Horizontal Architectural Aerofoil Aluminum Louver for Facade Curtain Wall

M-CITY Aerofoil/Airfoil Louver blade series feature elliptical-shaped aluminum extrusion profiles (6063-T5/T6) designed to deflect thermal gain from incident sun while integrating light control into the building envelope. These louvers deliver outstanding functionality while helping architects create distinctive building aesthetics.

Well-designed louver configurations provide effective shading against low or high sun angles while making a striking aesthetic statement. Design considerations such as louver size and composition significantly affect performance, helping improve your project's energy efficiency.

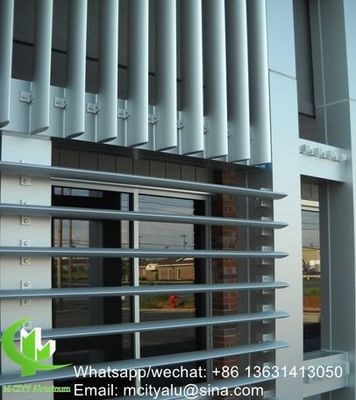

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers feature blade widths from 100mm to 600mm tip to tip. Extruded louvers offer enhanced durability and strength. Louver shapes, composition, and finishes can create specific daylighting effects while establishing different aesthetics.

Product Specifications

Specification	Details
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other applications.

Welcome to send us drawings and inquiries - we will try our best to support your project.

For Fence Decorative Applications
