3003 PVDF Coated Custom Made CNC Perforated Aluminum Facade Panel for Wall Cladding System

Name: 3003 PVDF Coated Custom Made CNC Perforated Aluminum Facade Panel for Wall Cladding System
Brand: Foshan M-CITY Aluminum Co., Ltd.
SKU: Perforated aluminum
Price: 55.00 USD
Availability: InStock

Brand Name:	M-City
Model Number:	Perforated aluminum
MOQ:	100sq.m
Price:	USD30-80 per sqaure meter
Payment Terms:	T/T
Supply Ability:	50000square meter per month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Packaging Details:

Protect film + bubble film

Supply Ability:

50000square meter per month

Highlight:

PVDF aluminum alloy perforated facade

custom perforated wall cladding system

3003 alloy perforated facade panels

Product Description

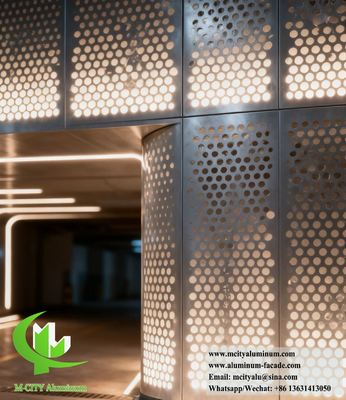

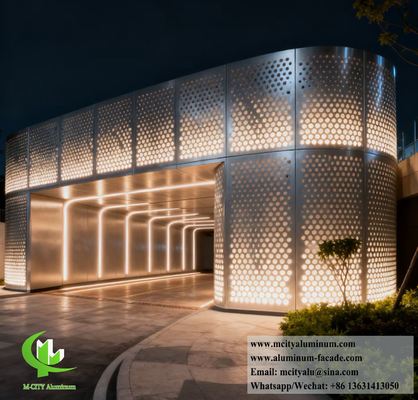

3003 PVDF Custom Made Aluminum Alloy Perforated Facades Wall Cladding System

In modern architecture, the facade serves as both protective layer and design statement. Our perforated aluminum facade panels combine precision-engineered perforation technology with aluminum's inherent durability to create cladding solutions that balance visual artistry, environmental performance, and long-term reliability. Ideal for commercial landmarks, cultural centers, retail spaces, and high-end residential buildings, these panels transform ordinary facades into dynamic, light-responsive surfaces that adapt to day, night, and seasonal changes.

Crafted for Precision & Performance

Our perforated aluminum facade panels utilize premium 3003-series (manganese-enhanced) or 5052-series (magnesium-reinforced) aluminum alloys, chosen for exceptional corrosion resistance, formability, and structural stability. Base panels (1.5-4.0mm thickness) undergo computer-controlled CNC perforation with tolerances as tight as ±0.1mm, ensuring uniform hole sizing, spacing, and alignment while maintaining panel integrity.

Pattern Options: Classic round, square, and rectangular holes to intricate geometric motifs, floral designs, or brand logos—supporting both standard patterns (5-20mm hole diameters, 10-30mm center-to-center spacing) and custom CAD-designed layouts
Open Area Ratio (OAR): Tailored to project needs (typically 20%-60%) to control light transmission, ventilation, and privacy. Higher OAR (40%-60%) suits spaces needing natural light, while lower OAR (20%-30%) enhances privacy
Edge Finishing: Deburring, sanding, and edge folding (up to 50mm flange depth) for safe installation and seamless integration with curtain wall or rainscreen systems

Aluminum facade panels, also known as aluminum cladding panels, are innovative building envelope materials that revolutionize architectural design. Unlike traditional cladding materials, aluminum cladding offers a unique combination of lightweight properties, superior strength, design flexibility, and cost-effectiveness. Our aluminum single panels meet rigorous international standards including CE, AAMA, ASTM, and ISO certifications, making them suitable for global projects.

Surface Treatments: Durability Meets Color Customization

PVDF Coating: High-performance Kynar 500® resins provide UV resistance (withstands 3,000+ hours of accelerated weathering) and color retention in 200+ RAL/Pantone shades—ideal for high-visibility projects
Powder Coating: Eco-friendly (zero VOCs) and scratch-resistant (2H pencil hardness) with smooth, matte, or textured finishes—perfect for sustainable projects and LEED-certified buildings
Anodizing: Creates natural oxide layer (10-25μm) that boosts corrosion resistance with sleek, industrial-chic silver or dyed earth-tone finishes—popular for modern art galleries and tech campuses

Core Functional Advantages

Light & Shadow Control: Perforations filter sunlight to reduce glare (cutting indoor cooling loads by 25%-35%) while creating dynamic light art effects
Ventilation & Acoustics: Open structure promotes natural airflow while strategically designed hole patterns absorb sound waves (reducing external noise by 15-20 dB)
Weather Resistance: Withstands extreme temperatures (-40°C to 80°C), salt spray (ASTM B117 tested for 1,000+ hours), and heavy rain without rusting or warping
Fire Safety: Solid aluminum cores achieve Class A fire resistance (ASTM E84/GB 8624-2012) with flame spread index (FSI) <10—meeting strict safety standards

Sustainability: A Green Cladding Choice

Aluminum's 100% recyclability (recycling uses 95% less energy than primary production) makes our perforated facade panels a sustainable option. Our manufacturing follows ISO 14001 standards with closed-loop recycling of perforation scraps and solar-powered production lines to minimize carbon footprint. For green building certifications (LEED, BREEAM), the panels contribute to credits for energy efficiency, recycled content, and indoor environmental quality.

Real-World Applications & Support

Our perforated aluminum facade panels have elevated projects worldwide:

Cultural center in Singapore using custom geometric perforation patterns mimicking local flora with PVDF coating in warm terracotta tones
New York retail flagship featuring branded perforated panels that display store logo via daylight and backlighting
Coastal residential tower in Australia using anodized perforated panels with 30% OAR—balancing ocean views, privacy, and saltwater corrosion resistance

We provide end-to-end project support including BIM 3D modeling for pattern optimization, detailed installation guides, on-site contractor training, and comprehensive warranties: 10-year warranty for PVDF-coated panels or 5-year warranty for powder-coated/anodized panels against defects.

Elevate your building's identity with perforated aluminum facade panels—where precision engineering turns cladding into a canvas for architectural innovation.
