Decorative Laser Cut Panels
Created with Pixso.

Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding

Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding

Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding

Brand Name: M-CITY
Model Number: MCT- laser cut metal screen 93
MOQ: 80square meters
Price: USD25-USD55/square meter
Supply Ability: 60000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Max. Size:
1600x4000mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
Laser Cut Metal Screen
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
60000sq.m
Highlight:

laser cut aluminum cladding panels

,

metal facade sun shading system

,

exterior laser cut aluminum panels

Product Description

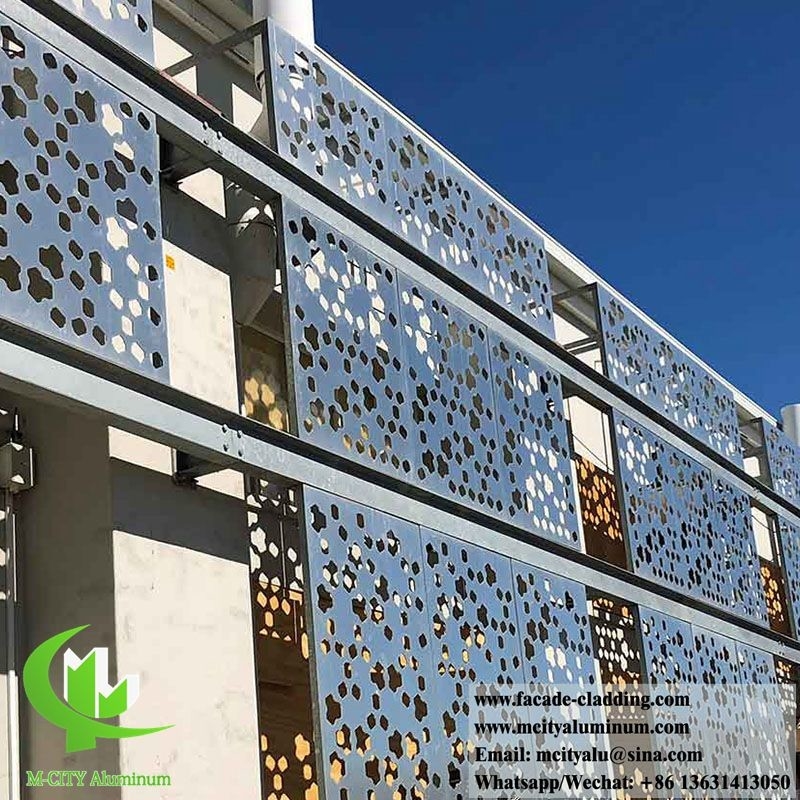

Laser Cut Metal Panels Aluminium Cladding Facade System
Professional exterior sun shading and decorative facade solutions using precision laser-cut aluminum panels.
Product Gallery
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 0 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 1 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 2 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 3 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 4 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 5 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 6 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 7 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 8 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 9 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 10 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 11 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 12 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 13
3D Facade Design Metal Cladding
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 14 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 15
Perforated Aluminum Solid Panels
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 16 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 17
Installation Guide
How to install the aluminum cladding
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 18 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 19
Corrugated Perforated Screen Aluminum Sheet
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 20
CNC Engraved Metal Facade Assembly
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 21
Exterior Aluminum Decorative Panel with Round Holes
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 22
3D Facade Design Metal Clad Aluminum Details
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 23
Custom Manufacturing Capabilities
As a professional manufacturer, M-City Aluminum has an excellent design team and fabrication workers with advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors and competitive budgets. We can send engineers to site to measure installation specifications and work out shop drawings for smooth installation.
All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only a frame, bolts, and sealants for finishing gaps between panels - making building envelope and decoration an easy job.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 24
Technical Specifications
Metal cladding panels are made of high-quality, high-strength aluminum alloy sheet with common thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is within 2000mm, maximum length within 6000mm, using aluminum alloy series 3003-H14 or 1100-H14.
The system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel, bent and formed, or riveted on small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquake. For sound insulation requirements, high-efficiency sound insulation materials can be installed inside aluminum panels.
Manufacturing Facility
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 25
Global Shipping
Aluminum cladding containers loading, shipped by sea worldwide.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 26
M-City aluminium factory produces all kinds of metal facade panels with perforation design or laser cut design. Welcome to send us requirements for your facade design.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 27
3D Metal Facade Wall Cladding Details
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 28
Frequently Asked Questions
Are you a trading company or factory?
We are 100% professional manufacturer with more than 50 producing machines and over 100 staff.
Can you accept our own designs?
Yes. Size, color, patterns/designs can be customized as per your project requirements.
What is your MOQ order?
We accept small orders with MOQ of 80sq.m
What is the delivery time?
Production is completed within 30 days after receiving deposit.
Contact Information
Whatsapp: +86 13631413050
Email: mcityalu@sina.com
Any patterns/design can be made - you can provide us with drawings or pictures.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 29
M-CITY Metal Aluminum Facade Cladding Specification
Aluminum panels are made of Aluminum alloy 3003 series, used as curtain wall for wall protection and non-lighting walls, replacing mosaic and general sandblasting facades. With light texture and good strength characteristics, they offer advantages for high-rise buildings where various loads, especially wind pressure, are constant. Traditional mosaic can fall off due to high wind pressure and deformation, while aluminum panels offer unique advantages for widespread use in high buildings.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 30
Application Areas
Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, etc. Choose patterns from our catalogue or send drawings/pictures - we can create designs for you.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 31
Advanced CNC Technology
With imported CNC cutting machines, punching machines, professional software and designers, and extensive global project experience, you can feel confident sending your projects to us.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 32 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 33
To meet individual customer requirements, select patterns from renderings directly or choose favorite patterns for customization. Our goal is to customize the best products for each customer. Aluminum hollow panel sizes can be adjusted - not simply zoomed, but with design elements adjusted according to customer size. Standard size is 1200x2400mm; larger sizes require combination.
Perforated Aluminum Metal Cladding Project Reference
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 34
Fence Decoration Applications
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors and 3mm Thickness for Facade Cladding 35
