products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Decorative Laser Cut Panels
Created with Pixso.

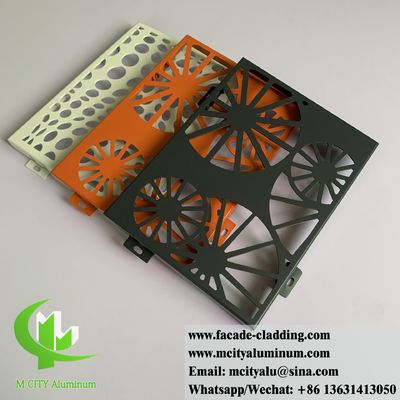

Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding

Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding

Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding

Brand Name: M-CITY
Model Number: MCT- laser cut metal facade 2
MOQ: 80square meters
Price: USD25-USD55/square meter
Supply Ability: 60000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Max. Size:
1600x4000mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
Metal Screen Aluminum
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
60000sq.m
Highlight:

laser cut aluminum facade panels

,

patterned solid aluminum sheet

,

decorative metal screen panels

Product Description
Laser Cut Metal Screen Aluminium Facades Solid Aluminium Sheet With Patterns Design
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 0 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 1 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 2 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 3 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 4 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 5 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 6 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 7 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 8 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 9 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 10
3D Facade Design Metal Cladding
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 11 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 12
Perforation Aluminum Solid Panels
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 13 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 14
Aluminum Cladding Installation Guide
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 15 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 16
Corrugated Perforated Screen Aluminum Sheet
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 17
CNC Engraved Metal Facade Assembly
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 18
Exterior Aluminum Decorative Panel with Round Holes
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 19
3D Facade Design Metal Clad Aluminum Details
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 20
M-City Aluminum is a professional manufacturer with an excellent design team, skilled fabrication workers, and advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets. Our engineers can visit sites to measure installation specifications and create shop drawings to ensure smooth installation.
All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only a frame, bolts, and sealants to finish gaps between panels, making it an efficient solution for building envelope and decoration.
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 21
Our metal cladding panels are made from high-quality, high-strength aluminum alloy sheets with common thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm and maximum length is 6000mm, using aluminum alloy series 3003-H14 or 1100-H14. The system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid structure that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquakes. For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.

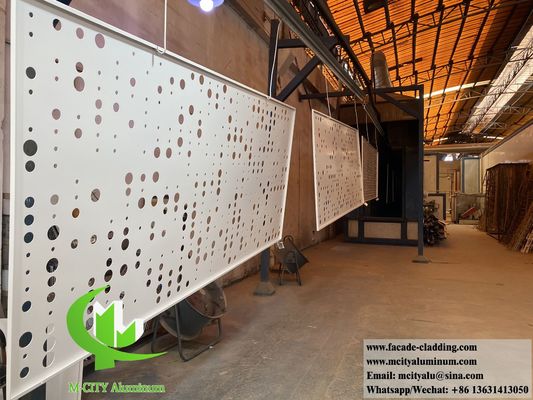

M-City Aluminum Manufacturing Facility
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 22
Global Shipping Capabilities
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 23
M-City Aluminum factory produces all types of metal facade panels with perforation designs or laser cut designs. We welcome your facade design requirements and specifications.
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 24
3D Metal Facade Wall Cladding Details
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 25
Frequently Asked Questions
Are you a trading company or factory?
We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.
Can you accept our own designs?
Yes. Size, color, patterns, and designs can be customized according to your project requirements.
What is your minimum order quantity?
We accept small orders with a minimum order quantity of 80 square meters.
What is the delivery time?
Production is completed within 30 days after receiving the deposit.
Contact Information
WhatsApp: +86 13631413050
Email: mcityalu@sina.com
Any patterns or designs can be manufactured. You can provide us with drawings or pictures for custom production.
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 26
M-CITY Metal Aluminum Facade Cladding Specifications
Aluminum panels are manufactured from Aluminum alloy 3003 series sheets. As a curtain wall system, they are used for wall protection and non-lighting walls, replacing mosaic and general sandblasting facades. The light texture and excellent strength characteristics make them ideal for high-rise buildings, where they withstand various loads, particularly wind pressure. Unlike mosaic materials that can easily fall off due to wind pressure and deformation, aluminum panels offer unique advantages for high-rise building applications.
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 27
Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and other applications. You can select patterns from our catalog or send us drawings or pictures for custom design.
Advanced CNC Cutting Technology
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 28
With imported CNC cutting machines, punching machines, professional software, experienced designers, and numerous completed projects worldwide, you can trust us with your project requirements.
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 29 Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 30
To meet individual customer requirements, you can select patterns directly from our renderings or provide your favorite patterns for customization. Our goal is to create the best custom products for each customer. Aluminum hollow panel sizes can be adjusted—not simply zoomed, but with design elements reconfigured according to customer dimensions. Our standard size is 1200x2400mm, with larger sizes requiring panel combination.
Perforated Aluminum Metal Cladding Project Reference
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 31
Fence Decoration Applications
Customizable Patterns Laser Cut Aluminum Panel with Powder Coated Surface and 3mm Thickness for Facade Cladding 32
