products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Decorative Laser Cut Panels
Created with Pixso.

Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness

Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness

Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness

Brand Name: M-CITY
Model Number: MCT- laser cut metal screen
MOQ: 80square meters
Price: USD25-USD55/square meter
Supply Ability: 60000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Max. Size:
1600x4000mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
Metal Screen Aluminum
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
60000sq.m
Highlight:

laser cut aluminum facade panels

,

powder coated metal wall cladding

,

building facade aluminum screen panels

Product Description
Laser Cut Metal Screen Aluminum Panels for Building Wall Cladding
High-quality powder coated aluminum panels designed for building facade applications, featuring precision laser cutting and perforation patterns.

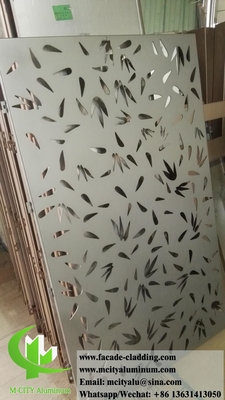

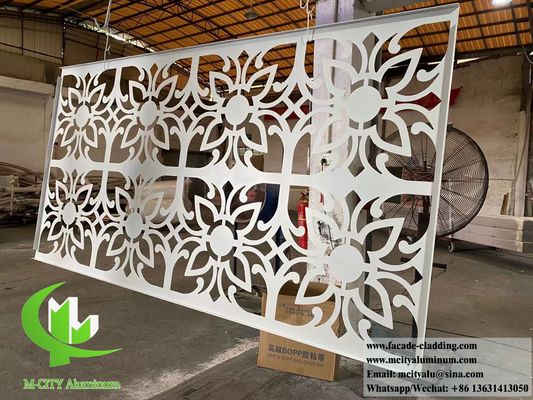

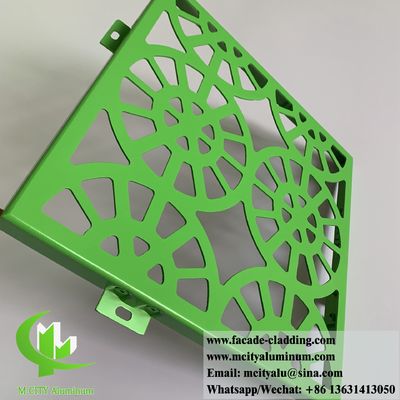

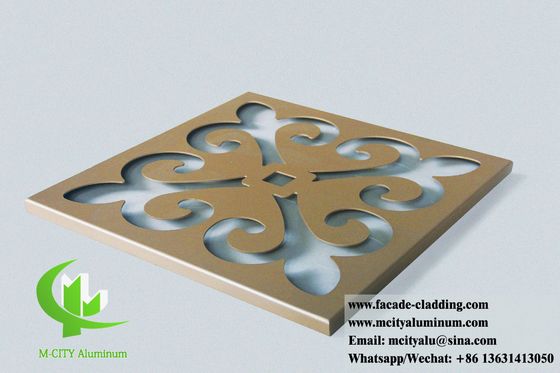

Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 0 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 1 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 2 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 3 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 4 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 5 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 6 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 7 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 8 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 9
3D Facade Design Metal Cladding
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 10 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 11
Perforation Aluminum Solid Panels
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 12 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 13
Aluminum Cladding Installation Guide
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 14 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 15
Corrugated Perforated Screen Aluminum Sheet
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 16
CNC Engraved Metal Facade Assembly
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 17
Exterior Aluminum Decorative Panel with Round Holes
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 18
3D Metal Clad Aluminum Facades
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 19
Custom Manufacturing Capabilities
As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers with advanced CNC facilities. We produce aluminum panels according to customer specifications for dimensions, shapes, structures, colors, and budget requirements.
Our services include on-site engineering measurements and shop drawing preparation to ensure smooth installation processes.
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 20
Product Specifications
Our metal cladding panels are manufactured from high-quality, high-strength aluminum alloy sheets with standard thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm with maximum length of 6000mm, using 3003-H14 or 1100-H14 aluminum alloy series.
The panel system consists of panel, reinforce bar, and bracket components. Corner brackets can be directly stamped from the panel or riveted onto folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid structure that enhances strength, rigidity, and ensures flatness with excellent wind pressure and earthquake resistance.
For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panels.
M-City Aluminum Factory
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 21
Global Shipping
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 22
M-City Aluminum factory produces various metal facade panels with perforation designs and laser cut patterns. We welcome project requirements for custom facade designs.
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 23
3D Metal Facade Wall Cladding Details
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 24
Frequently Asked Questions
  • Are you a trading company or factory?
    We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.
  • Can you accept our own designs?
    Yes. Size, color, patterns, and designs can be customized according to your project requirements.
  • What is your minimum order quantity?
    We accept small orders with a MOQ of 80 square meters.
  • What is the delivery time?
    Production is completed within 30 days after receiving deposit.
Contact Information
WhatsApp: +86 13631413050
Email: mcityalu@sina.com
Any patterns or designs can be manufactured. You can provide drawings or pictures for customization.
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 25
M-CITY Metal Aluminum Facade Cladding Specification
Aluminum panels are made from Aluminum alloy 3003 series, serving as curtain wall systems for wall protection and non-lighting walls. They provide superior alternatives to mosaic and sandblasting facades.
The lightweight yet strong characteristics make these panels ideal for high-rise buildings, where they withstand various loads, particularly wind pressure. Traditional mosaic materials are prone to falling off under high wind pressure and deformation, while aluminum panels maintain structural integrity.
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 26
Powder Coated Aluminum Facades
Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and various architectural applications. Choose patterns from our catalog or provide drawings/pictures for custom designs.
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 27
Advanced CNC Cutting Technology
We utilize imported CNC cutting machines, punching machines, professional software, and experienced designers. With numerous completed projects worldwide, you can trust us with your facade requirements.
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 28 Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 29
To meet individual customer requirements, you can select patterns from renderings or customize favorite designs. Our goal is to create the best products for each customer. Aluminum hollow panel sizes can be adjusted with design element considerations, not simple scaling. Standard size is 1200x2400mm, with larger sizes requiring combination.
Perforated Aluminum Metal Cladding Project Reference
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 30
Fence Decoration Applications
Powder Coated Laser Cut Aluminum Panel for Facade Cladding with Customizable RAL Colors and 3mm Thickness 31
