Laser Cut Aluminum Panel with PVDF Coating 3mm Thickness for Custom Design Facade Cladding

Brand Name:	M-CITY
Model Number:	MCT-laser cut aluminum panel
MOQ:	100square meters
Price:	USD20-USD100/Sq.m
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

3mm

Surface Treatment:

Powder Coated, PVDF

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1500x5000mm

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Laser Cut Aluminium Screen

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

laser cut aluminum sheet panels

patterned aluminum panels PVDF coating

3mm thick laser cut metal screen

Product Description

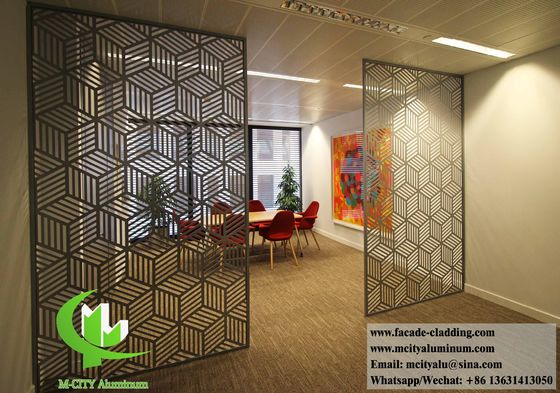

Laser Cut Metal Screen Aluminium Sheet Patterned Panels

Premium PVDF coated aluminum panels with 3mm thickness, featuring precision laser cutting and custom perforation patterns for architectural applications.

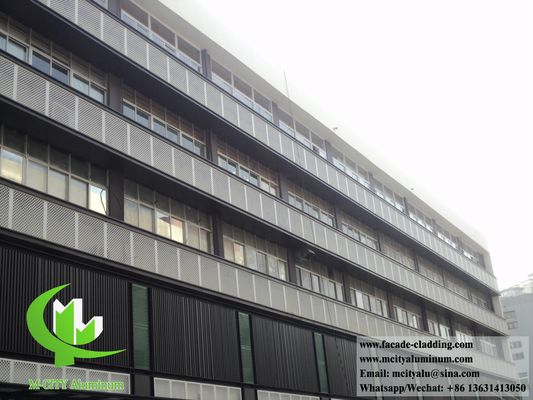

Custom Perforated Aluminum Facade Panels

Perforated aluminum sheet for facade applications with customizable hole patterns and designs.

Solid aluminum wall cladding with PVDF silver coating providing excellent anti-rust properties and long-term durability.

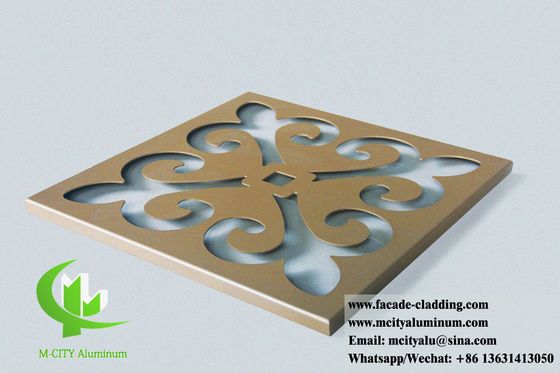

CNC Cutting Design Capabilities

Advanced CNC cutting technology enables creation of any custom design for aluminum sheets.

3D perforation metal cladding aluminum facades for modern architectural applications.

Professional Manufacturing Capabilities

As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers supported by advanced CNC facilities. We produce aluminum panels according to customer specifications for dimensions, shapes, structures, colors, and budget requirements.

Our services include on-site engineering support for measurement and shop drawing preparation to ensure smooth installation processes.

Product Construction & Materials

Metal facade panels are manufactured from high-quality, high-strength aluminum alloy sheets. Standard thickness options include 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet dimensions are 2000mm width and 6000mm length, using 3003-H14 or 1100-H14 aluminum alloy series.

The panel system consists of panel, reinforce bar, and bracket components. Corner brackets can be directly stamped from the panel or riveted onto folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid structure that enhances strength, rigidity, and ensures flatness with excellent resistance to wind pressure and seismic activity.

For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panels.

Metal cladding solid aluminum panels are packaged for container loading and shipped worldwide by sea.

M-City Aluminum factory produces various metal cladding panels with perforation designs or laser cut patterns. We welcome custom requirements for facade design projects.

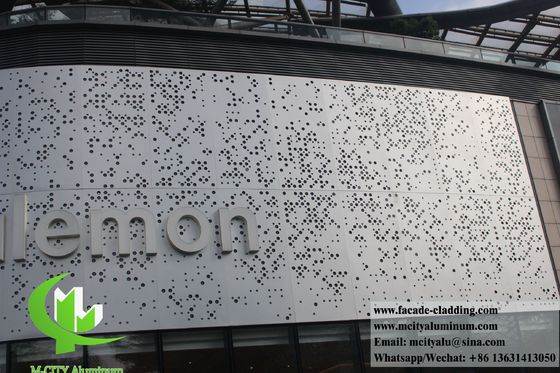

Architectural metal cladding perforated aluminum facades project example from Guangdong.

3D metal facade for wall cladding details and installation specifications.

Frequently Asked Questions

Are you a trading company or factory?

We are a 100% professional manufacturer with more than 60 production machines and over 150 staff members.

Can you accept our own designs?

Yes. Size, color, patterns, and designs can be fully customized according to your project requirements.

What is your minimum order quantity?

We accept small orders with a minimum order quantity of 100 square meters.

What is the delivery time?

Production is typically completed within 30 days after receiving deposit payment.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns or designs can be manufactured. Simply provide us with your drawings or reference pictures.

M-CITY Metal Facade Specifications

Aluminum panels are manufactured from Aluminum alloy 3003 series. As a curtain wall system, they are used for wall protection and non-lighting walls, serving as an alternative to mosaic and general sandblasting facades. The light yet strong characteristics make these panels ideal for high-rise buildings where they withstand various loads, particularly wind pressure, without the deformation issues common with traditional materials.

Materials:	Aluminum alloy 1100 / 3003 series
Standard size:	1000mm x 2000mm
Other size:	Max. Width: 1200mm, Max. Length: 5000mm
Thickness:	1mm - 10mm
Surface treatment:	Powder coated, PVDF paint
Color:	Any RAL colors, wooden grain color, stone color, etc.
Coating:	Akzo Nobel, PPG, etc.
Application:	Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers etc.
Patterns:	Any patterns can be made, just supply us the drawing or picture

Painting Decorative Aluminum Sheet

Aluminum hollow panels are used for facade, fence, canopy, ceiling, screen, window, and other applications. You can select patterns from our catalog or send us drawings or pictures for custom design creation.

Advanced Manufacturing Equipment

With imported CNC cutting machines, punching machines, professional software, experienced designers, and extensive global project experience, you can trust us with your architectural projects.

Modern powder coating line for superior surface finishing.

To meet individual customer requirements, you can select patterns from our renderings or provide custom designs. Our goal is to create the best customized products for each client. Aluminum hollow panel sizes can be adjusted with design element considerations, not simple scaling. Our standard size is 1200x2400mm, with larger sizes requiring panel combination.

Perforated Aluminum Metal Cladding Project Reference

Aluminum panels for fence decoration applications.
