products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Perforated Aluminum Facade
Created with Pixso.

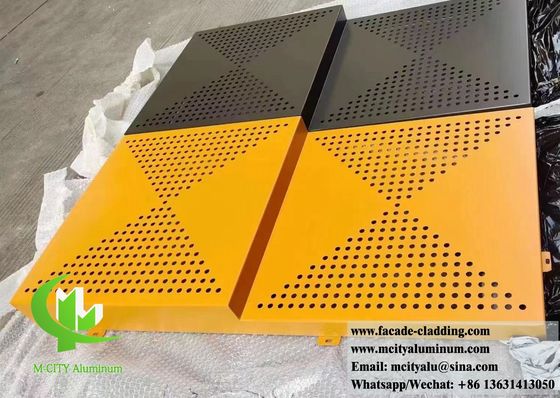

Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding

Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding

Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding

Brand Name: M-CITY
Model Number: MCT- perforated metal screen 2
MOQ: 80square meters
Price: USD25-USD65/square meter
Supply Ability: 50000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Max. Size:
1600x4000mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
Perforated Aluminum Panel
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
50000sq.m
Highlight:

powder coated aluminum facade sheet

,

outdoor metal screen cladding

,

perforated aluminum wall facade

Product Description

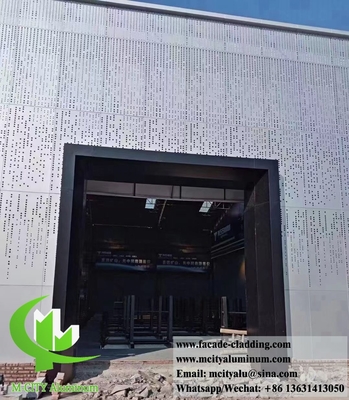

Outdoor Metal Screen Aluminium Sheet for Building Wall Facade Cladding
Powder coated aluminum sheets designed for exterior building facades, wall cladding, and architectural screening applications.
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 0 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 1 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 2 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 3 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 4 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 5 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 6 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 7 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 8 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 9
3D Facade Design Metal Cladding
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 10 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 11
Perforation Aluminum Solid Panels
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 12 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 13
Aluminum Cladding Installation Guide
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 14 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 15
Corrugated Perforated Screen Aluminum Sheet
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 16
CNC Engraved Metal Facade Aluminum Sheet Assembly
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 17
Exterior Aluminum Decorative Panel with Round Holes Perforation
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 18
3D Facade Design Metal Clad Aluminum Facades Details
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 19
Custom Manufacturing Capabilities
M-City Aluminum is a professional manufacturer with an excellent design team, skilled fabrication workers, and advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets.
We provide comprehensive support including site measurement by our engineers, shop drawing preparation, and installation guidance to ensure smooth project execution.
All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only frame preparation, bolts, and sealants for gaps between panels, making it an efficient solution for building envelope and decoration.
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 20
Product Specifications
Metal cladding panels are made from high-quality, high-strength aluminum alloy sheet with common thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is within 2000mm, maximum length within 6000mm, using aluminum alloy series 3003-H14 or 1100-H14.
The panel system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquakes.
High-efficiency sound insulation materials can be installed inside aluminum panels when sound insulation is required.
Manufacturing Facility
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 21
Global Shipping
Aluminum cladding containers are loaded and shipped by sea to destinations worldwide.
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 22
Custom Perforation and Laser Cut Designs
M-City Aluminum factory produces various metal facade panels with perforation designs or laser cut designs. We welcome your facade design requirements.
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 23
3D Metal Facade for Wall Cladding Details
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 24
Frequently Asked Questions
  • Are you a trading company or factory?
    We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.
  • Can you accept our own designs?
    Yes. Size, color, patterns, and designs can be customized according to your project requirements.
  • What is your minimum order quantity (MOQ)?
    We accept small orders with an MOQ of 80 square meters.
  • What is the delivery time?
    Orders are completed within 30 days after receiving the deposit.
Contact Information
WhatsApp: +86 13631413050
Email: mcityalu@sina.com
Any patterns or designs can be manufactured. You can provide us with drawings or pictures for customization.
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 25
M-CITY Metal Aluminum Facade Cladding Specification
Aluminum panels are made from Aluminum alloy 3003 series and serve as curtain walls for wall protection and non-lighting walls, replacing mosaic and general sandblasting facades. Their light texture and excellent strength characteristics provide advantages for high-rise building applications.
In high-rise buildings subject to various loads, particularly wind pressure, aluminum panels offer superior performance compared to mosaic materials that are prone to falling off due to wind pressure and deformation.
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 26
Powder Coated Aluminum Facades
Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and other applications. You can select patterns from our catalog or send us drawings or pictures for custom design.
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 27
Advanced CNC Cutting Technology
With imported CNC cutting machines, punching machines, professional software, experienced designers, and extensive global project experience, you can trust us with your facade projects.
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 28 Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 29
To meet individual customer requirements, you can select patterns directly from our renderings or provide your favorite patterns for customization. Our goal is to create the best custom products for each customer.
Aluminum hollow panel sizes can be adjusted—not simply zoomed, but redesigned according to customer dimensions while maintaining design elements. Our standard size is 1200x2400mm, with larger sizes achieved through combination.
Perforated Aluminum Metal Cladding Project Reference
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 30
Fence Decoration Applications
Powder Coated Perforated Aluminum Facade Panel with Customizable RAL Colors and 3mm Thickness for Building Cladding 31
