products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Decorative Laser Cut Panels
Created with Pixso.

Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding

Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding

Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding

Brand Name: M-CITY
Model Number: MCT-laser cut aluminum screen
MOQ: 80square meters
Price: USD25-USD55/square meter
Supply Ability: 30000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Max. Size:
1600x4000mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
Metal Screen Aluminum
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
30000sq.m
Highlight:

powder coated aluminum facade panels

,

laser cut metal wall cladding

,

decorative aluminum screen panels

Product Description

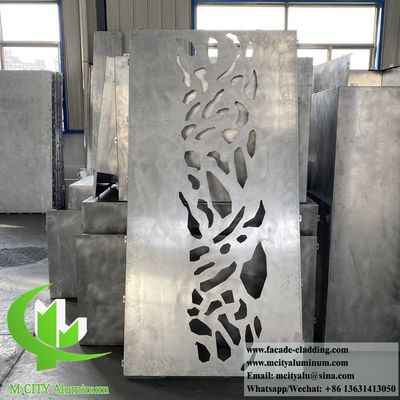

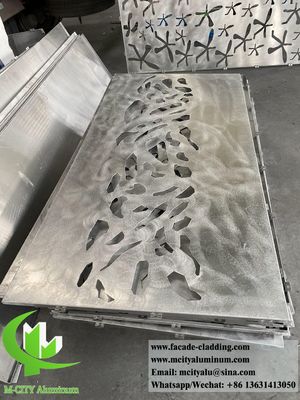

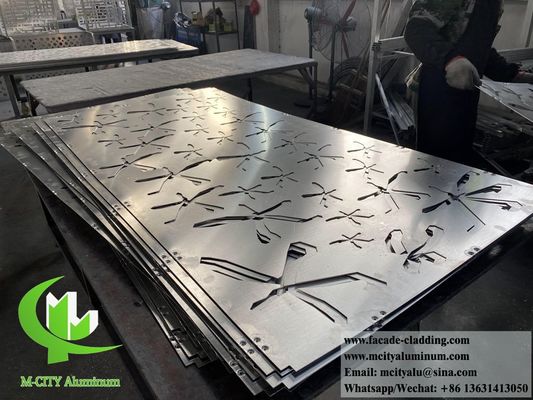

Laser Cut Metal Screen Panels - Aluminum Sheet Decoration Material
High-quality powder coated aluminum sheet decoration material for building wall facade cladding with precision laser cutting technology.
Product Gallery
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 0 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 1 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 2 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 3 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 4 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 5
3D Facade Design Metal Cladding
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 6 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 7
Perforation Aluminum Solid Panels
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 8 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 9
Installation Guide
How to install the aluminum cladding:
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 10 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 11
Corrugated Perforated Screen Aluminum Sheet
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 12
CNC Engraved Metal Facade Aluminum Sheet Assembly
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 13
Exterior Aluminum Decorative Panel with Round Holes Perforation
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 14
3D Facade Design Metal Clad Aluminum Facades Details
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 15
Manufacturing Capabilities
As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers with advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets.
We provide comprehensive support including site measurement by our engineers, shop drawing preparation, and technical assistance for smooth installation.
Installation Process
All aluminum panels are prefabricated according to customer designs and drawings. Installation requires:
  • Frame construction
  • Bolts for panel attachment
  • Sealants for gap finishing
This streamlined process makes building envelope and decoration projects straightforward and efficient.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 16
Technical Specifications
Our metal cladding panels are manufactured from high-quality, high-strength aluminum alloy sheet with the following specifications:
  • Common thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm
  • Maximum width: 2000mm
  • Maximum length: 6000mm
  • Aluminum alloy series: 3003-H14 or 1100-H14
Panel construction includes panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel or riveted on small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid structure that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquakes.
For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.
Manufacturing Facility
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 17
Global Shipping
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 18
Product Range
M-City Aluminum factory produces various metal facade panels with perforation designs or laser cut designs. We welcome custom requirements for your facade design projects.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 19 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 20
Frequently Asked Questions
Are you a trading company or factory?
We are a 100% professional manufacturer with more than 50 producing machines and over 100 staff members.
Can you accept our own designs?
Yes. Size, color, patterns, and designs can be customized according to your project requirements.
What is your MOQ (Minimum Order Quantity)?
We accept small orders with a minimum of 80 square meters.
What is the delivery time?
Production is typically completed within 30 days after receiving the deposit.
Contact Information
WhatsApp: +86 13631413050
Email: mcityalu@sina.com
Custom Design Capability
Any patterns or designs can be manufactured. You can provide drawings or pictures for custom fabrication.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 21
M-CITY Metal Aluminum Facade Cladding Specification
Aluminum panels are made from Aluminum alloy 3003 series and serve as curtain walls for wall protection and non-lighting walls. They provide excellent alternatives to mosaic and general sandblasting facades.
The light yet strong characteristics make these panels ideal for high-rise buildings where various loads, particularly wind pressure, are significant concerns. Traditional mosaic materials are prone to falling off under high wind pressure and deformation, while aluminum panels maintain structural integrity.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 22
Applications
Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and various architectural applications. Choose patterns from our catalog or provide custom drawings and pictures for personalized designs.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 23
Advanced Manufacturing Equipment
We utilize imported CNC cutting machines, punching machines, professional software, and experienced designers to deliver quality products for projects worldwide.
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 24 Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 25
Customization Options
We meet individual customer requirements by offering pattern selection from renderings or custom pattern development. Our standard size is 1200x2400mm, with customization available for different dimensions through design element adjustments rather than simple scaling.
Project References
Perforated aluminum metal cladding project reference:
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 26
Fence Decoration Applications
Powder Coated Laser Cut Aluminum Panel with Customizable RAL Colors for 3mm Thickness Facade Cladding 27
