3mm Powder Coated Aluminum Facade Panel with Customizable RAL Colors and High-Strength Aluminum Alloy

Brand Name:	M-CITY
Model Number:	MCT-laser cut metal panel 0922
MOQ:	80square meters
Price:	USD30-USD100/Sq.m
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

1.5-10mm

Surface Treatment:

Powder Coated, Pvdf Paint

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1500x5000mm

Contact Email:

Mcityalu@sina.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Outdoor Decorative Screens

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

aluminum facade panels 3mm

metal cladding system powder coated

external aluminum cladding panels

Product Description

External Metal Cladding System - Aluminum Facade Panels

Premium 3mm powder coated aluminum facade panels designed for external metal cladding systems.

Surface Treatment & Coating

Our aluminum cladding undergoes comprehensive surface preparation including cleaning and chromate conversion treatment before advanced spray coating application.

Fluorocarbon coating systems include primer, topcoat, and varnish layers with KYNAR500 as the primary component. Available in PVDF 2-coat and PVDF 3-coat systems offering exceptional:

Superior corrosion and weather resistance
Protection against acid rain, salt spray, and air pollutants
Excellent thermal stability for extreme temperature conditions
UV resistance maintaining color integrity without fading or powdering
Extended service life with minimal maintenance

We utilize premium fluorocarbon coatings from world-renowned manufacturers including PPG, AKZO NOBEL, and NIPPON. Extensive color selection available from manufacturer standards or custom color matching.

Durable Outdoor Decorative Screens

Panel Construction & Specifications

Solid aluminum cladding panels are manufactured from high-strength aluminum alloy sheets with standard thickness options:

Available thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm
Maximum sheet width: 2000mm
Maximum sheet length: 6000mm
Aluminum alloy series: 3003-H14 or 1100-H14

Panel assembly consists of three main components: panel, reinforcement bar, and bracket system. Corner brackets can be either stamped directly from the panel and bent to form, or riveted to the panel's folded edges.

Reinforcement bars connect to welded screws on the panel back, creating a unified structural system that significantly enhances strength and rigidity. This construction ensures long-term flatness, wind pressure resistance, and earthquake performance.

Optional high-efficiency sound insulation materials can be installed within the aluminum panel cavity for acoustic requirements.

Custom Manufacturing Capabilities

As a professional manufacturer, M-City Aluminum maintains an excellent design team, skilled fabrication workforce, and advanced CNC facilities. We produce aluminum panels according to customer specifications for:

Custom dimensions and specifications
Specialized shapes and structural requirements
Color matching and finish options
Competitive budget considerations

We provide engineering support including site measurement services and shop drawing preparation to ensure smooth installation. All aluminum panels are prefabricated according to customer designs, requiring only frame preparation, bolt installation, and sealant application for gap finishing.

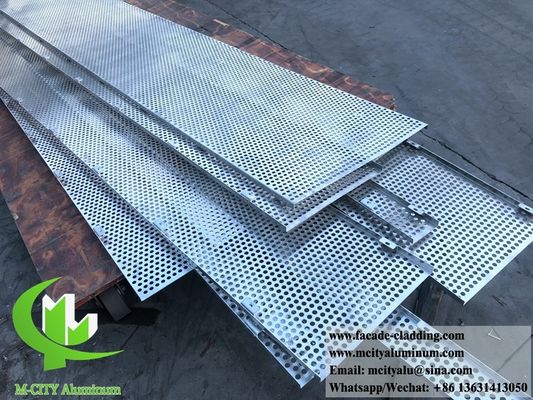

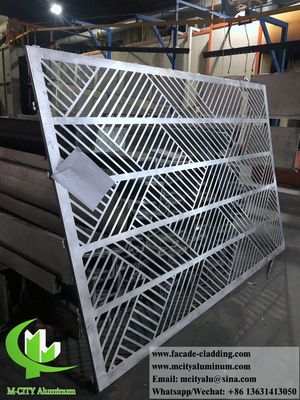

Perforated & Laser Cut Designs

M-City Aluminum produces various metal cladding panels with perforation patterns or laser cut designs. We welcome facade design requirements and can create custom patterns from drawings or images.

Project Reference - Beijing Architectural Facade

3D Metal Facade Wall Cladding Details

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a 100% professional manufacturer with over 50 production machines and more than 100 staff members.

Can you accept custom designs?

Yes. Size, color, patterns, and designs can be customized according to your project requirements.

What is your minimum order quantity?

We accept small orders with a minimum of 80 square meters.

What is the delivery time?

Production is typically completed within 30 days after receiving deposit.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Custom Pattern Capability: Any patterns or designs can be manufactured. You can provide drawings or pictures for custom fabrication.

M-CITY Metal Cladding Aluminum Specifications

Aluminum panels are manufactured from 3003 series aluminum alloy sheets. As curtain wall systems, they serve as wall protection and non-lighting facades, replacing traditional mosaic and sandblasted surfaces.

The lightweight nature combined with excellent strength characteristics makes these panels ideal for high-rise buildings where various loads, particularly wind pressure, are significant concerns. Unlike mosaic surfaces that may detach under high wind pressure and deformation, aluminum panels maintain structural integrity.

Powder Coating Decorative Aluminum Panels

Aluminum hollow panels are suitable for facades, fences, canopies, ceilings, screens, windows, and various architectural applications. Choose patterns from our catalog or provide drawings/pictures for custom design.

CNC Cutting Technology

With imported CNC cutting machines, punching equipment, professional design software, and extensive global project experience, we provide reliable solutions for your facade requirements.

To meet individual customer requirements, you can select patterns from renderings or provide custom designs. Our standard panel size is 1200x2400mm, with custom sizing available through design element adjustment rather than simple scaling. Larger dimensions require panel combination.

Perforated Aluminum Cladding Project Reference

Fence Decoration Applications
