PVDF Coated Anti-Rust Perforated Metal Facade Aluminum Wall Cladding with Customizable Designs

Brand Name:	M-CITY
Model Number:	MCT-perforation cladding 09
MOQ:	80square meters
Price:	USD30-USD100/Sq.m
Supply Ability:	30000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

1.5-10mm

Surface Treatment:

Powder Coated, Pvdf Paint

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1500x5000mm

Contact Email:

Mcityalu@sina.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Aluminum Wall Facade

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

30000sq.m

Highlight:

perforated metal facades aluminum

aluminum wall cladding PVDF

anti rust metal facades

Product Description

Perforated Metal Facades Aluminum Wall Cladding

Professional manufacturer M-City Aluminum offers custom aluminum panels with PVDF nature color anti-rust coating for durable and attractive building facades.

As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers with advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets. Our engineers can visit sites to measure installation specifications and create shop drawings for smooth installation.

All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only building a frame, preparing bolts, and using sealants to finish gaps between panels, making it an efficient solution for building envelope and decoration.

Product Construction

Our metal facade panels are made from high-quality, high-strength aluminum alloy sheets with common thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm, maximum length is 6000mm, using aluminum alloy series 3003-H14 or 1100-H14.

The system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel, bent and formed, or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquakes. For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.

M-City Aluminum factory produces various metal cladding panels with perforation designs or laser cut designs. We welcome your facade design requirements.

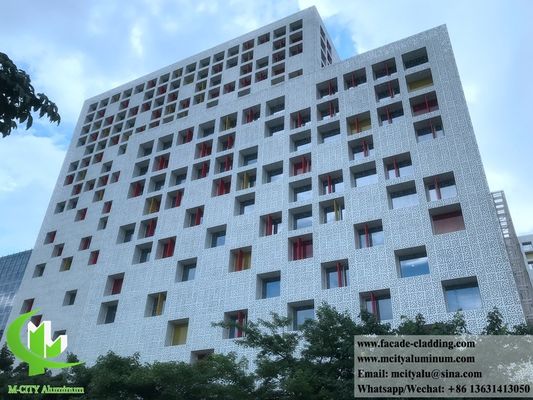

Project Reference - Beijing Architectural Metal Cladding

3D metal facade for wall cladding details.

Frequently Asked Questions

Are you a trading company or factory?
We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.
Can you accept our own designs?
Yes. Size, color, patterns, and designs can be customized according to your project requirements.
What is your MOQ order?
We accept small orders with a minimum order quantity of 80 square meters.
What is the delivery time?
Production is completed within 30 days after receiving the deposit.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns/designs can be manufactured. You can provide us with drawings or pictures.

M-CITY Metal Facade Specifications

Aluminum panels are made from Aluminum alloy 3003 series, serving as curtain walls for wall protection and non-lighting walls, replacing mosaic and general sandblasting facades. Their light texture and excellent strength characteristics provide advantages for high-rise buildings, particularly in withstanding various loads and wind pressure where traditional materials may fail.

Materials	Aluminum alloy 1100 / 3003 series
Standard Size	1000mm x 2000mm
Other Sizes	Max. Width: 1200mm, Max. Length: 5000mm
Thickness	1mm - 10mm
Surface Treatment	Powder coated, PVDF paint
Color	Any RAL colors, wooden grain color, stone color, etc.
Coating	Akzo Nobel, PPG, etc.
Application	Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers
Patterns	Any patterns can be manufactured - supply drawings or pictures

Painting Aluminum Decorative Panel

Aluminum hollow panels are used for facades, fences, canopies, ceilings, screens, windows, and more. You can select patterns from our catalog or send us drawings or pictures for custom design.

CNC Cutting Technology

With imported CNC cutting machines, punching machines, professional software, experienced designers, and global project experience, you can trust us with your projects.

Powder coating line for consistent, high-quality finishes.

To meet individual customer requirements, you can select patterns from renderings or customize your favorite designs. Our goal is to create the best custom products for each customer. Aluminum hollow panel sizes can be adjusted with design elements reconfigured accordingly, not simply scaled. Our standard size is 1200x2400mm, with larger sizes requiring combination.

Perforated Aluminum Metal Cladding Project Reference

For Fence Decoration
