PVDF Powder Coated Perforated Aluminum Facade Panel with 3mm Thickness and Customizable RAL Colors for Wall Cladding

PVDF Powder Coated Perforated Aluminum Facade Panel with 3mm Thickness and Customizable RAL Colors for Wall Cladding

Brand Name:	M-CITY
Model Number:	MCT-perforated metal facade
MOQ:	80square meters
Price:	USD25-USD55/square meter
Supply Ability:	50000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Certification:

ISO9000

Material:

Aluminum Alloy

Recommand Size:

1000x2000mm

Aluminum Thickness:

3mm,2mm, 2.5mm, 4mm To 10mm

Surface Treatment:

Powder Coated, Pvdf Paint, Wood Grain

Color:

Any RAL Color, Wood Grain, Stone Color, Brass, Bronze

Applications:

Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony

Max. Size:

1500x4000mm

Contact Email:

Mcityalu@163.com

Processing:

Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing

Technology:

Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved

Keywords:

Laser Cut Metal Screen

Packaging Details:

Export packing, plywood cases, metal cases, protect film+ bubble film

Supply Ability:

50000sq.m

Highlight:

perforated aluminum sheet for wall cladding

PVDF coated perforated metal sheet

3mm thick white perforated facade

Product Description

White PVDF Powder Coated Perforated Aluminum Sheet for Wall Cladding

High-quality 3mm thick aluminum sheets with PVDF powder coating in white, specifically designed for architectural wall cladding applications. These perforated metal sheets offer excellent durability and aesthetic appeal for modern building facades.

3D Facade Design Metal Cladding

Perforation Aluminum Solid Panels

Aluminum Cladding Installation Guide

Corrugated Perforated Screen Aluminum Sheet

CNC Cutting Metal Facade Assembly

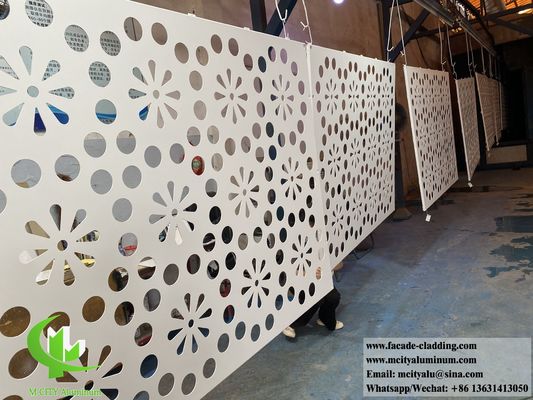

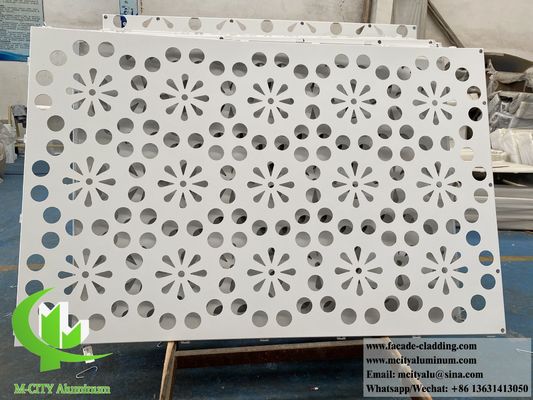

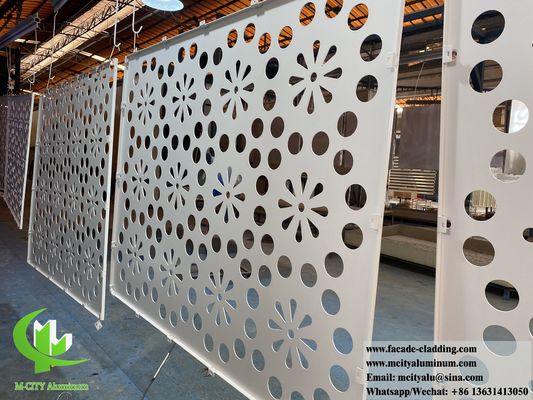

Exterior Aluminum Decorative Panel with Round Holes

3D Metal Clad Aluminum Facades Details

Custom Manufacturing Capabilities

As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers with advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets. Our engineers can visit project sites to measure installation specifications and create detailed shop drawings to ensure smooth installation.

All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only frame preparation, bolts, and sealants to finish gaps between panels, making it an efficient solution for building envelope and decoration.

Product Specifications

Our metal cladding panels are manufactured from high-quality, high-strength aluminum alloy sheet. Standard thickness options include 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm with maximum length of 6000mm, using aluminum alloy series 3003-H14 or 1100-H14.

The panel system consists of panel, reinforce bar, and bracket. Corner brackets can be directly stamped from the panel, bent and formed, or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid unit that enhances strength, rigidity, and ensures flatness with excellent resistance to wind pressure and earthquake forces. For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.

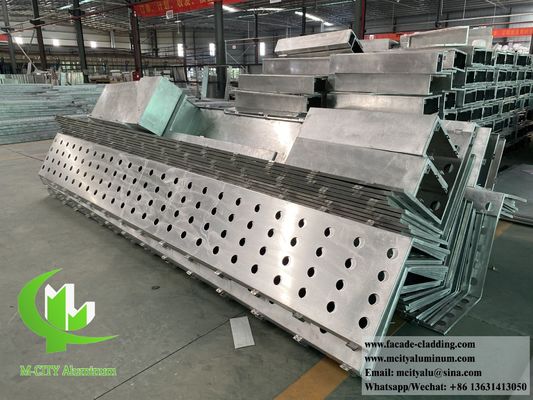

Manufacturing Facility

Global Shipping

M-City Aluminum produces various metal facade panels with perforation designs or laser cut patterns. We welcome your facade design requirements and specifications.

3D Metal Facade Wall Cladding Details

Frequently Asked Questions

Are you a trading company or factory?

We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.

Can you accept our own designs?

Yes. Size, color, patterns, and designs can be customized according to your project requirements.

What is your minimum order quantity?

We accept small orders with a minimum order quantity of 80 square meters.

What is the delivery time?

Production is typically completed within 30 days after receiving deposit payment.

Contact Information

WhatsApp: +86 13631413050

Email: mcityalu@sina.com

Any patterns or designs can be manufactured. You can provide us with drawings or pictures for custom production.

M-CITY Metal Aluminum Facade Cladding Specification

Aluminum panels are manufactured from Aluminum alloy 3003 series. As a curtain wall system, they are used for wall protection and non-lighting walls, replacing traditional mosaic and sandblasting facades. The light texture and excellent strength characteristics make these panels ideal for high-rise buildings, where they withstand various loads, particularly wind pressure, without the deformation issues common with traditional materials.

Powder Coated Aluminum Facades

Aluminum hollow panels are suitable for facades, fences, canopies, ceilings, screens, windows, and various architectural applications. You can select patterns from our catalog or provide drawings/pictures for custom design.

CNC Cutting Technology

We utilize imported CNC cutting machines, punching machines, professional software, and experienced designers. With numerous completed projects worldwide, you can trust us with your facade requirements.

To meet individual customer requirements, you can select patterns from our renderings or provide custom designs. Our goal is to create the best customized products for each client. Aluminum hollow panel sizes can be adjusted - not simply zoomed, but with design elements reconfigured according to customer dimensions. Our standard size is 1200x2400mm, with larger sizes requiring panel combination.

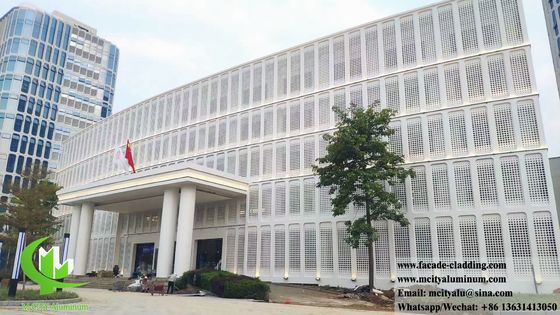

Perforated Aluminum Metal Cladding Project Reference

Fence Decoration Applications
