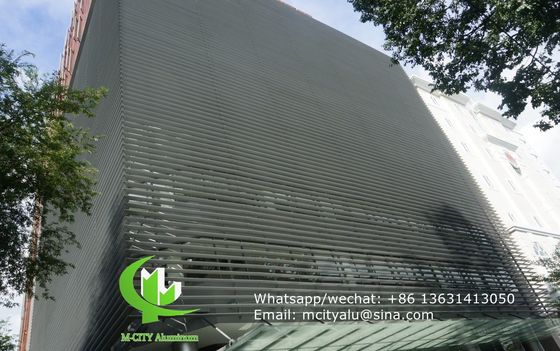

Powder Coated Oval Shape 6063-T5/T6 Aluminum Sun Louver Aerofoil Profile for Facade and Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

metal oval aluminum sun louver

aluminum aerofoil louver for window

sun louver facade aluminum profile

Product Description

Aerofoil Profile Aluminum Sun Louver

Powder coated architectural aerofoil profile aluminum louver with oval shape for facade curtain wall applications.

M-CITY Aerofoil/Airfoil Louver blade series are based on aluminum extrusion profile (6063-T5/T6), primarily featuring ellipse shape aluminum profiles. These louvers effectively deflect thermal gain from incident sun while integrating light control into the building envelope. Beyond outstanding functionality, they help architects create distinctive building surface aesthetics. Well-designed louver configurations provide effective shading against low or high sun angles while making strong architectural statements.

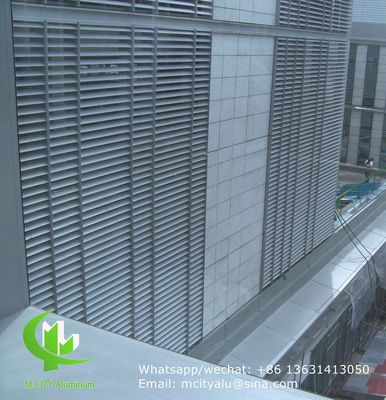

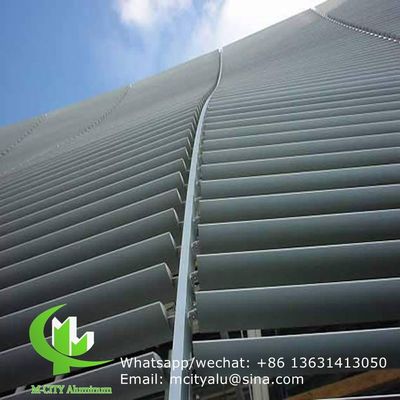

Vertical Louver Aerofoil System Project

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers feature blade widths from 100mm to 600mm tip to tip. Extruded louvers offer enhanced durability and strength. Various louver shapes, compositions, and finishes can create specific daylighting effects while establishing unique aesthetics.

Fabricated louvers available in nearly any size
Aerofoil composition primarily metal (aluminum), with options including glass and wood
Surface finishes include polyester powder coating, fluorocarbon painting (PVDF paint), and anodizing
All finishes resist sun and weather damage

Technical Specifications

Parameter	Specification
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project.

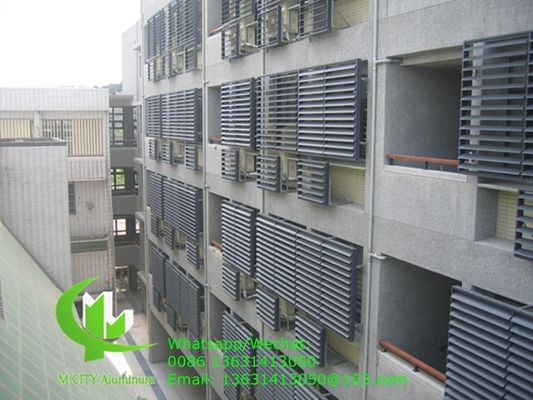

For Fence Decorative Applications
