150mm Powder Coated Fixed System Aluminum Louver for Window Sunshade and Facade

Brand Name:	M-CITY
Model Number:	MCT-AF100
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

150mm fixed sun louver

aluminum aerofoil sunshade

architectural window sun louver

Product Description

150mm Solar Shading Fixed Sun Louver - Architectural Aerofoil Profile Aluminum Louver

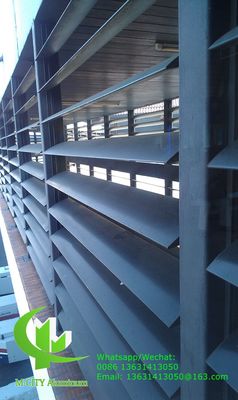

High-quality 150mm horizontal fixed sun louver featuring powder-coated architectural aerofoil profile aluminum construction with oval shape design, specifically engineered for window sunshade applications.

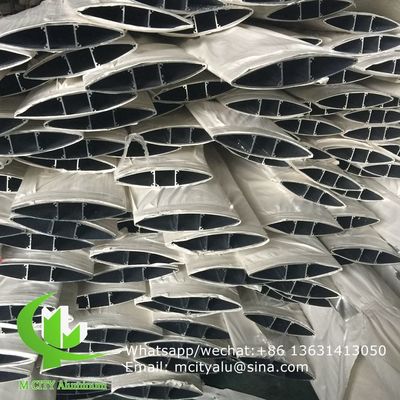

M-CITY Aerofoil/Airfoil Louver Blade Series: Our premium aluminum extrusion profiles (6063-T5/T6) feature elliptical shape designs that effectively deflect thermal gain from incident sun while integrating light control into the building envelope. These louvers deliver outstanding functionality while helping architects create distinctive building surface aesthetics.

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths from 100mm to 600mm tip to tip. Our extruded louvers offer enhanced durability and superior strength. Various louver shapes, compositions, and finishes can create specific daylighting effects while establishing unique aesthetics.

Product Specifications

Specification	Details
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.
