Powder Coated Oval Shape Aluminum Sun Louver with 6063-T5/T6 Aluminum Alloy for Facade and Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

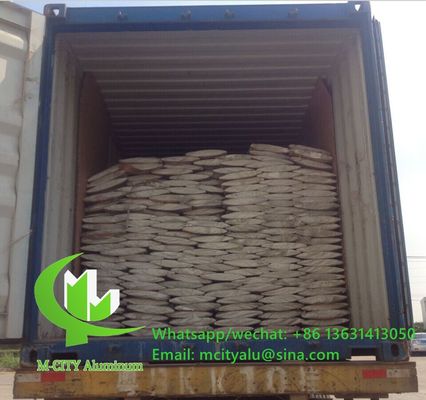

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

metal oval aluminum sun louver

aerofoil profile aluminum louver

aluminum louver for window facade

Product Description

Metal Oval Aluminum Sun Louver - Aerofoil Profile for Window Facade

Architectural aerofoil profile aluminum louver with oval shape, powder coated for facade curtain wall applications.

M-CITY Aerofoil/Airfoil Louver Blade Series

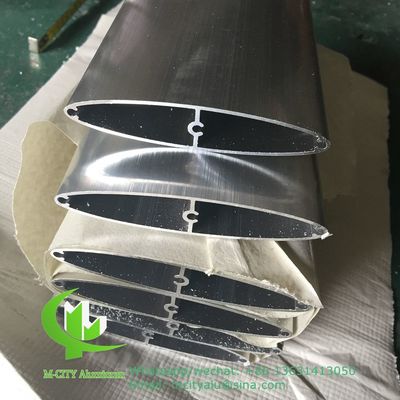

Our aerofoil fin louvers are manufactured from aluminum extrusion profile (6063-T5/T6), primarily featuring ellipse-shaped aluminum profiles. These louvers effectively deflect thermal gain from incident sun exposure while integrating light control into the building envelope.

Beyond delivering outstanding functionality, our louver systems help architects create distinctive building surface aesthetics. Well-designed louver configurations provide striking visual appeal while effectively shading facades against low or high sun angles. Design considerations such as louver size and composition significantly impact performance, helping improve energy efficiency in your projects.

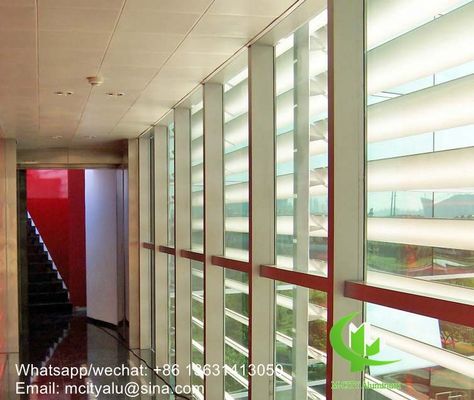

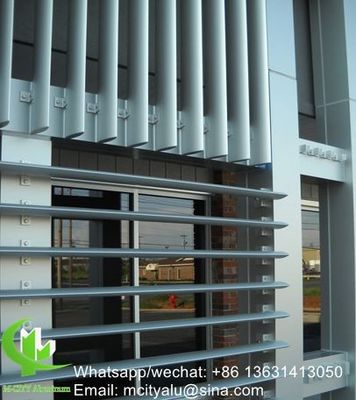

Vertical Louver Aerofoil System Project

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design specifications

Available Sizes and Specifications

Width sizes from 100mm to 600mm are available to meet various project requirements.

M-CITY aerofoil louvers feature blade widths from 100mm to 600mm tip to tip. Our extruded louvers offer superior durability and strength compared to fabricated alternatives. Louver shapes, composition, and finishes can be customized to create specific daylighting effects while establishing unique aesthetic statements.

Fabricated louvers available in nearly any size
Aerofoil composition primarily metal (aluminum), with options including glass and wood
Surface finishes include polyester powder coating, fluorocarbon painting (PVDF paint), and anodizing
All finishes provide excellent resistance to sun and weather damage

Specification	Details
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Aluminum Products

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.

For Fence Decorative Applications
