100mm Horizontal Powder Coated Aluminum Louver Aerofoil Sun Louver for Window Sunshade

Brand Name:	M-CITY
Model Number:	MCT-AF100
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

fixed aluminum sun louver

architectural aerofoil sunshade

window sunshade aluminum louver

Product Description

Aerofoil Aluminum Sunshade Louver Systems

M-CITY aerofoil aluminum louver systems provide effective solar shading and thermal deflection while creating distinctive architectural aesthetics. Our horizontal fixed sun louvers feature elliptical aluminum profiles designed to integrate light control into building envelopes.

Product Overview

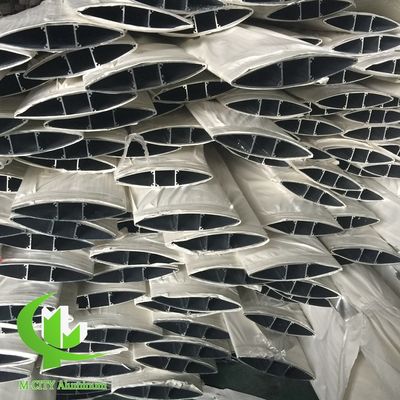

M-CITY aerofoil louvers are manufactured from aluminum extrusion profiles (6063-T5/T6) in elliptical shapes. These systems effectively deflect thermal gain from incident sunlight while providing architects with versatile design options for creating striking building facades. Well-configured louver arrangements provide optimal shading against various sun angles while enhancing architectural aesthetics.

Project Example: Vertical Louver System in Hong Kong

Installation Methods

Method	Description
A	Fix to support frame with screws
B	Using bracket and screws to support frame
C	Using endcaps to fix on two ends
D	As per architect's design specifications

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths from 100mm to 600mm tip to tip. Our extruded aluminum louvers offer superior durability and structural strength. The composition and finish options allow for specific daylighting effects and diverse aesthetic expressions.

Technical Specifications

Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Manufacturing Capabilities

We also manufacture aluminum decorative panels (aluminum solid panels) for building facades, curtain walls, cladding, fencing, windows, screens, balconies, and other architectural applications.

Fence Decorative Applications

We welcome your drawings and inquiries. Our team is committed to providing comprehensive support for your architectural projects.

Please contact us for more information and project support
