Powder Coated 6063-T5/T6 Aluminum Alloy Aerofoil Louver for Sun Shading in 100mm to 600mm Sizes

Brand Name:	M-CITY
Model Number:	MCT-AF100
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

fixed aluminum sun louver

aerofoil window sunshade

architectural solar shading louver

Product Description

Aerofoil Aluminum Louver Sunshade System

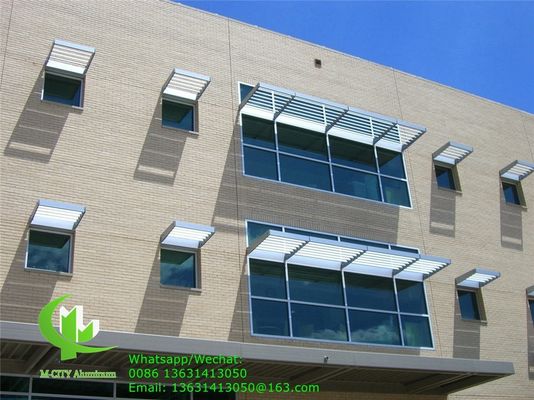

M-CITY's horizontal fixed sun louver system features architectural aerofoil profile aluminum louvers with oval shapes designed for window sunshading and solar control.

Product Overview

The M-CITY aerofoil (fin) louvers are manufactured from aluminum extrusion profiles (6063-T5/T6) with elliptical shapes. These architectural louvers effectively deflect thermal gain from incident sun while integrating light control into the building envelope. Beyond their outstanding functionality, they help architects create distinctive building surface aesthetics through well-designed configurations that shade facades against various sun angles.

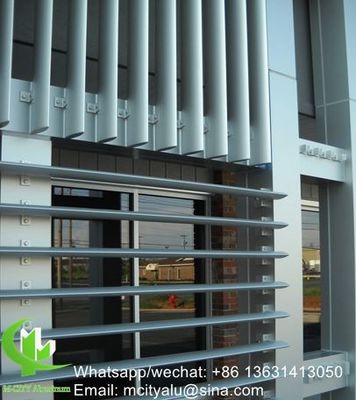

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes

Louver blade widths from 100mm to 600mm tip to tip are available.

Extruded louvers provide enhanced durability and strength. Various louver shapes, compositions, and finishes can create specific daylighting effects while establishing unique aesthetics.

Fabricated louvers can be created at nearly any size
Aerofoil composition is typically aluminum, with options including glass and wood
Surface finishes include polyester powder coating, fluorocarbon painting (PVDF paint), and anodizing
All finishes resist damage from sun exposure and weather conditions

Technical Specifications

Materials:	Aluminum extrusion (6063-T5/T6)
Size/Width:	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length:	From 1000mm-7000mm
Thickness:	From 1.0mm-3.0mm
Surface finish:	Powder coated, fluorocarbon paint, Anodized
Color:	Any RAL colors and wooden grain colors available
Coating:	Akzo Nobel, PPG, etc.
Applications:	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Products

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

For Fence Decorative Applications

Welcome to send us drawings and inquiries - we will try our best to support your project.

Please contact us for more information and pricing
