Horizontal Powder Coated Aluminum Louver Aerofoil Sun Louver in 100mm to 600mm Sizes for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF200
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

oval aluminum sun louver

metal aerofoil louver facade

horizontal aluminum louver curtain wall

Product Description

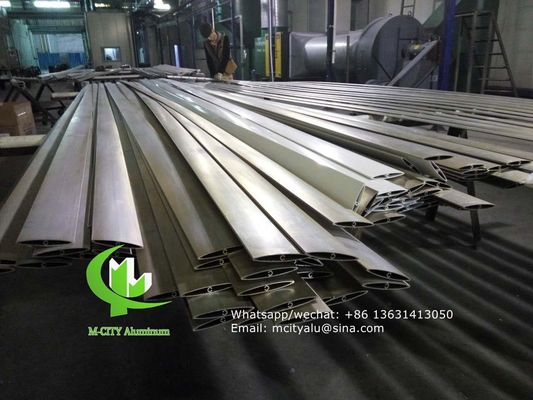

Horizontal Metal Aluminum Sun Louver - Aerofoil Profile with Oval Shape

M-CITY Aerofoil/Airfoil Louver blade series are precision-engineered aluminum extrusion profiles (6063-T5/T6) featuring elliptical shapes designed for facade curtain wall applications. These architectural louvers effectively deflect thermal gain from incident sunlight while integrating sophisticated light control into the building envelope.

Beyond delivering outstanding functionality, these louvers help architects create distinctive visual statements for building surfaces. Well-designed louver configurations provide effective shading against both low and high sun angles while enhancing the building's aesthetic appeal.

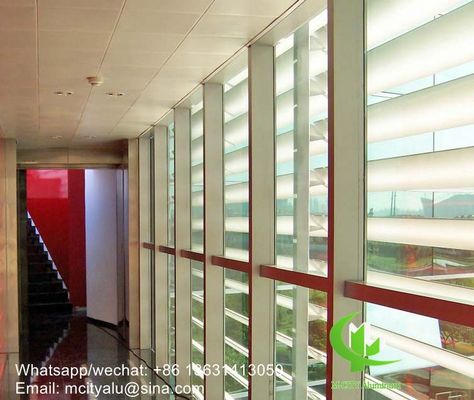

Vertical Louver Aerofoil System Project Example

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw

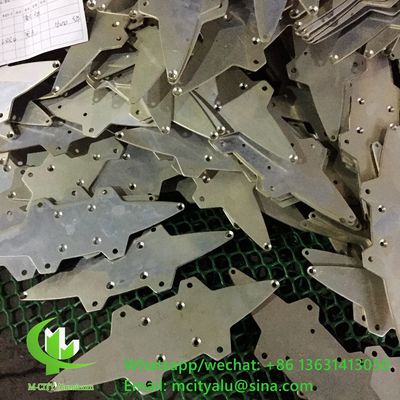

B	Using Bracket and screw to the support frame
C	Using the Endcaps to fix on two ends
D	As per Architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths from 100mm to 600mm tip to tip. The extruded construction provides enhanced durability and structural strength. Louver shapes, composition, and finishes can be customized to create specific daylighting effects and establish unique architectural aesthetics.

Fabricated louvers can be created at nearly any size
Aerofoil composition is typically aluminum, with options including glass and wood
Metal louvers feature finishes including polyester powder coating, flurocarbon painting (PVDF), and anodizing
All finishes provide excellent resistance to sun exposure and weather conditions

Technical Specifications

Parameter	Specification
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface finish	Powder coated, flurocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Aluminum Products

We also manufacture aluminum decorative panels (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.
