400mm Powder Coated Aluminum Sun Louver Aerofoil Louver for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF200
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

400mm aluminum sun louver

oval metal aerofoil louver

facade curtain wall louver

Product Description

400mm Metal Aluminum Sun Louver Aerofoil System

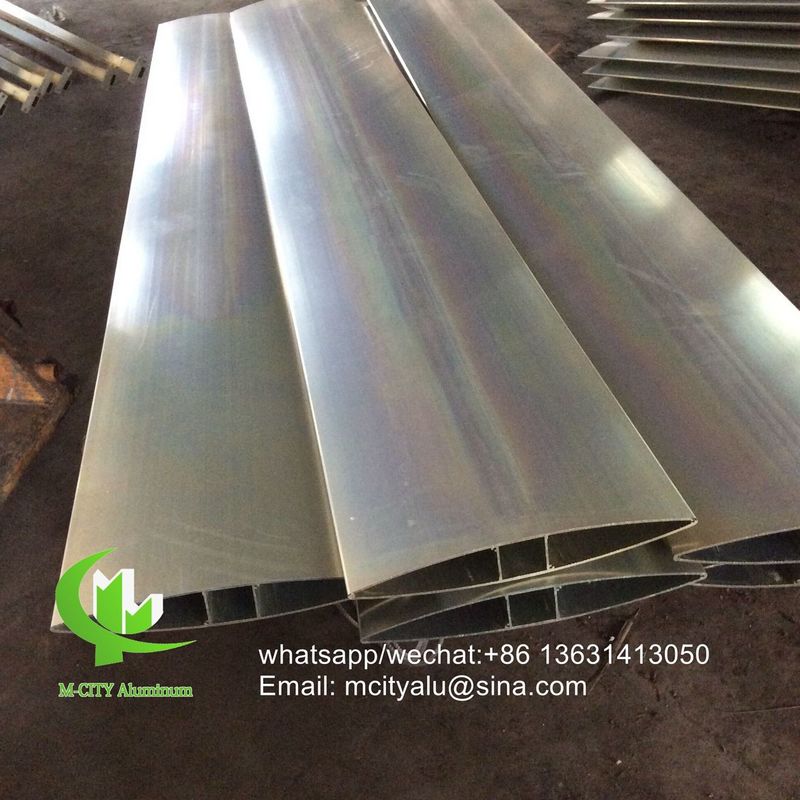

M-CITY Aerofoil/Airfoil Louver blade series are precision-engineered aluminum extrusion profiles (6063-T5/T6) featuring elliptical shapes designed to deflect thermal gain from incident sun while integrating light control into building envelopes.

These architectural louvers deliver outstanding functionality while helping architects create distinctive building aesthetics. Well-designed configurations effectively shade facades against various sun angles while making strong visual statements.

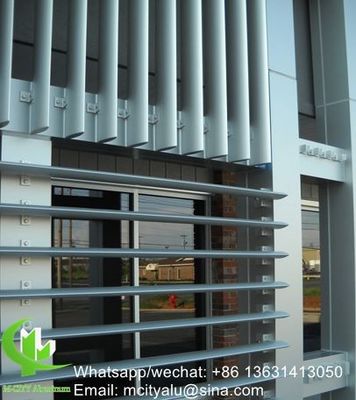

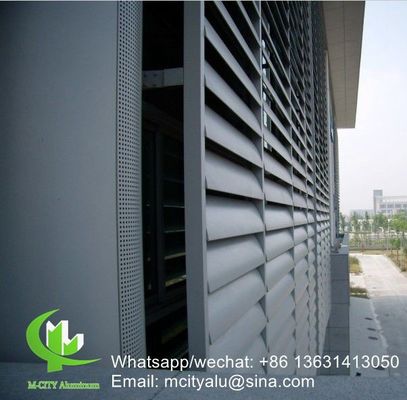

Vertical Louver Aerofoil System Project

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using Bracket and screw to the support frame
C	Using the Endcaps to fix on two ends
D	As per Architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers feature blade widths from 100mm to 600mm tip to tip. Extruded construction ensures superior durability and strength. Louver shapes, composition, and finishes can create specific daylighting effects while establishing unique aesthetics.

Fabricated louvers available in nearly any size
Aerofoil composition primarily aluminum with other options available
Finishes include polyester powder coating, PVDF paint, and anodizing
All finishes resist sun and weather damage

Technical Specifications

Parameter	Specification
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface finish	Powder coated, flurocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Aluminum Products

We also manufacture aluminum decorative panels (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.
