150mm Horizontal Fixed Powder Coated Aluminum Sun Louver for Architectural Facade and Window Sunshade

Brand Name:	M-CITY
Model Number:	MCT-AF100
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

150mm horizontal aluminum sun louver

fixed architectural aerofoil louver

window sunshade aluminum louver

Product Description

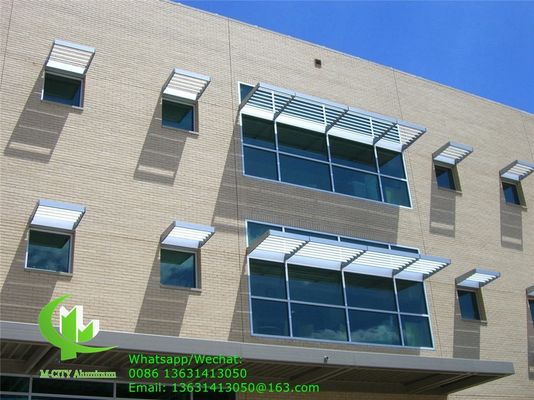

150mm Horizontal Fixed Sun Louver - Architectural Aerofoil Profile Aluminum Louver for Window Sunshade

M-CITY's 150mm Horizontal Fixed Sun Louver features a powder-coated architectural aerofoil profile aluminum design with an oval shape, specifically engineered for window sunshade applications.

M-CITY Aerofoil/Airfoil Louver Blade Series: Our aerofoil louvers are manufactured from high-quality aluminum extrusion profiles (6063-T5/T6), primarily featuring elliptical shapes. These architectural elements effectively deflect thermal gain from direct sunlight while integrating sophisticated light control into the building envelope. Beyond their exceptional functionality, these louvers enable architects to create distinctive visual statements for building surfaces. Well-configured louver arrangements provide striking aesthetics while effectively shading facades against various sun angles, significantly enhancing your project's energy efficiency.

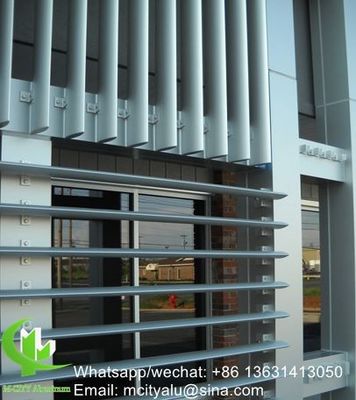

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design specifications

Available Sizes from 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths ranging from 100mm to 600mm tip to tip. Our extruded louvers offer superior durability and structural strength compared to alternative manufacturing methods. The louver shapes, composition, and finishes can be customized to create specific daylighting effects while establishing unique architectural aesthetics.

Fabricated louvers can be created at nearly any custom size
Aerofoil composition primarily uses aluminum, with options including glass and wood
Surface finishes include polyester powder coating, fluorocarbon painting (PVDF paint), and anodizing
All finishes provide excellent resistance to sun exposure and weather damage

Product Specifications

Specification	Details
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Manufacturing Capabilities

We also manufacture aluminum decorative panels (aluminum solid panels) for building facades, curtain walls, cladding, fencing, windows, screens, balconies, and various architectural applications.

We welcome your drawings and inquiries. Our team is committed to providing comprehensive support for your architectural projects.

Fence Decorative Applications

Please contact us for detailed information and project inquiries
