Powder Coated Oval Shape Aluminum Sun Louver with 6063-T5/T6 Aluminum Alloy for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

aluminum sun louver facade

aerofoil profile aluminum louver

oval shape curtain wall louver

Product Description

Aerofoil Profile Aluminum Sun Louver for Facade Curtain Wall

Powder coated architectural aerofoil profile aluminum louver with oval shape designed for facade curtain wall applications.

M-CITY Aerofoil/Airfoil Louver Blade Series

The M-CITY aerofoil (fin) louvers are manufactured from aluminum extrusion profiles (6063-T5/T6) with elliptical shapes. These louvers effectively deflect thermal gain from incident sun exposure while integrating light control into the building envelope. Beyond their outstanding functionality, they enable architects to create distinctive aesthetic statements for building surfaces. Well-designed louver configurations provide effective shading against both low and high sun angles while enhancing the building's visual appeal.

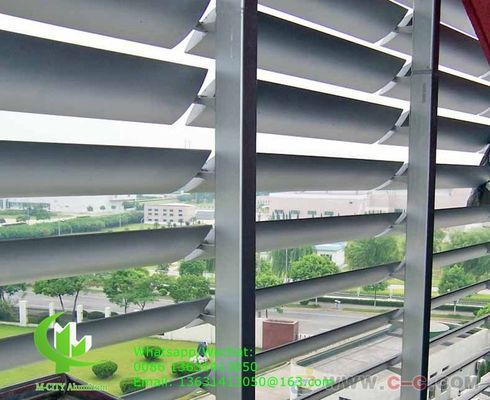

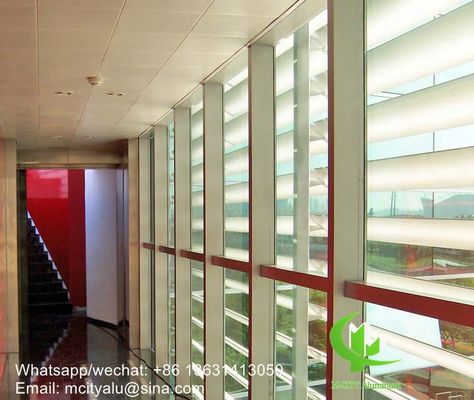

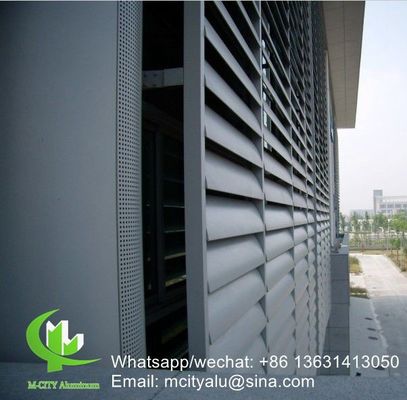

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design specifications

Available Sizes from 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths ranging from 100mm to 600mm tip to tip. The extruded construction provides enhanced durability and structural strength. Louver shapes, composition, and finishes can be customized to create specific daylighting effects and establish unique aesthetic appearances.

Fabricated louvers can be created at nearly any size requirement
Aerofoil composition is typically aluminum, with options including glass and wood
Surface finishes include polyester powder coating, flurocarbon painting (PVDF paint), and anodizing
All finishes provide excellent resistance to sun exposure and weather conditions

Technical Specifications

Parameter	Specification
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, flurocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Aluminum Products

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

For Fence Decorative Applications

Welcome to send us your drawings and inquiries. We will provide our best support for your project requirements.
