150mm Horizontal Fixed Powder Coated Aluminum Aerofoil Louver for Window Sunshade

Brand Name:	M-CITY
Model Number:	MCT-AF150
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

150mm horizontal aluminum sun louver

fixed architectural aerofoil louver

window sunshade aluminum louver

Product Description

150mm Horizontal Fixed Sun Louver - Architectural Aerofoil Profile Aluminum Window Sunshade

M-CITY's 150mm Horizontal Fixed Sun Louver features a powder-coated architectural aerofoil profile aluminum design with oval shape, specifically engineered for window sunshade applications.

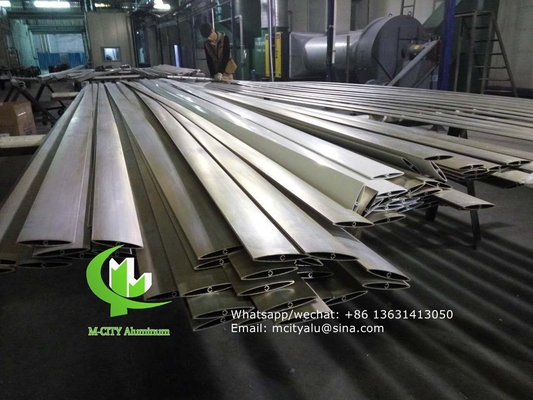

M-CITY aerofoil/airfoil louver blade series are manufactured from aluminum extrusion profiles (6063-T5/T6) with elliptical shapes. These louvers effectively deflect thermal gain from incident sunlight while integrating light control into the building envelope. Beyond their outstanding functionality, they help architects create distinctive building surface aesthetics. Well-designed louver configurations provide effective shading against both low and high sun angles while making a strong architectural statement.

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description

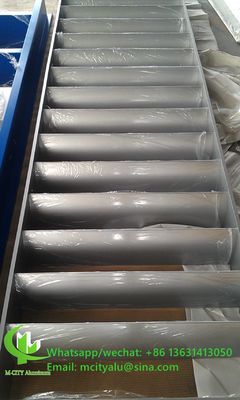

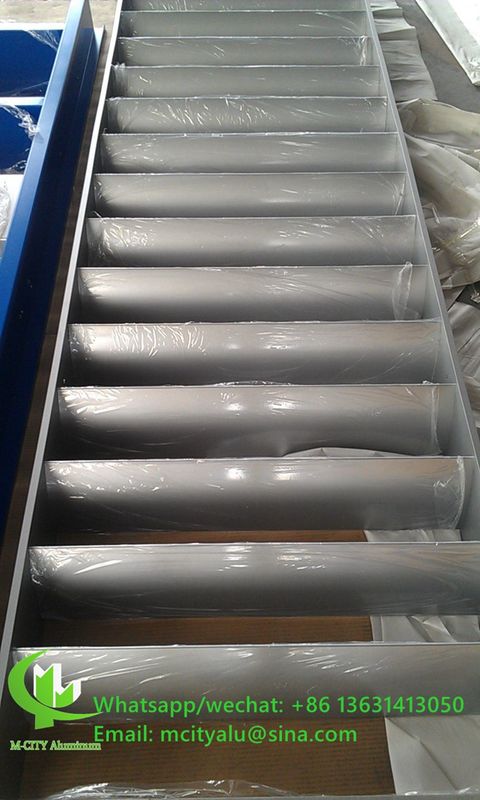

A	Fix to the support frame with screw

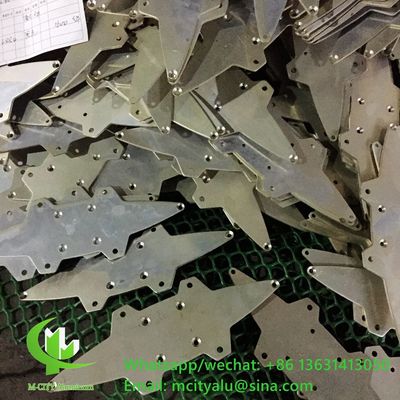

B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes from 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths ranging from 100mm to 600mm tip to tip. The extruded construction provides enhanced durability and strength. Louver shapes, composition, and finishes can be customized to create specific daylighting effects and establish unique aesthetic appearances.

Fabricated louvers can be created at nearly any size
Aerofoil composition is typically aluminum, with options including glass and wood
Metal louvers feature finishes including polyester powder coating, fluorocarbon painting (PVDF paint), and anodizing
All finishes provide excellent resistance to sun and weather damage

Technical Specifications

Parameter	Specification
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.
