Horizontal Fixed Powder Coated Oval Shape Aluminum Aerofoil Sun Louver for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

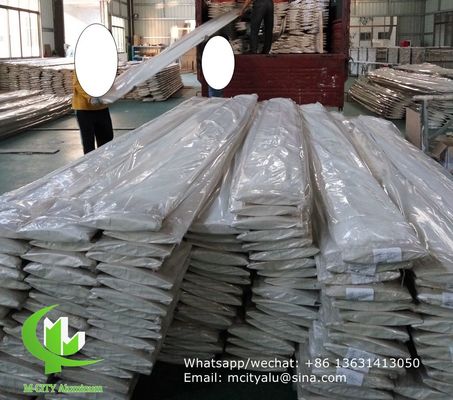

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

Horizontal fixed aluminum sun louver

Oval shape architectural aerofoil louver

Facade curtain wall aluminum louver

Product Description

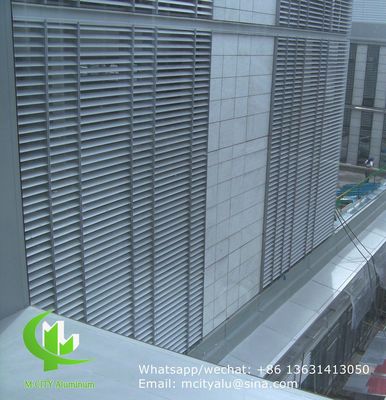

Horizontal Fixed Sun Louver - Architectural Aerofoil Profile

M-CITY's horizontal fixed sun louver system features powder-coated architectural aerofoil profile aluminum louvers with oval shapes designed specifically for facade curtain wall applications.

Aerofoil Louver System Features

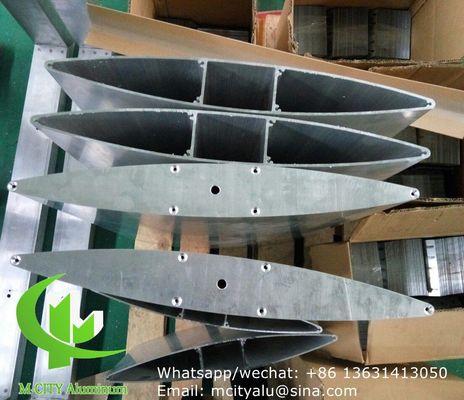

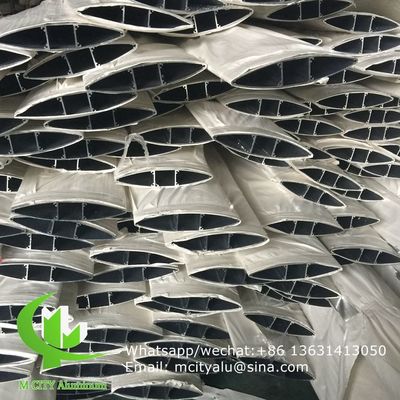

The M-CITY aerofoil/airfoil louver series utilizes aluminum extrusion profiles (6063-T5/T6) in elliptical shapes. These louvers effectively deflect thermal gain from incident sunlight while integrating light control into the building envelope. Beyond their functional benefits, they enable architects to create distinctive aesthetic statements through well-designed configurations that shade facades against various sun angles.

Vertical Louver System Project Example

Installation Methods

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes

Width sizes from 100mm to 600mm are available, with extruded louvers offering enhanced durability and strength.

Extruded louvers provide superior durability and strength. Louver shapes, composition, and finishes can create specific daylighting effects while establishing unique aesthetics. Fabricated louvers can be created at nearly any size, with composition options including metal (aluminum), glass, and wood.

Product Specifications

Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm-7000mm
Thickness	From 1.0mm-3.0mm
Surface finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Manufacturing Capabilities

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Fence Decorative Applications

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.
