400mm Powder Coated Aluminum Aerofoil Louver with Elliptical Shape for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

400mm aluminum aerofoil louver blade

elliptical facade curtain wall louver

architectural sun louver with warranty

Product Description

Fixed Louver 400mm Architectural Aluminum Aerofoil Louver Blade

Elliptical shaped aluminum louver blade designed for facade curtain wall applications, featuring powder coated architectural aluminum construction.

M-CITY Aerofoil/Airfoil Louver blade series are based on aluminum extrusion profiles (6063-T5/T6) with elliptical shapes. These louvers deflect thermal gain from incident sun while integrating light control into the building envelope. They deliver outstanding functionality while helping architects create distinctive building surface aesthetics.

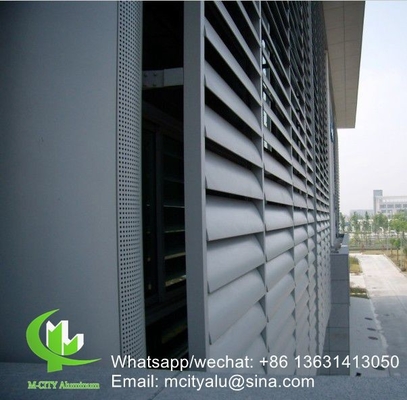

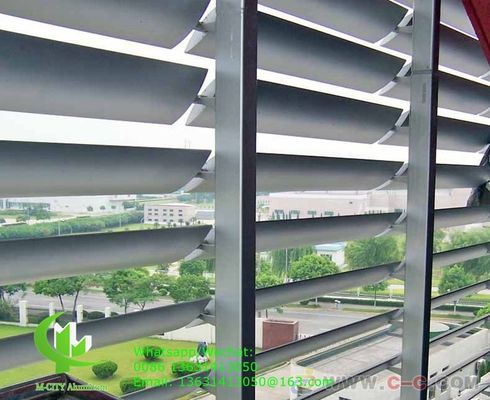

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame

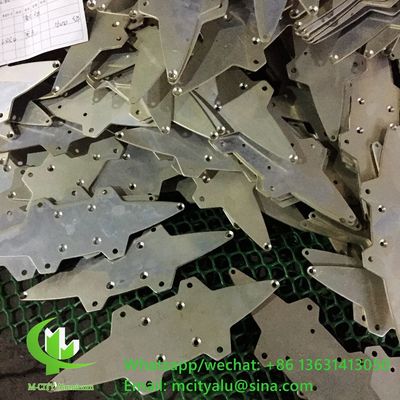

C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes from 100mm to 600mm

M-CITY aerofoil louvers blade width ranges from 100mm to 600mm tip to tip. Extruded louvers offer enhanced durability and strength. Louver shapes, composition, and finishes can create specific daylighting effects while establishing unique aesthetics.

Product Specifications

Materials:	Aluminum extrusion (6063-T5/T6)
Size/Width:	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length:	From 1000mm-7000mm
Thickness:	From 1.0mm-3.0mm
Surface finish:	Powder coated, flurocarbon paint, Anodized
Color:	Any RAL colors and wooden grain colors available
Coating:	Akzo Nobel, PPG, etc.
Applications:	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony, etc. Welcome to send us drawings and inquiries - we will try our best to support your project.
