150mm Oval Shape Powder Coated Architectural Aluminum Aerofoil Louver Blade for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF200
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

150mm aluminum aerofoil louver

oval architectural sun louver

facade curtain wall aerofoil

Product Description

150mm Architectural Aluminum Aerofoil Louver with Oval Shape for Facade Curtain Wall

250mm Powder Coated Architectural Aluminum Aerofoil Louver Profile

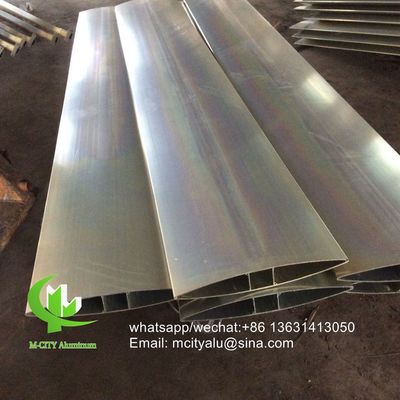

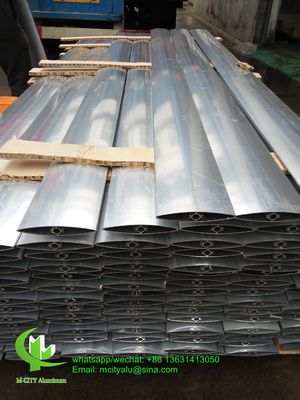

M-CITY Aerofoil/Airfoil Louver blade series are based on Aluminum extrusion profile (6063-T5/T6) with elliptical shape. These architectural louvers effectively deflect thermal gain from incident sun while integrating light control into the building envelope. They deliver outstanding functionality while helping architects create a distinctive aesthetic for building surfaces.

Well-designed louver configurations provide effective shading against low or high sun angles while making an aesthetic statement. Design considerations such as louver size and composition significantly affect performance, helping improve the energy efficiency of your projects.

Vertical Louver Aerofoil System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes from 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths from 100mm to 600mm tip to tip. Extruded louvers offer enhanced durability and strength. Louver shapes, composition, and finishes can be customized to create specific daylighting effects and establish unique aesthetics.

Fabricated louvers can be created at nearly any size
Aerofoil composition is typically aluminum, with options including glass and wood
Metal louvers feature finishes including polyester powder coating, fluorocarbon painting (PVDF paint), and anodizing
All finishes resist damage from sun exposure and weather conditions

Product Specifications

Specification	Details
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Manufacturing Capabilities

We also manufacture aluminum decorative panels (aluminum solid panels) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries. We will try our best to support your project requirements.

Fence Decorative Applications
