Vertical Powder Coated Oval Shape Aluminum Aerofoil Louver for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

oval aluminum aerofoil louver

vertical architectural louver facade

aluminum sun louver curtain wall

Product Description

Vertical Architectural Aerofoil Aluminum Louver System

M-CITY Aerofoil/Airfoil Louver blade series feature elliptical-shaped aluminum extrusion profiles (6063-T5/T6) designed for facade curtain wall applications. These vertical louvers effectively deflect thermal gain from incident sunlight while integrating light control into the building envelope.

Well-designed louver configurations provide both outstanding functionality and distinctive architectural aesthetics. The systems shade building facades against low or high sun angles while making a striking visual statement, helping improve energy efficiency in commercial projects.

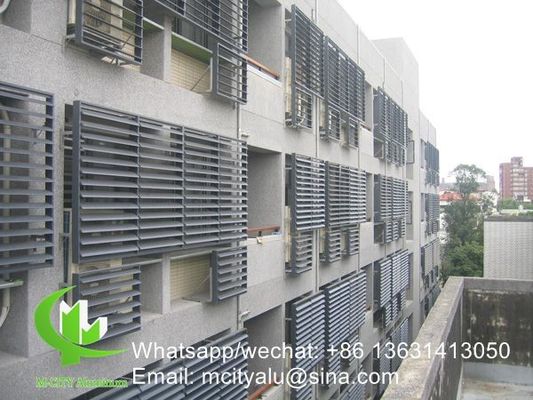

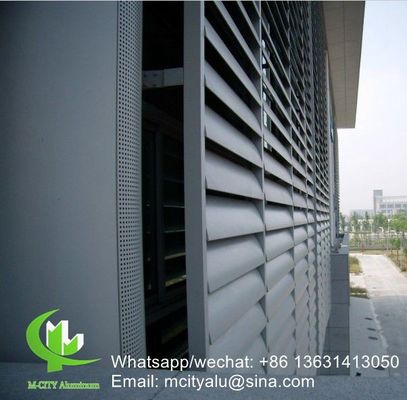

Project Reference: Vertical Aerofoil System in Hong Kong

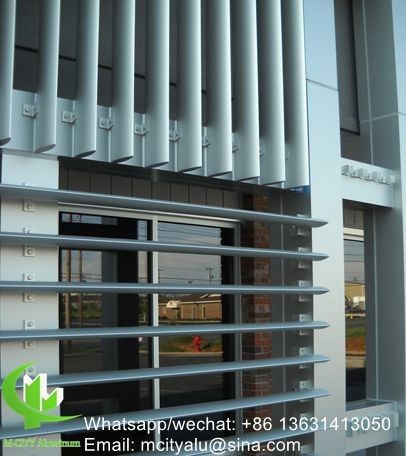

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame
C	Using the endcaps to fix on two ends
D	As per architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths from 100mm to 600mm tip to tip. The extruded aluminum construction provides enhanced durability and strength compared to fabricated alternatives.

Technical Specifications

Materials:	Aluminum extrusion (6063-T5/T6)
Size/Width:	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length:	From 1000mm-7000mm
Thickness:	From 1.0mm-3.0mm
Surface finish:	Powder coated, flurocarbon paint, Anodized
Color:	Any RAL colors and wooden grain colors available
Coating:	Akzo Nobel, PPG, etc.
Applications:	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.
