100mm 6063-T5/T6 Aluminum Aerofoil Louver with Powder Coated Finish for Building Facade

Brand Name:	M-CITY
Model Number:	MCT-AF100
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Material:

Aluminum 6063-T5/T6

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder, Coated, PVDF Paint, Anodized

Color:

Any Ral Colors, Wood Grain, Ston Color

Thickness:

1.0-3.0mm

Coating:

Akzo Nobel, PPG.etc

Contact Email:

Mcityalu@sina.com

Type:

Horizontal. Vertical

System:

Fixed

Application:

Facade, Cladding, Window, Fence

Keywords:

Aerofoil Louver

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

aluminium louvres for building decoration

100mm aluminium sun louver

architect-designed aluminium aerofoil louvres

Product Description

Aerofoil Aluminum Louvers for Building Decoration

100mm Width Aluminum Louver Blades

M-CITY Aerofoil/Airfoil Louver Blade Series

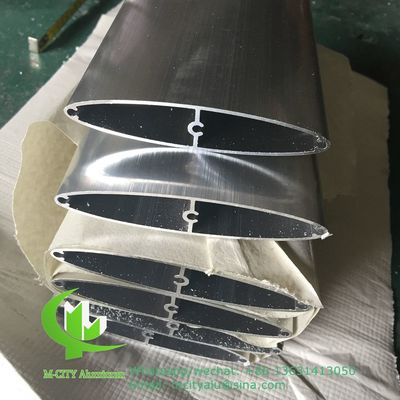

The M-CITY aerofoil louvers are precision-engineered aluminum extrusion profiles (6063-T5/T6) featuring elliptical shapes. These architectural louvers effectively deflect thermal gain from incident sunlight while integrating sophisticated light control into the building envelope. Beyond their exceptional functionality, they enable architects to create distinctive visual statements for building surfaces.

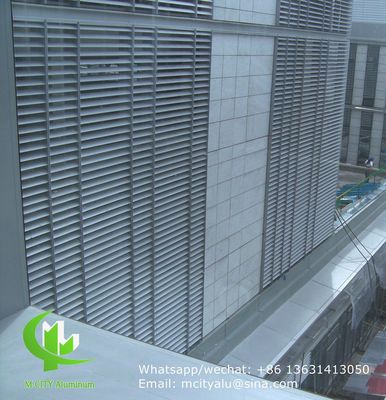

Well-designed louver configurations provide striking aesthetics while effectively shading facades against both low and high sun angles. These systems significantly improve the energy efficiency of your architectural projects.

Product Specifications & Capabilities

Louver blade width range: 100mm to 600mm (tip to tip)
Extruded aluminum construction for enhanced durability and strength
Customizable shapes, compositions, and finishes for specific daylighting effects
Fabrication available in nearly any size requirement
Primary material: Aluminum with optional glass and wood elements
Surface finishes: Polyester powder coating, fluorocarbon painting (PVDF), and anodized treatments
All finishes provide excellent resistance to sun exposure and weather conditions

Installation Methods

A: Direct fixation to support frame with screws

B: Bracket and screw attachment to support frame

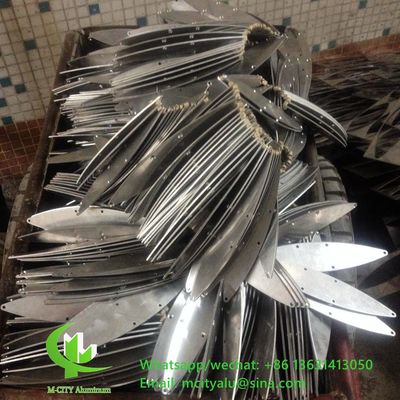

C: Endcap fixation on both ends

D: Custom installation as per architect's design specifications

Technical Specifications

Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Manufacturing Capabilities

We also manufacture aluminum panels for various applications including decorative facade panels, curtain wall cladding, fencing, and screening systems. Please share your drawings or project inquiries – we are committed to supporting your architectural vision.
