Powder Coated Oval Shape Architectural Aerofoil Louver in 6063-T5/T6 Aluminum Alloy for Facade Curtain Wall

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Email:

Mcityalu@sina.com

Packaging Details:

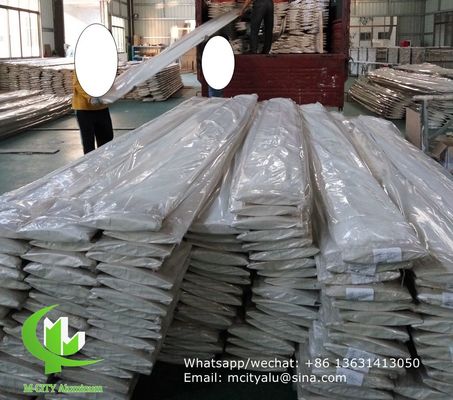

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

powder coated aluminum aerofoil louver

oval architectural facade louver

curtain wall sun louver

Product Description

Powder Coated Architectural Aerofoil Aluminum Louver

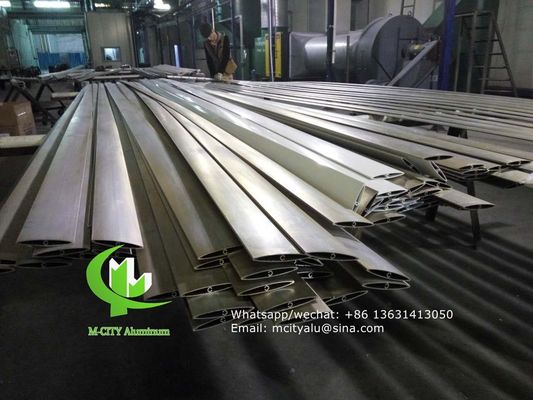

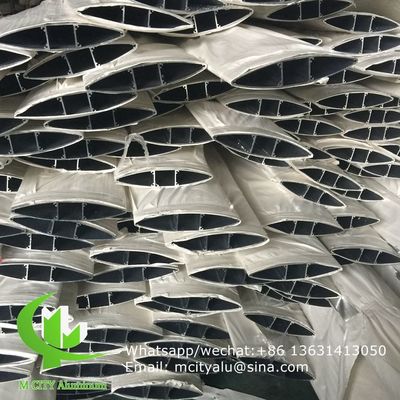

M-CITY Aerofoil/Airfoil Louver blade series feature elliptical aluminum extrusion profiles (6063-T5/T6) designed to deflect thermal gain from incident sun while integrating light control into building envelopes. These louvers deliver outstanding functionality while enabling architects to create distinctive building surface aesthetics.

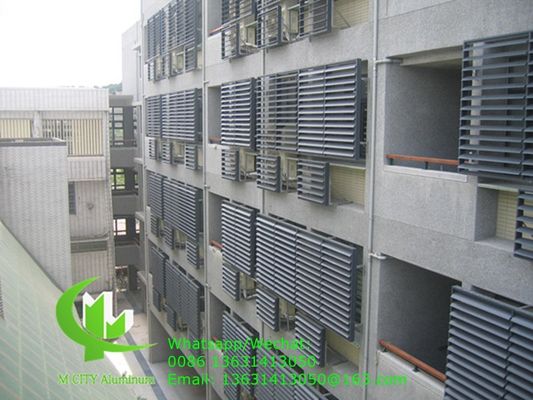

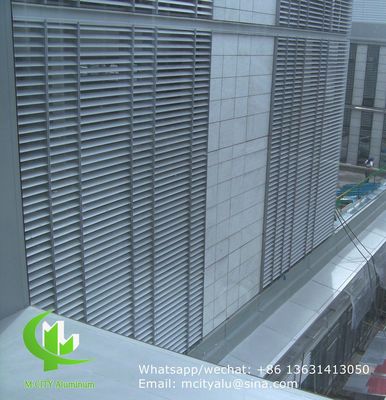

Vertical Aerofoil Louver System Project in Hong Kong

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using bracket and screw to the support frame

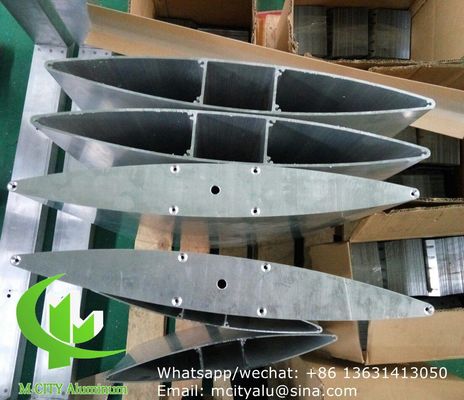

C	Using the endcaps to fix on two ends
D	As per architect's design

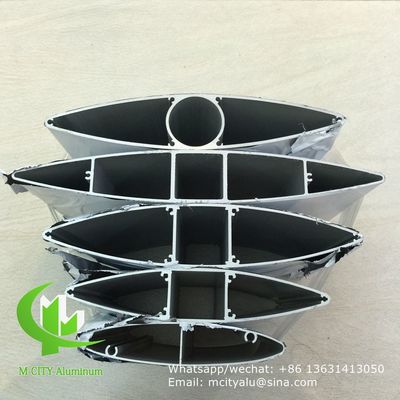

Available Sizes from 100mm to 600mm

M-CITY aerofoil louvers feature blade widths from 100mm to 600mm tip to tip. Extruded aluminum construction provides enhanced durability and strength. Louver shapes, composition, and finishes can create specific daylighting effects while establishing unique architectural aesthetics.

Product Specifications

Material	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

Additional Aluminum Products

We also manufacture aluminum decorative panels (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project.
