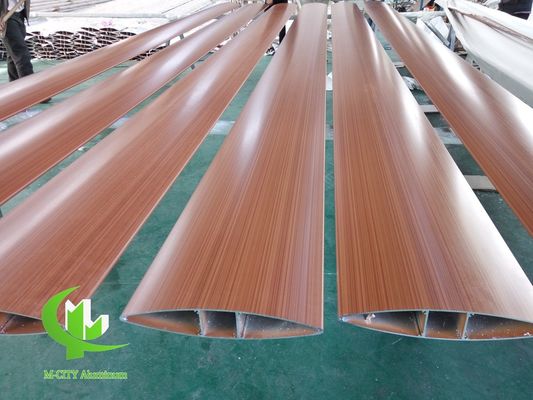

300mm Width Oval Shape Wood Grain Color Aluminium Louver Aerofoil System for Facade and Window

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

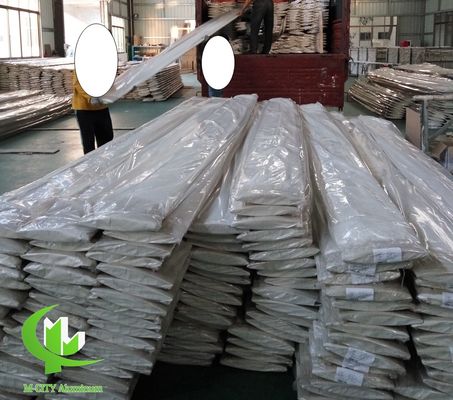

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

aluminum aerofoil sun louver

powder coated aluminum louver

wood grain aerofoil louver

Product Description

Aluminium Aerofoil Louver Systems

China-based supplier of oval-shaped powder coated aluminium louver systems with 300mm width and wood grain color options.

PVDF Architectural Aerofoil Fins Aluminum Louver

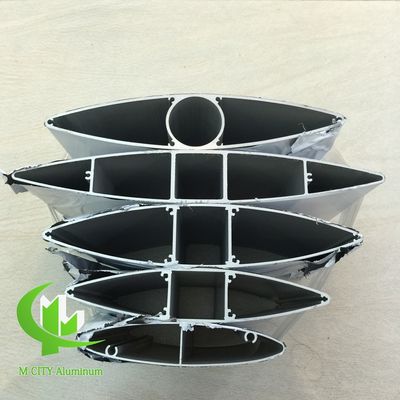

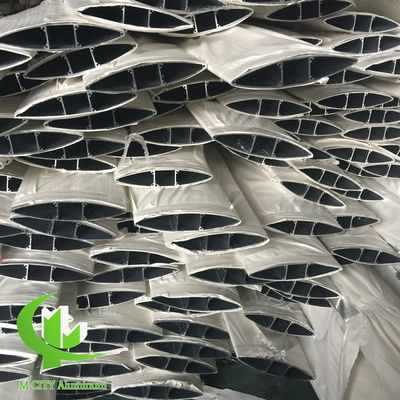

M-CITY aerofoil (airfoil) louver systems feature elliptical aluminum extrusion profiles (6063-T5/T6) that effectively deflect thermal gain from sun exposure while integrating light control into building envelopes. These louvers deliver exceptional functionality while enabling architects to create distinctive building aesthetics.

Well-configured louver systems provide striking visual impact while effectively shading building facades against various sun angles. Design considerations including louver size and composition significantly impact performance, helping improve energy efficiency in architectural projects.

Project Applications

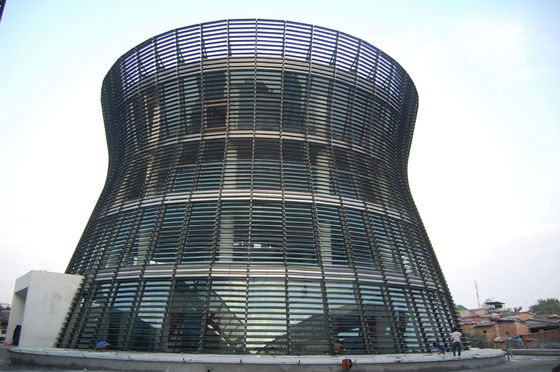

Vertical louver aerofoil system installation in Hong Kong:

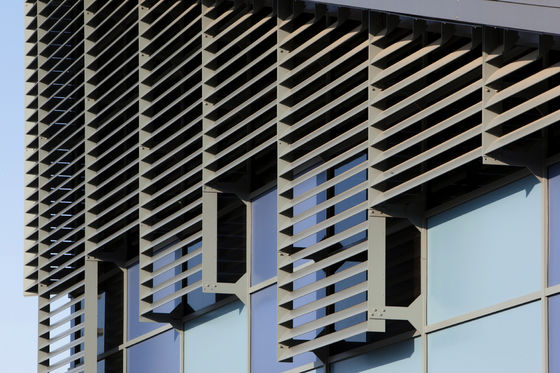

Horizontal aluminium louver aerofoil system implementation:

Installation Methods

Method	Description
A	Fix to support frame with screws
B	Using bracket and screws to mount to support frame
C	Using endcaps to fix on two ends
D	Custom installation as per architect's design

Available Sizes: 100mm to 600mm

M-CITY aerofoil louvers are available in blade widths from 100mm to 600mm tip to tip. Extruded aluminum construction ensures superior durability and strength. Various louver shapes, compositions, and finishes can create specific daylighting effects while establishing unique architectural aesthetics.

Technical Specifications

Parameter	Specification
Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, anodized
Color Options	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial buildings, schools, metro stations, railway stations, offices, residential buildings

Additional Aluminum Products

We also manufacture aluminum decorative panels (aluminum solid panels) for building facades, curtain walls, cladding, fences, windows, screens, balconies, and other architectural applications.

Fence decorative applications:

We welcome your drawings and inquiries. Our team is committed to providing comprehensive support for your architectural projects.
