6063-T5/T6 Aluminum Aerofoil Louver with PVDF Paint Finish in 100mm-600mm Width for Facade and Window Shading

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Material:

Aluminum 6063-T5/T6

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder, Coated, PVDF Paint, Anodized

Color:

Any Ral Colors, Wood Grain, Ston Color

Thickness:

1.0-3.0mm

Coating:

Akzo Nobel, PPG.etc

Contact Email:

Mcityalu@sina.com

Type:

Horizontal. Vertical

System:

Fixed

Application:

Facade, Cladding, Window, Fence

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

aluminum extruded louver profile

aerofoil fins hunter douglas system

aluminum aerofoil sun louver

Product Description

Foshan Aluminum Extruded Louver Profile - Aerofoil Fins Hunter Douglas System

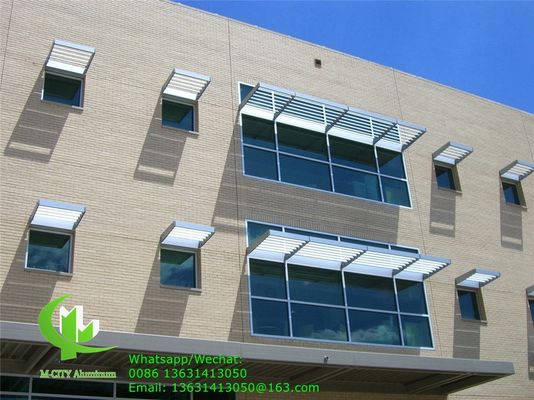

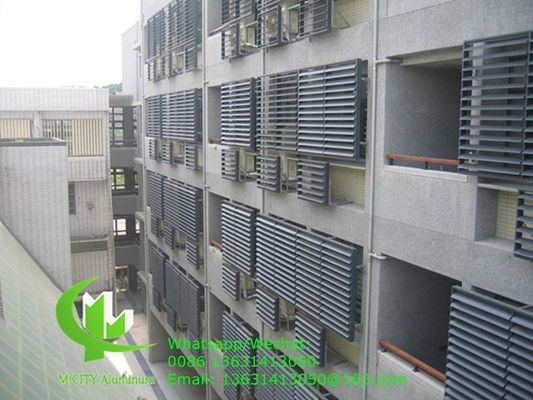

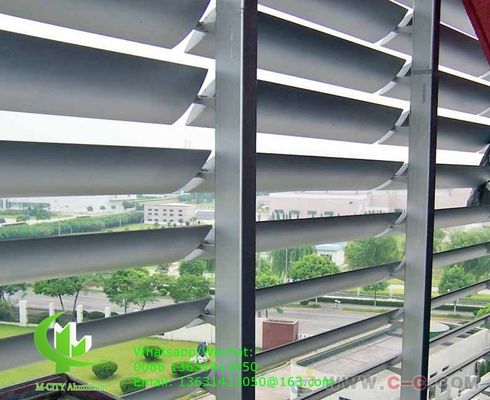

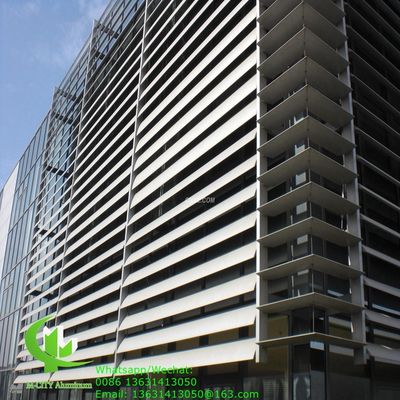

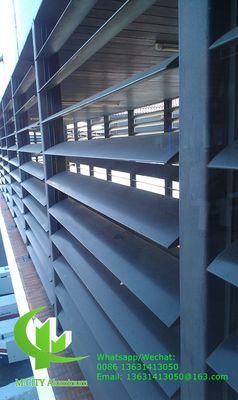

The M-CITY aerofoil (fin) louvers are precision-engineered aluminum extrusion profiles (6063-T5/T6) featuring elliptical shapes that effectively deflect thermal gain from incident sunlight while integrating sophisticated light control into building envelopes.

These advanced louver systems not only deliver outstanding functionality but also enable architects to create distinctive aesthetic statements for building surfaces. Well-designed louver configurations provide effective shading against both low and high sun angles while making striking visual impacts.

Product Specifications & Features

M-CITY aerofoil louvers are available in blade widths ranging from 100 mm to 600 mm tip to tip. The extruded aluminum construction ensures superior durability and structural strength.

Enhanced energy efficiency for building projects
Customizable louver shapes and compositions for specific daylighting effects
Fabrication available in virtually any size requirement
Primary material: Aluminum with options including glass and wood
Durable finishes: Polyester powder coating, fluorocarbon painting (PVDF), and anodized treatments
All finishes provide excellent resistance to sun exposure and weather conditions

Installation Methods

A: Direct fixation to support frame with screws

B: Using brackets and screws to secure to support frame

C: Endcap fixation on both ends

D: Custom installation as per architect's design specifications

Technical Specifications

Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum panels for various applications including decorative panels for facades, curtain wall cladding, fencing, screening, and more. Please share your drawings or project inquiries - we are committed to supporting your architectural vision.
