6063-T5/T6 Aluminum Aerofoil Louver with PVDF Finish in 100mm-600mm Width for Sun Shading

Brand Name:	M-CITY
Model Number:	MCT-AF200
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Material:

Aluminum 6063-T5/T6

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder, Coated, PVDF Paint, Anodized

Color:

Any Ral Colors, Wood Grain, Ston Color

Thickness:

1.0-3.0mm

Coating:

Akzo Nobel, PPG

Contact Email:

Mcityalu@sina.com

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

aluminum extruded louver profile

aerofoil louver pvdf finish

grey aluminum sun louver

Product Description

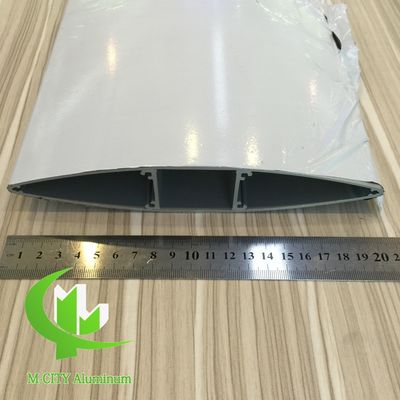

Aerofoil Aluminum Extruded Louver Profile with PVDF Finish

M-CITY Aerofoil/Airfoil Louver blade series are precision-engineered aluminum extrusion profiles (6063-T5/T6) designed for optimal building performance and aesthetic appeal.

Product Overview

These elliptical-shaped aluminum profiles effectively deflect thermal gain from incident sunlight while integrating sophisticated light control into the building envelope. Beyond their outstanding functionality, these louvers enable architects to create distinctive visual statements for building surfaces.

Key Features

Blade width range: 100mm to 600mm tip to tip
Extruded construction for enhanced durability and strength
Customizable shapes, composition, and finishes for specific daylighting effects
Fabricated to nearly any size requirement
Improves project energy efficiency

Available Finishes

M-CITY metal louvers offer multiple finish options including polyester powder coating, fluorocarbon painting (PVDF paint), and anodized finishes. All finishes provide excellent resistance to sun exposure and weather damage.

Installation Methods

Fix directly to support frame with screws
Using brackets and screws mounted to support frame
Using endcaps to fix on two ends
Custom installation as per architect's design specifications

Technical Specifications

Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color Options	Any RAL colors and wooden grain colors available
Coating Brands	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

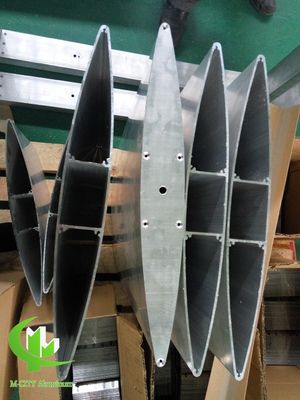

Additional Product Images
