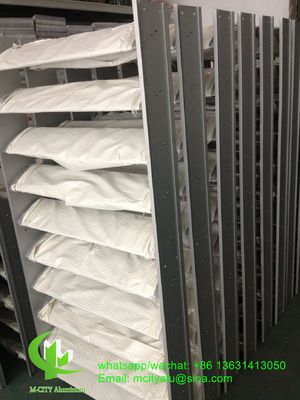

Powder Coated Architectural Aluminum Louver with Elliptical Shape for Facade Window Fixed System

Brand Name:	M-CITY
Model Number:	MCT-AF150
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Materials:

Aluminum Alloy

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder Coated, PVDF Paint, Anodized

Coating:

Akzo Nobel, PPG

Pattern:

Horizontal, Vertical

Type:

Fixed System

Color:

Any RAL Colors, Wood Grain Color, Stone Color

Accessoires:

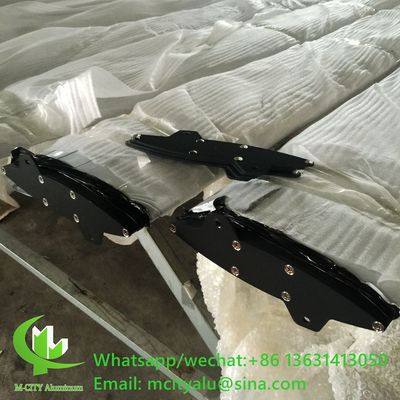

Endcaps, Support Frame

Application:

Facade, Window, Curtain Wall, Fence, Sunshade

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

elliptical aluminum louver facade

powder coated sun louver

fixed window louver system

Product Description

Powder Coated Architectural Aluminum Louver with Elliptical Shape for Facade Window Fixed System

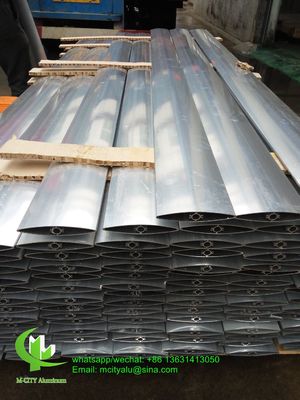

M-CITY Aerofoil/Airfoil Louver blade series feature aluminum extrusion profiles (6063-T5/T6) in elliptical shapes. These louvers effectively deflect thermal gain from incident sunlight while integrating light control into the building envelope. Beyond their outstanding functionality, they help architects create distinctive building surface aesthetics.

Well-Designed Louver Configurations

Strategic louver configurations provide effective shading against low or high sun angles while making strong aesthetic statements. Design considerations such as louver size and composition significantly impact performance, helping improve your project's energy efficiency.

Installation Methods Reference

Method	Description
A	Fix to the support frame with screw
B	Using Bracket and screw to the support frame
C	Using the Endcaps to fix on two ends
D	As per Architect's design

Product Specifications & Capabilities

M-CITY aerofoil louvers blade width: 100mm to 600mm tip to tip
Extruded aluminum construction for enhanced durability and strength
Custom louver shapes, compositions, and finishes for specific daylighting effects
Fabricated louvers available in nearly any size
Aerofoil composition primarily aluminum, with other options including glass and wood

Technical Specifications

Materials:	Aluminum extrusion (6063-T5/T6)
Size/Width:	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length:	From 1000mm-7000mm
Thickness:	From 1.0mm-3.0mm
Surface finish:	Powder coated, flurocarbon paint, Anodized
Color:	Any RAL colors and wooden grain colors available
Coating:	Akzo Nobel, PPG, etc.
Applications:	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum decorative panels (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony, and other architectural applications.

Welcome to send us drawings and inquiries - we will try our best to support your project requirements.
