Wood Grain Finish 6063-T5/T6 Aluminum Aerofoil Louver with 100mm to 600mm Width for Architectural Facades

Brand Name:	M-CITY
Model Number:	MCT-AF300
MOQ:	100square meters
Price:	USD50-150.00/sq,m
Payment Terms:	T/T, L/C
Supply Ability:	9000sq.m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO:9000

Material:

Aluminum 6063-T5/T6

Size:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface Treatment:

Powder, Coated, PVDF Paint, Anodized

Color:

Any Ral Colors, Wood Grain, Ston Color

Thickness:

1.0-3.0mm

Coating:

Akzo Nobel, PPG.etc

Contact Email:

Mcityalu@sina.com

Type:

Horizontal. Vertical

System:

Fixed

Application:

Facade, Cladding, Window, Fence

Packaging Details:

export packing, metal cases, plywood cases

Supply Ability:

9000sq.m

Highlight:

wood grain aluminum aerofoil louver

architectural aluminum extruded fins

aluminum sun louver with warranty

Product Description

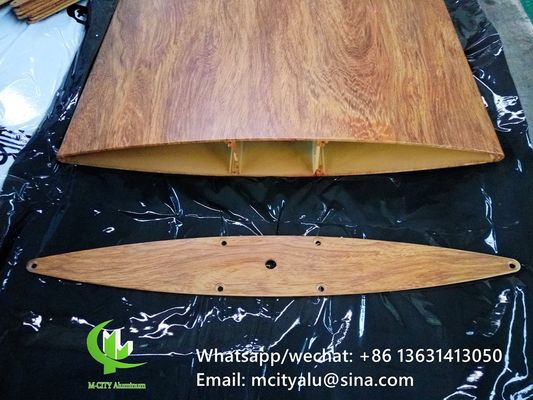

Wood Grain Building Aluminum Extruded Architectural Louver with Aerofoil Fins

M-CITY Aerofoil/Airfoil Louver Blade Series

The M-CITY aerofoil louver blades are precision-engineered aluminum extrusion profiles (6063-T5/T6) featuring elliptical shapes. These architectural louvers effectively deflect thermal gain from incident sunlight while integrating sophisticated light control into the building envelope. Beyond their exceptional functionality, they enable architects to create distinctive visual statements for building surfaces.

Well-configured louver systems provide striking aesthetic appeal while effectively shading facades against both low and high sun angles. Design considerations including louver size and composition significantly impact overall performance, contributing to improved energy efficiency for your projects.

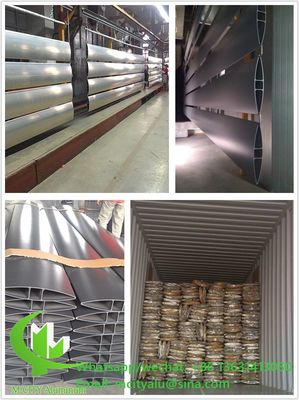

M-CITY aerofoil louvers are available in blade widths ranging from 100 mm to 600 mm tip to tip. The extruded construction ensures superior durability and structural strength. Louver shapes, compositions, and finishes can be customized to create specific daylighting effects while establishing unique aesthetic identities.

Fabricated louvers can be created at nearly any size
Aerofoil composition primarily features aluminum, with options including glass and wood
Surface finishes include polyester powder coating, fluorocarbon painting (PVDF), and anodizing
All finishes provide excellent resistance to sun exposure and weather conditions

Installation Methods

Method A: Direct fixation to support frame with screws

Method B: Using brackets and screws to support frame

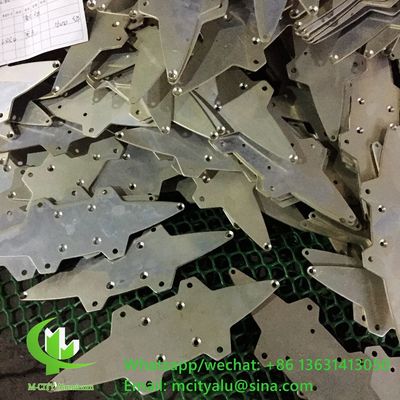

Method C: Endcap fixation on both ends

Method D: Custom installation per architect's design

Technical Specifications

Materials	Aluminum extrusion (6063-T5/T6)
Size/Width	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length	From 1000mm to 7000mm
Thickness	From 1.0mm to 3.0mm
Surface Finish	Powder coated, fluorocarbon paint, Anodized
Color	Any RAL colors and wooden grain colors available
Coating	Akzo Nobel, PPG, etc.
Applications	Commercial Building, School, Metro, Railway station, Office, Residential, etc.

We also manufacture aluminum panels for various applications including decorative facade panels, curtain wall cladding, fencing, and screening systems. Please share your drawings or project inquiries – we are committed to supporting your architectural vision.
