Solid Aluminum Wall Cladding
Created with Pixso.

Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness

Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness

Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness

Brand Name: M-CITY
Model Number: MCT- aluminum facade
MOQ: 80square meters
Price: USD25-USD55/square meter
Supply Ability: 60000sq.m
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, China
Certification:
ISO9000
Material:
Aluminum Alloy
Recommand Size:
1000x2000mm
Aluminum Thickness:
3mm,2mm, 2.5mm, 4mm To 10mm
Surface Treatment:
Powder Coated, Pvdf Paint, Wood Grain
Color:
Any RAL Color, Wood Grain, Stone Color, Brass, Bronze
Applications:
Window, Fence, Facade, Curtain Wall, Cladding, Decoration, Screen, Balcony
Max. Size:
1600x4000mm
Contact Email:
Mcityalu@163.com
Processing:
Cutting, CNC, Bending, Painting, Assmebly, Inspecting, Packing
Technology:
Perforated, Laser Cutting, CNC Turret Punching , Carved, Engraved
Keywords:
Aluminium Facade
Packaging Details:
Export packing, plywood cases, metal cases, protect film+ bubble film
Supply Ability:
60000sq.m
Highlight:

powder coated aluminum facade cladding

,

solid aluminum wall panels

,

white metal wall sheet

Product Description

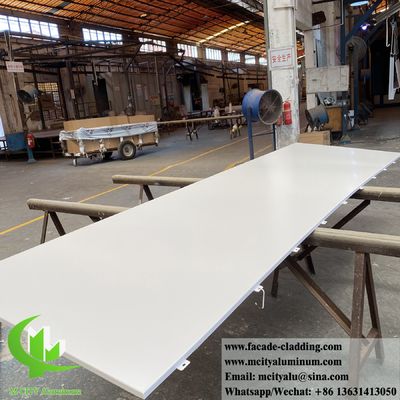

Aluminum Facade Cladding Panel - Solid Aluminum Panels with Powder Coated White Finish
Premium aluminum facade cladding panels designed for modern architectural applications. These solid aluminum panels feature a durable powder-coated white finish suitable for exterior wall cladding and building envelope systems.
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 0 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 1 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 2 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 3 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 4 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 5 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 6 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 7 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 8 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 9 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 10
3D Facade Design Metal Cladding
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 11 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 12
Perforated Aluminum Solid Panels
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 13 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 14
Aluminum Cladding Installation Guide
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 15 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 16
Corrugated Perforated Screen Aluminum Sheet
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 17
CNC Engraved Metal Facade Aluminum Sheet Assembly
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 18
Exterior Aluminum Decorative Panel with Round Holes Perforation
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 19
3D Facade Design Metal Clad Aluminum Facades Details
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 20
As a professional manufacturer, M-City Aluminum maintains an excellent design team and skilled fabrication workers with advanced CNC facilities. We produce aluminum panels according to customer requirements for dimensions, specifications, shapes, structures, colors, and competitive budgets. Our engineers can visit project sites to measure installation specifications and create shop drawings for smooth installation.
All aluminum panels are prefabricated according to customer designs and drawings. Installation requires only frame construction, bolts, and sealants to finish gaps between panels, making it an efficient solution for building envelope and decoration.
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 21
Our metal cladding panels are manufactured from high-quality, high-strength aluminum alloy sheets with common thicknesses of 1.5mm, 2.0mm, 2.5mm, and 3.0mm. Maximum sheet width is 2000mm with maximum length of 6000mm, using aluminum alloy series 3003-H14 or 1100-H14. The system consists of panel, reinforce bar, and bracket components. Corner brackets can be directly stamped from the panel or riveted onto small folding edges. Reinforce bars connect to welding screws behind the board surface, creating a solid structure that enhances strength, rigidity, flatness, and resistance to wind pressure and earthquakes. For sound insulation requirements, high-efficiency sound insulation materials can be installed inside the aluminum panel.
M-City Aluminum Manufacturing Facility
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 22
Global Shipping Capabilities
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 23
M-City Aluminum factory produces various metal facade panels with perforation designs or laser cut designs. We welcome project requirements for custom facade designs.
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 24
3D Metal Facade Wall Cladding Details
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 25
Frequently Asked Questions
Are you a trading company or factory?
We are a 100% professional manufacturer with more than 50 production machines and over 100 staff members.
Can you accept our own designs?
Yes. Size, color, patterns, and designs can be customized according to your project requirements.
What is your minimum order quantity?
We accept small orders with a minimum order quantity of 80 square meters.
What is the delivery time?
Production is completed within 30 days after receiving deposit payment.
Contact Information
WhatsApp: +86 13631413050
Email: mcityalu@sina.com
Any patterns or designs can be manufactured. You can provide drawings or pictures for customization.
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 26
M-CITY Metal Aluminum Facade Cladding Specifications
Aluminum panels are manufactured from Aluminum alloy 3003 series sheets, serving as curtain wall systems for wall protection and non-lighting walls. These panels replace traditional mosaic and sandblasting facades with superior lightweight characteristics and strength properties ideal for high-rise buildings. The aluminum panel system withstands various loads, particularly wind pressure, where traditional mosaic materials may fail due to deformation and pressure.
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 27
Aluminum hollow panels are suitable for facades, fences, canopies, ceilings, screens, windows, and various architectural applications. Choose patterns from our catalog or provide drawings/pictures for custom design development.
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 28
Advanced CNC Cutting Technology
With imported CNC cutting machines, punching machines, professional software, experienced designers, and global project experience, you can trust your projects to our capable team.
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 29 Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 30
To meet individual customer requirements, select patterns from our renderings or provide favorite patterns for customization. Our goal is to create the best custom products for each client. Aluminum hollow panel sizes can be adjusted with design element considerations, not simple scaling. Standard size is 1200x2400mm, with larger sizes requiring panel combination.
Perforated Aluminum Metal Cladding Project Reference
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 31
Fence Decoration Applications
Powder Coated Aluminum Facade Cladding Panel with Customizable RAL Colors and 3mm Thickness 32
